Component Locations

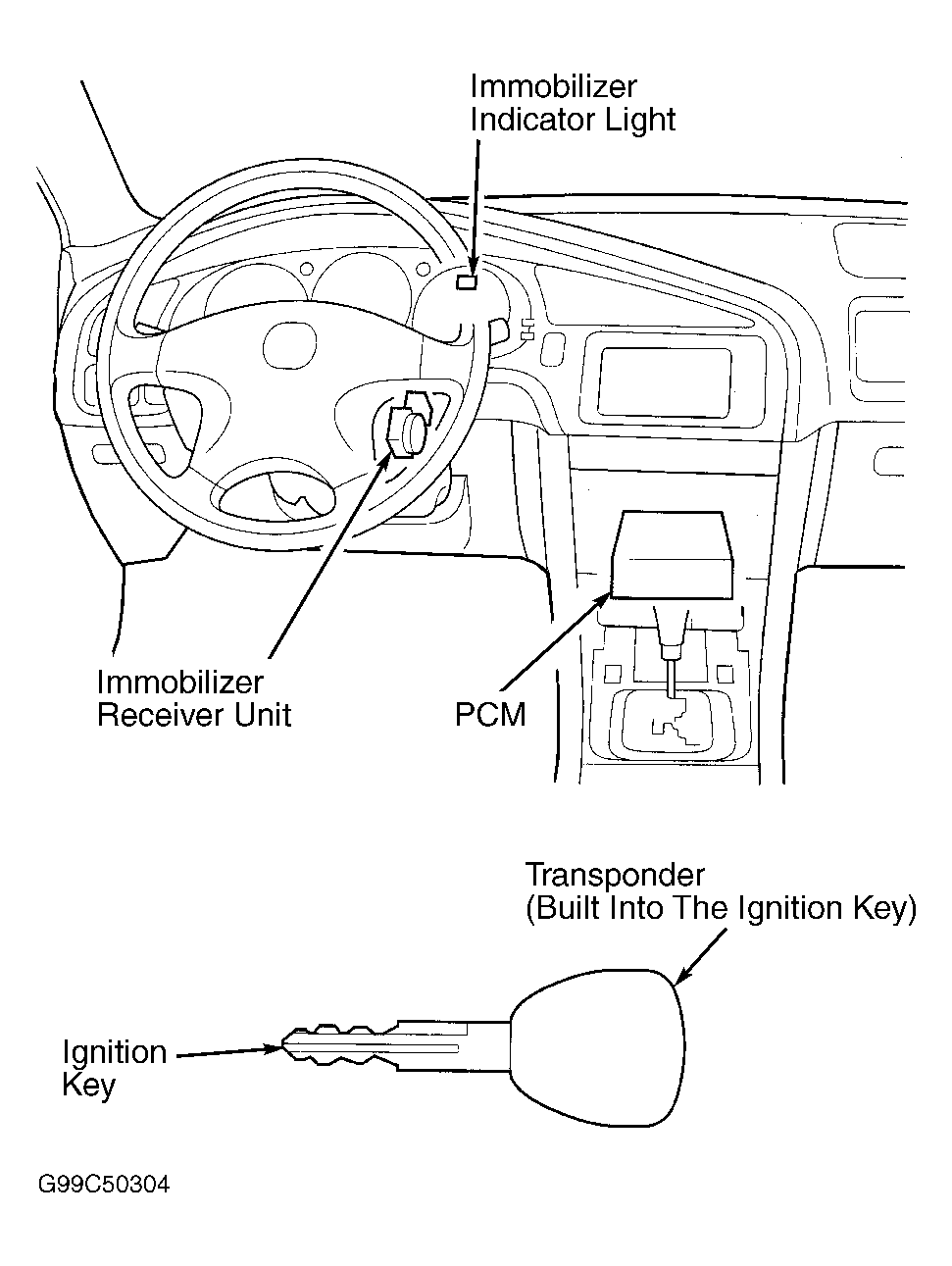

COMPONENT LOCATIONS (1)
| Component | Location | ||
|---|---|---|---|
| Immobilizer Receiver | In Steering Column, At Ignition Key Lock Switch | ||
| Immobilizer Indicator Light | Upper Right Side Of Instrument Panel | ||
| Powertrain Control Module | Center Of Dashboard, In Front Of Center Console | ||
| Transponder | Built Into Ignition Key | ||
|
|||
