M/T Model
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the front seat, dashboard and related parts.

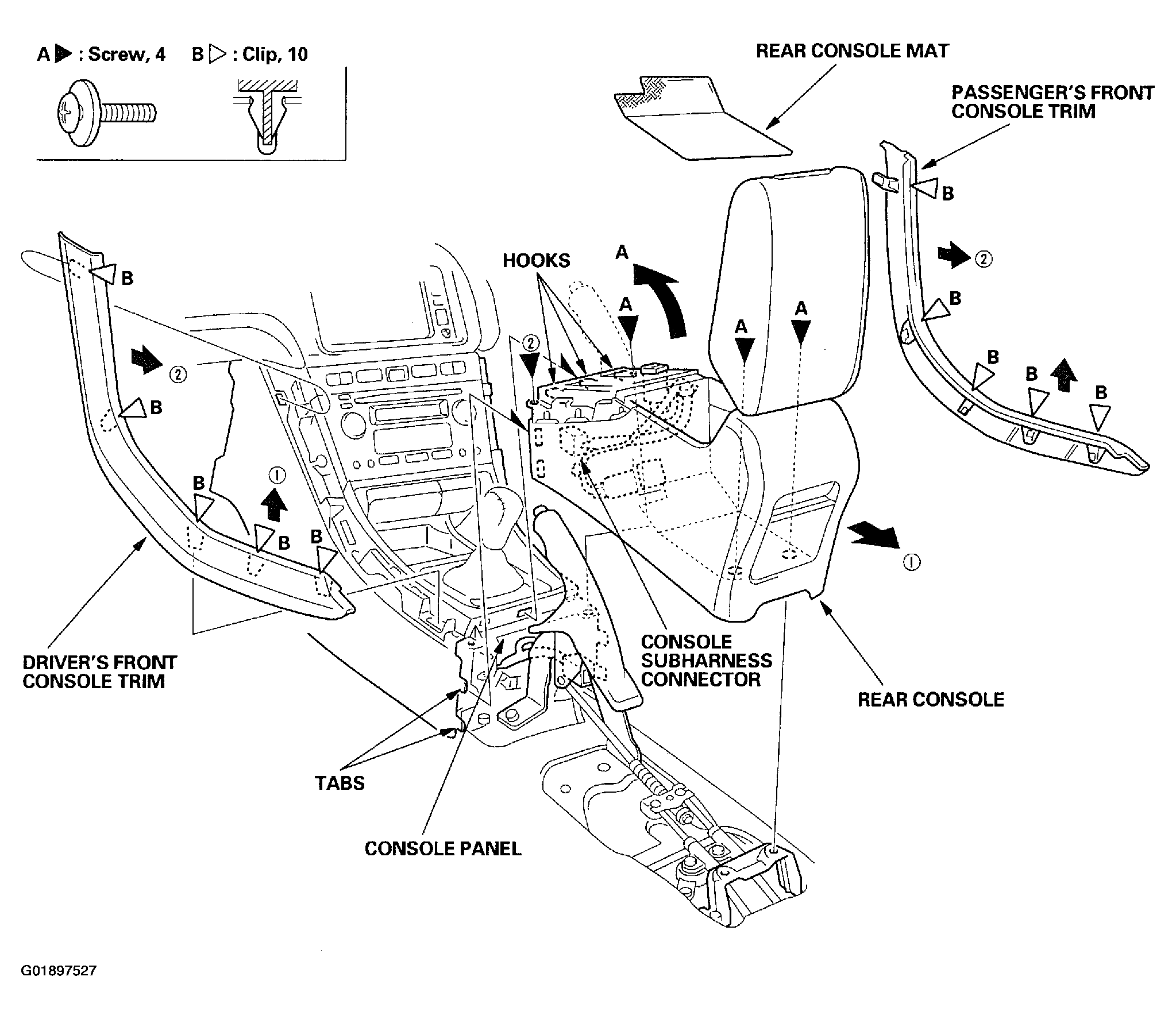

- Remove the console as shown.
- Install the console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
Fastener Locations
