Wheel Speed Sensor, Left Front Connector End View

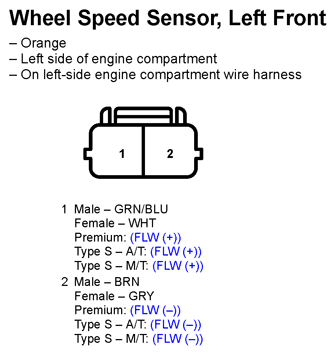

Fig 1: Wheel Speed Sensor, Left Front Connector End View
G11247188Courtesy of AMERICAN HONDA MOTOR CO., INC.
