Conventional Brake Mode
WARNING: This page is about a different variant/trim than selected.

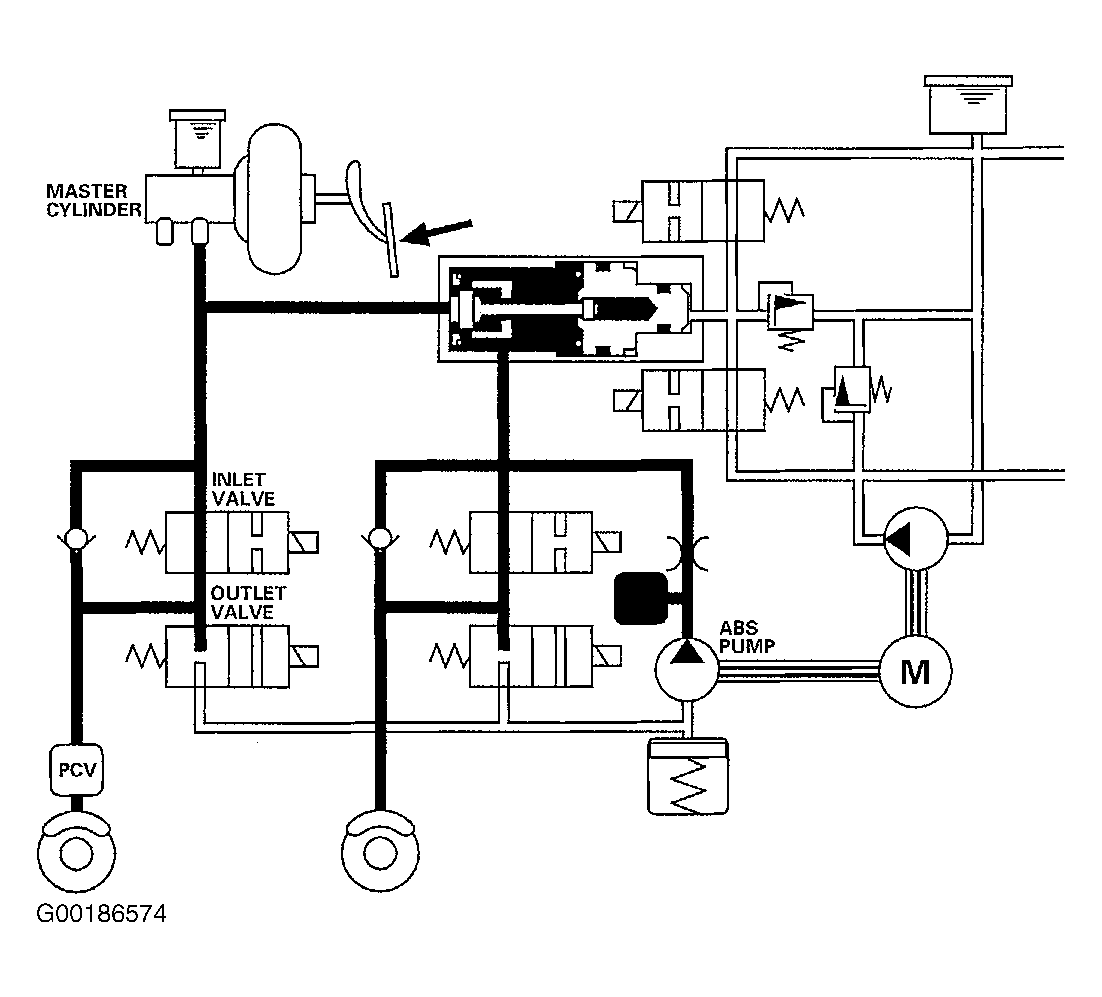

The brake fluid is provided to the brake calipers through four inlet valves. In ABS mode, the VSA control unit drives four inlet valves, four outlet valves, the ABS pump, and the pump motor the same as conventional ABS. See Fig 1 .
