Subframe: Service and Repair

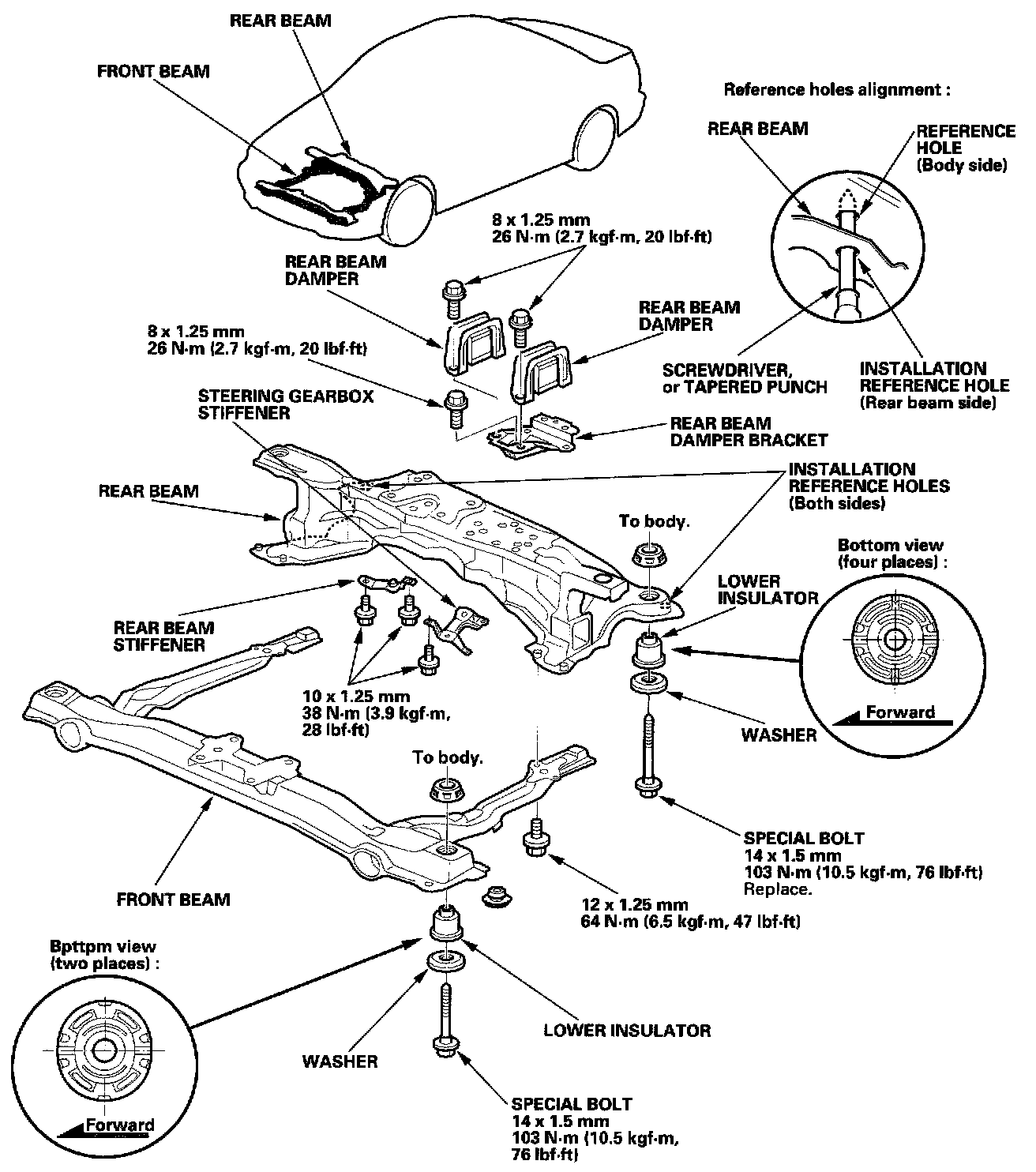

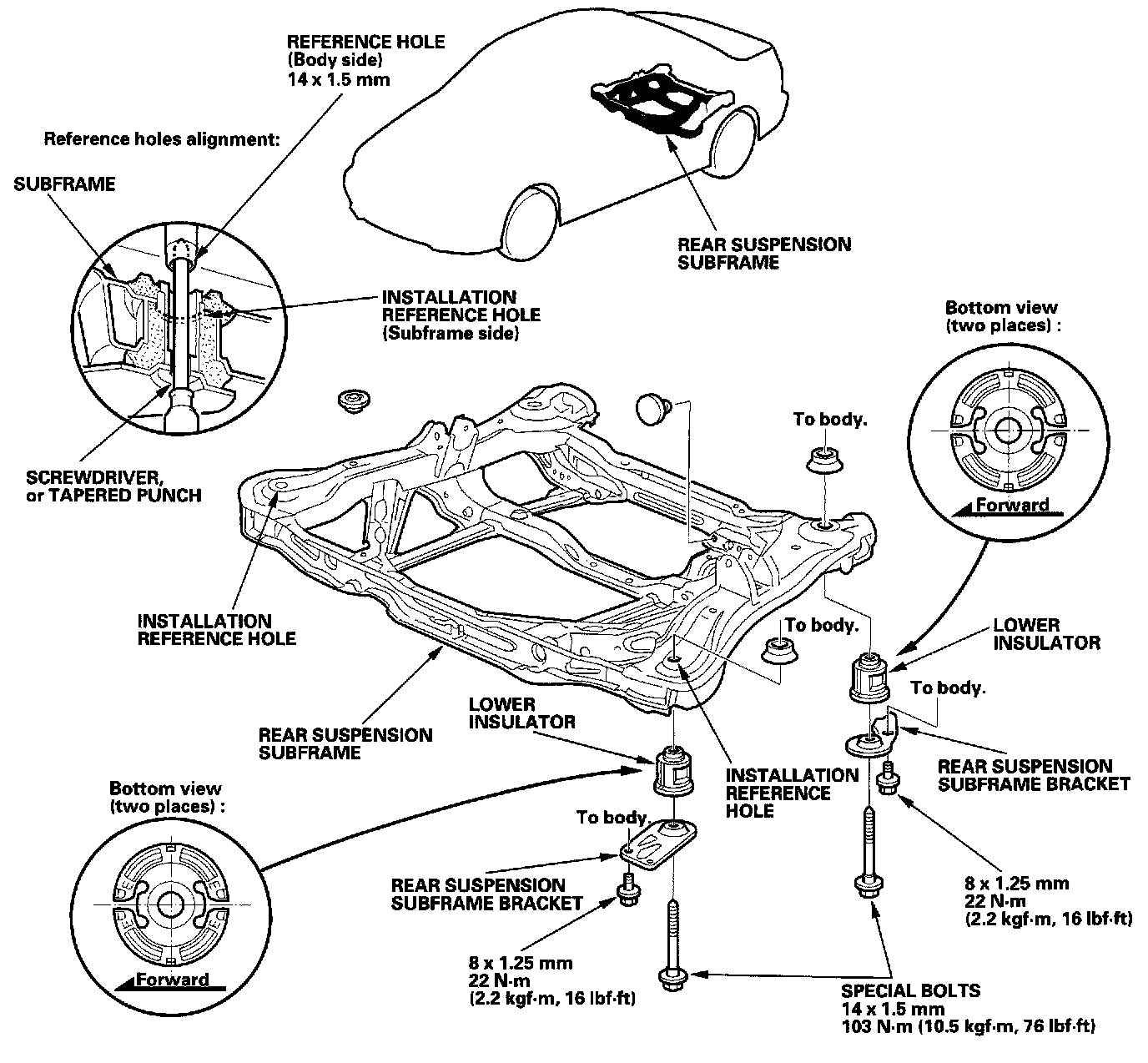

Subframe Replacement







After loosening the subframe mounting bolts, be sure to replace them with new ones.
