Engine Compartment

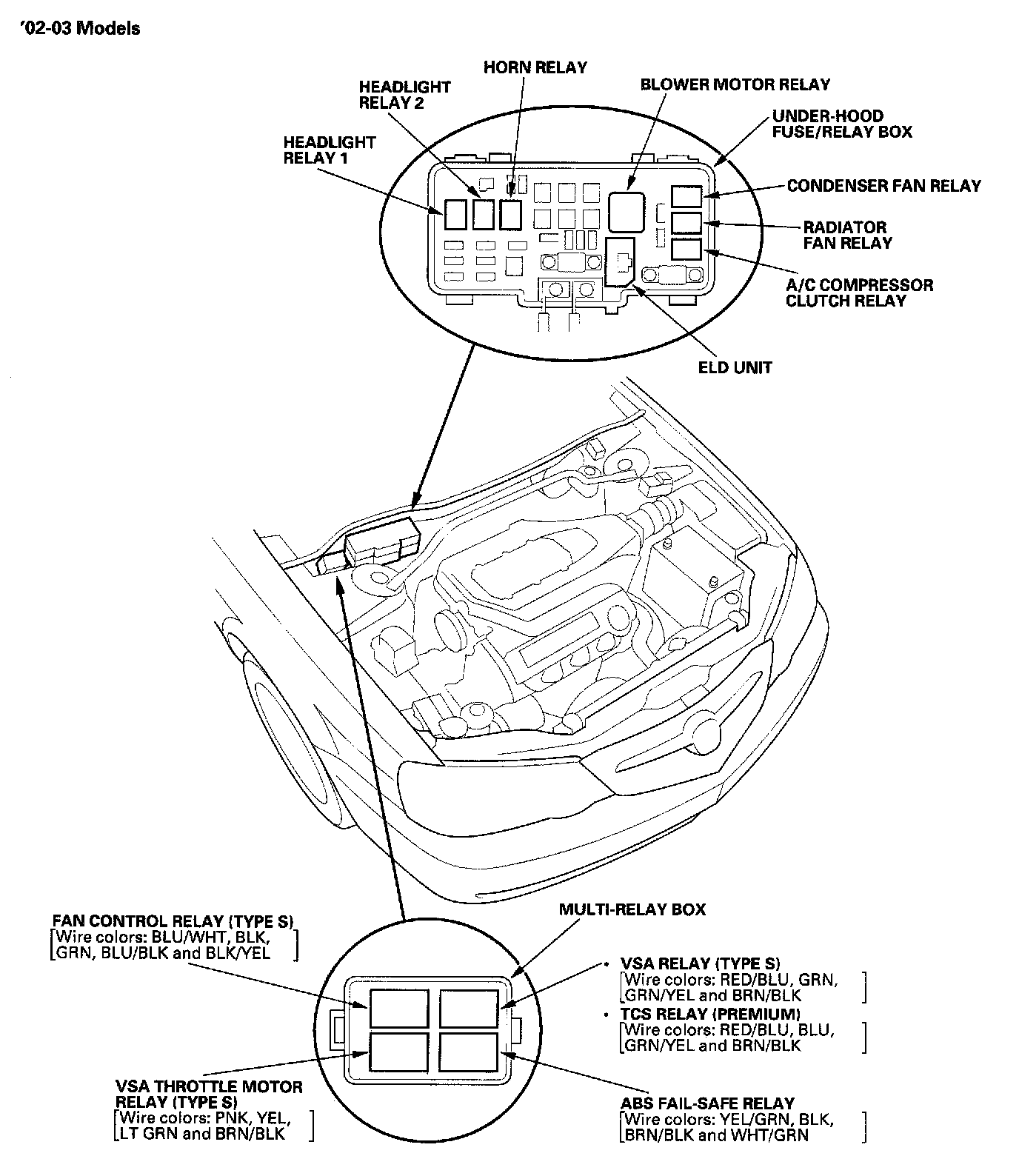

Relay And Control Unit Locations - Engine Compartment:

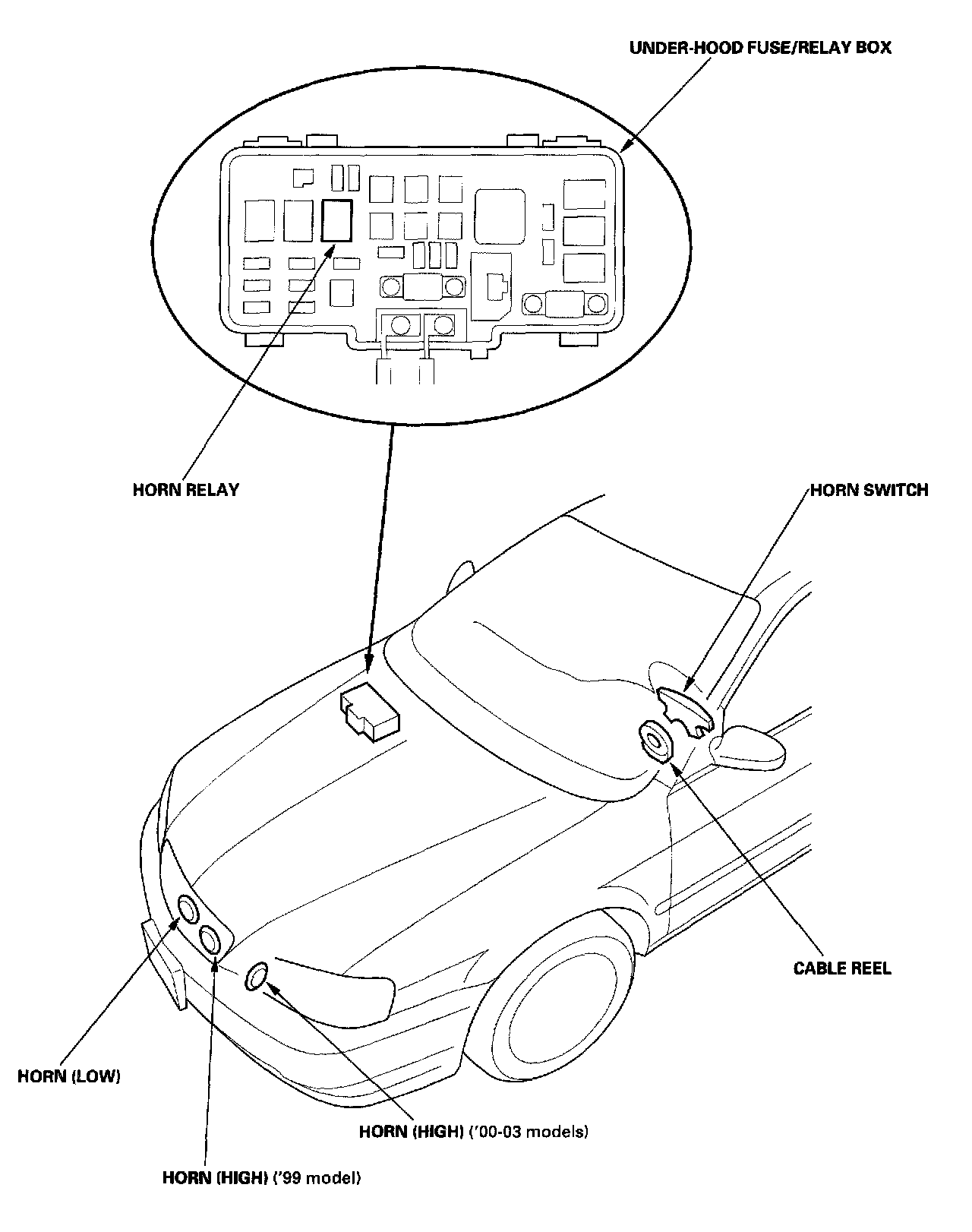

Horn - Component Location Index:
