Powertrain Management: Locations

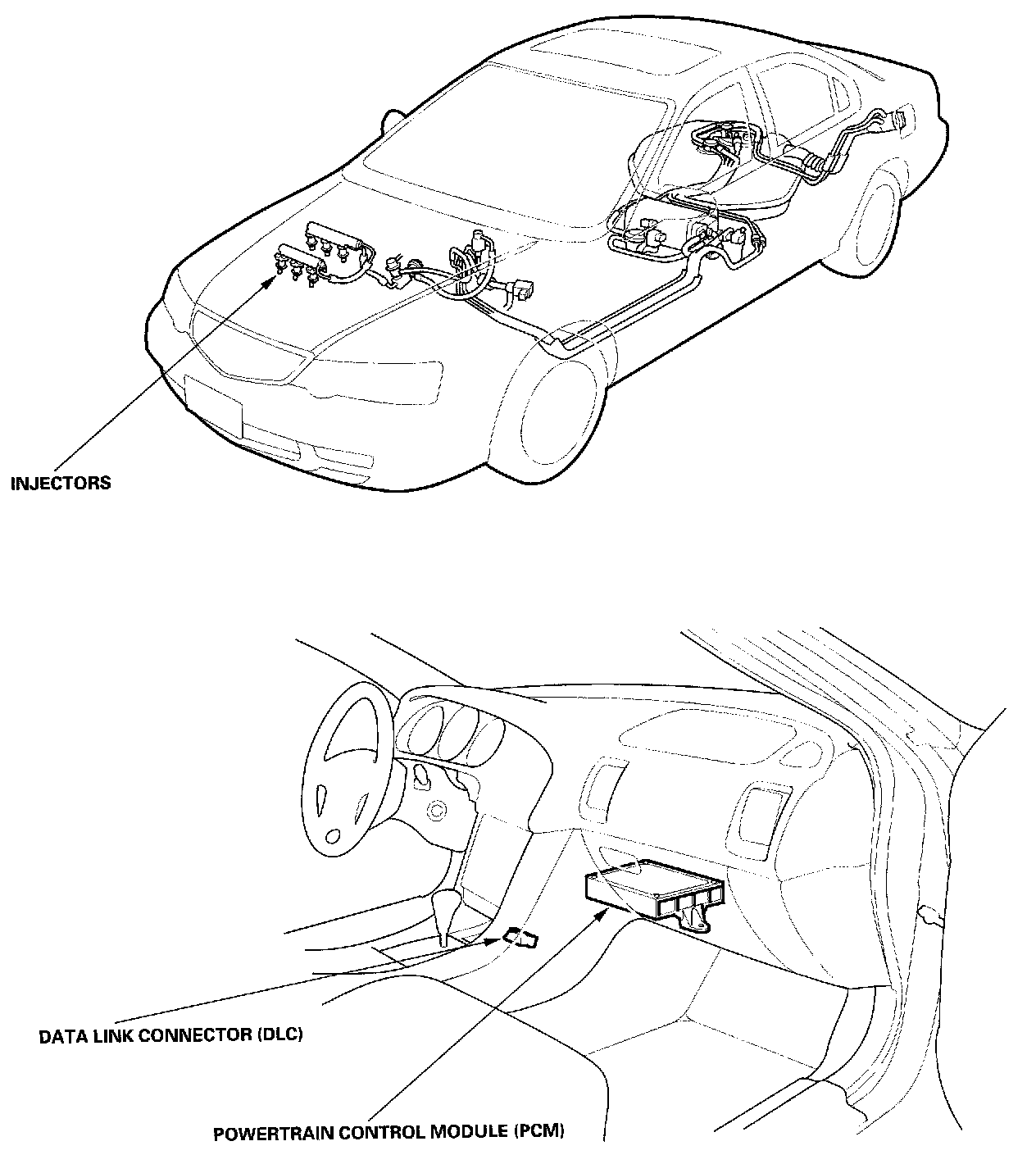

PGM-FI System Component Location Index Part 1:

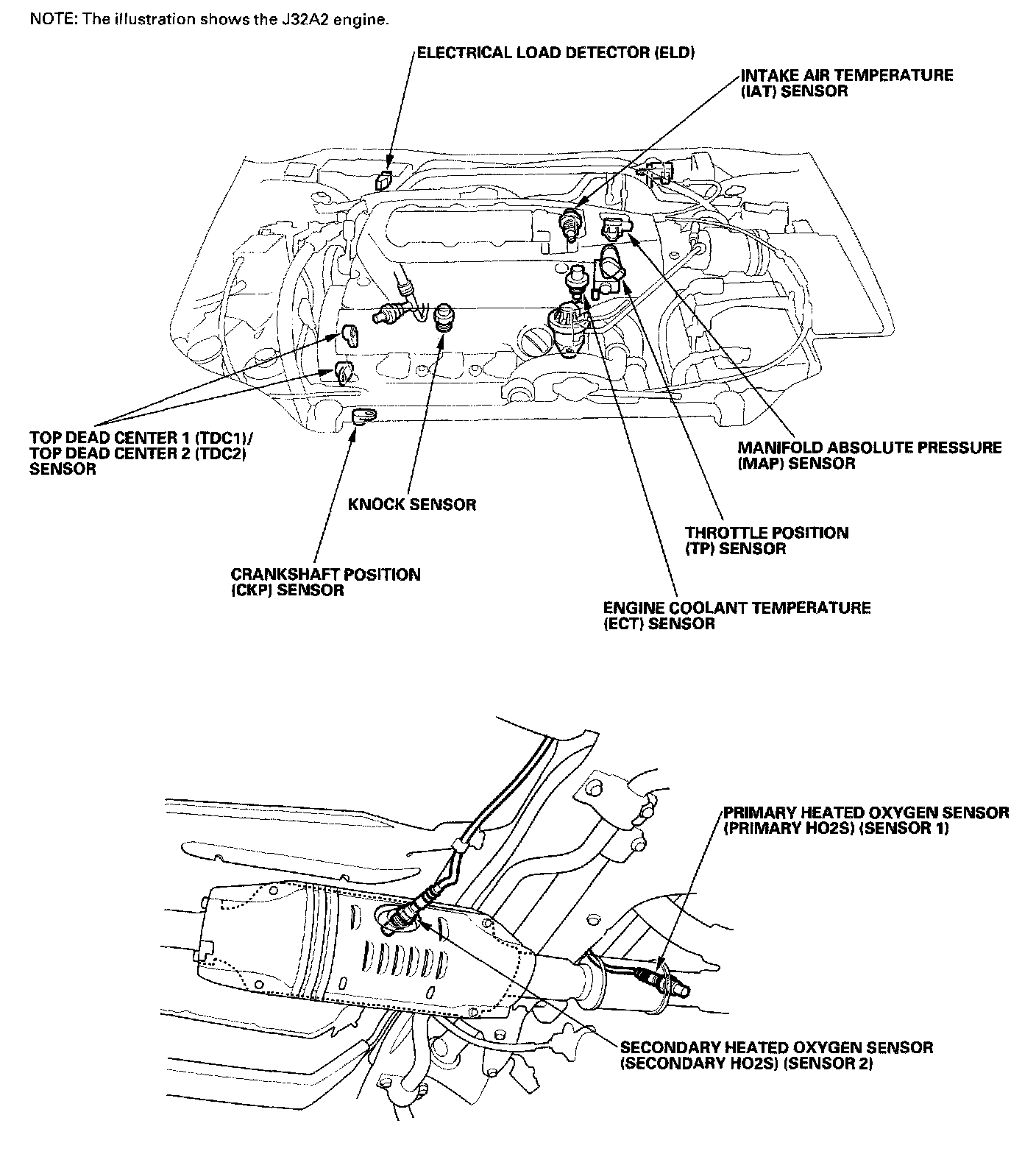

PGM-FI System Component Location Index Part 2:
