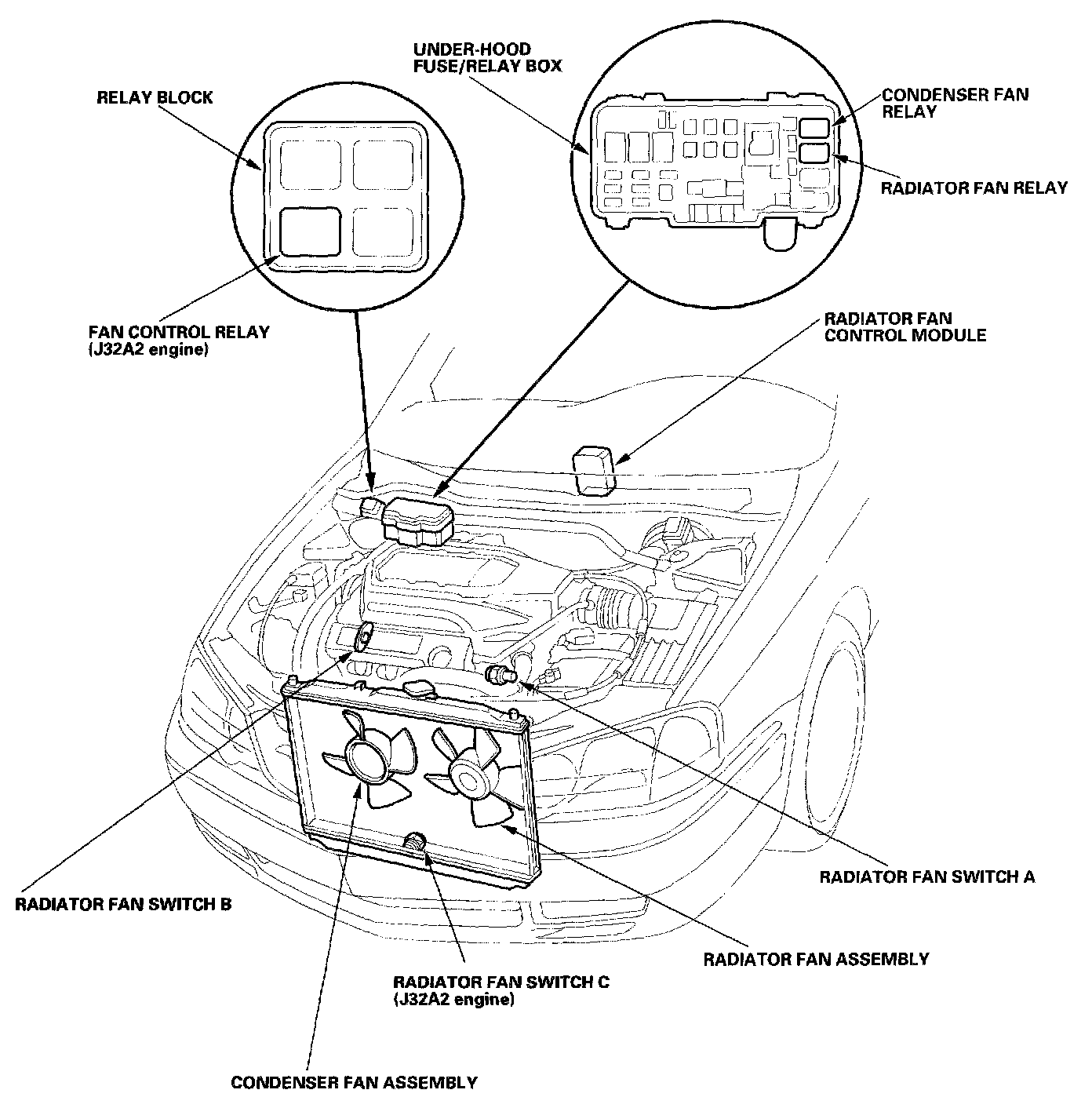

Radiator Cooling Fan Control Module: Locations



Relay And Control Unit Locations - Dashboard:

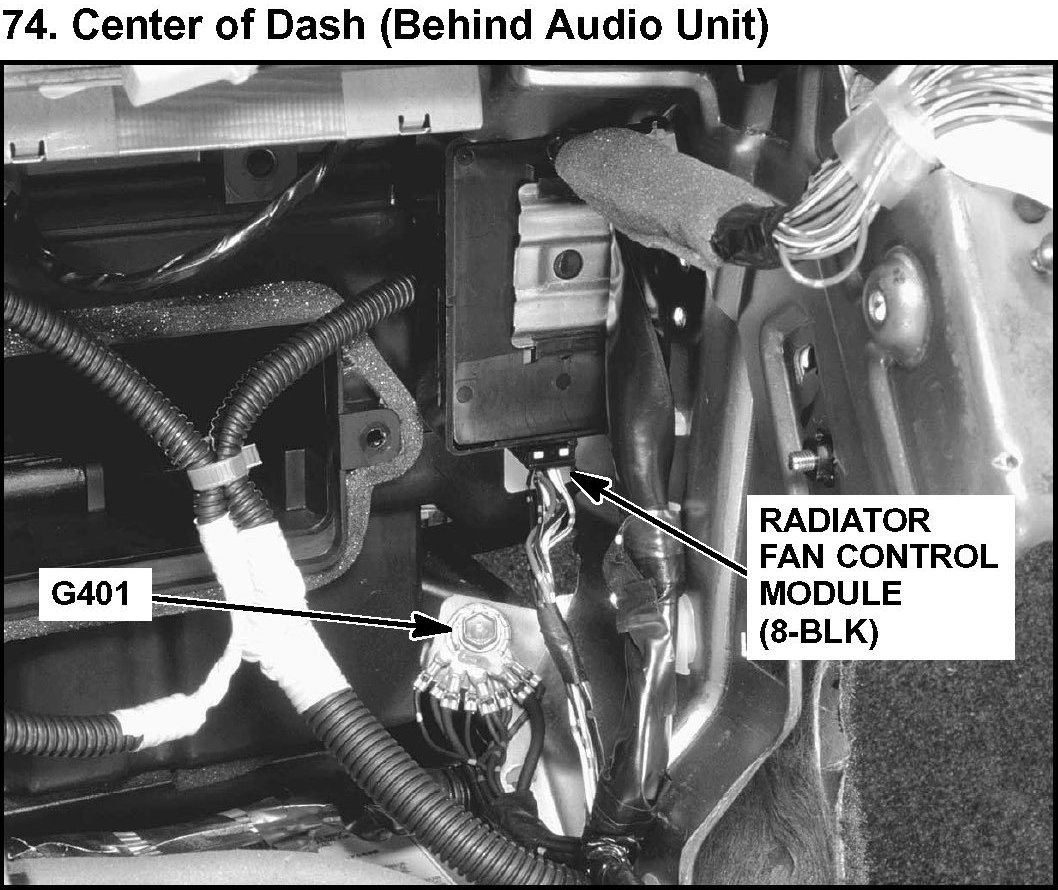

74. Center Of Dash (Behind Audio Unit):
