General Module

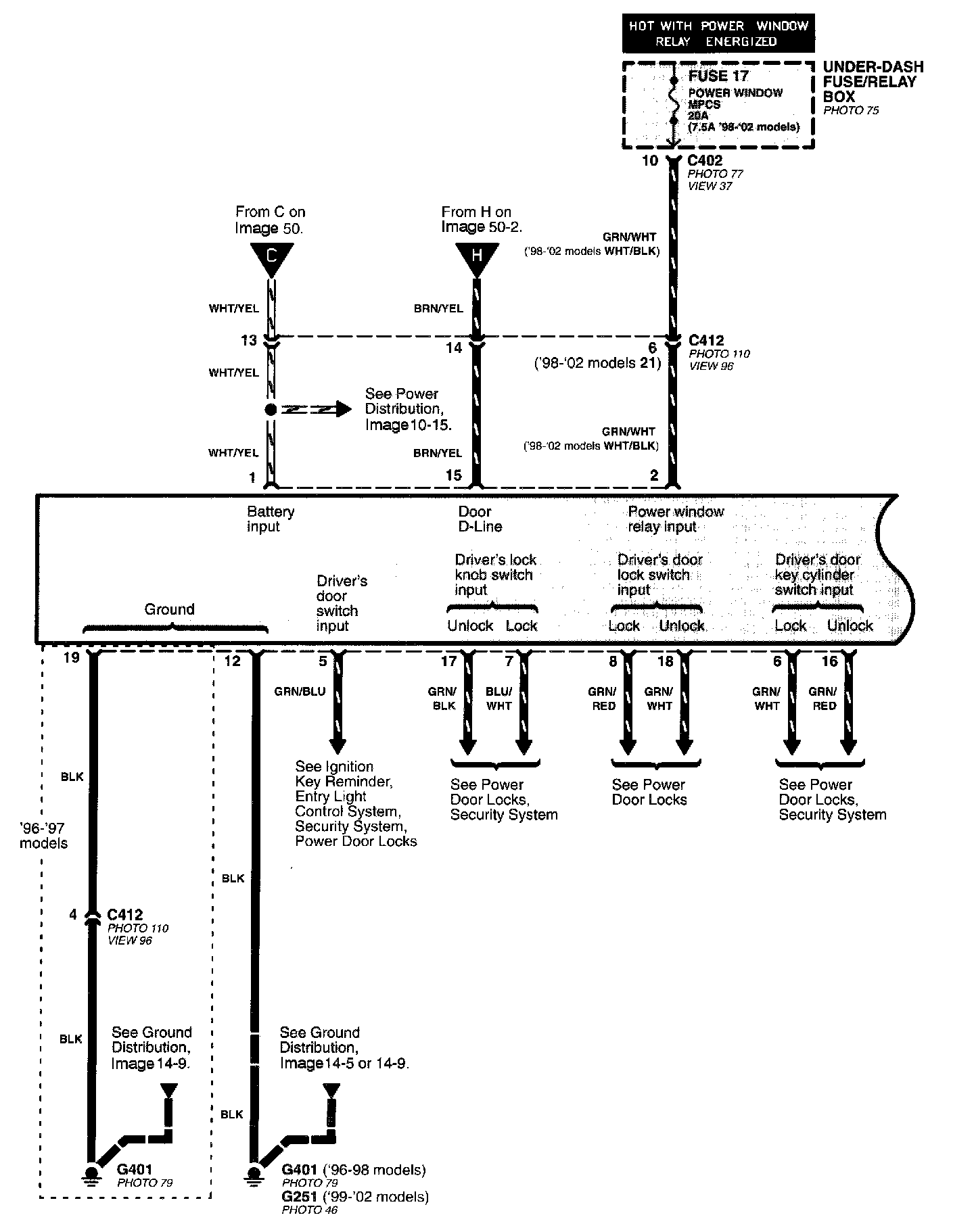

Multiplex Control System Image 50:

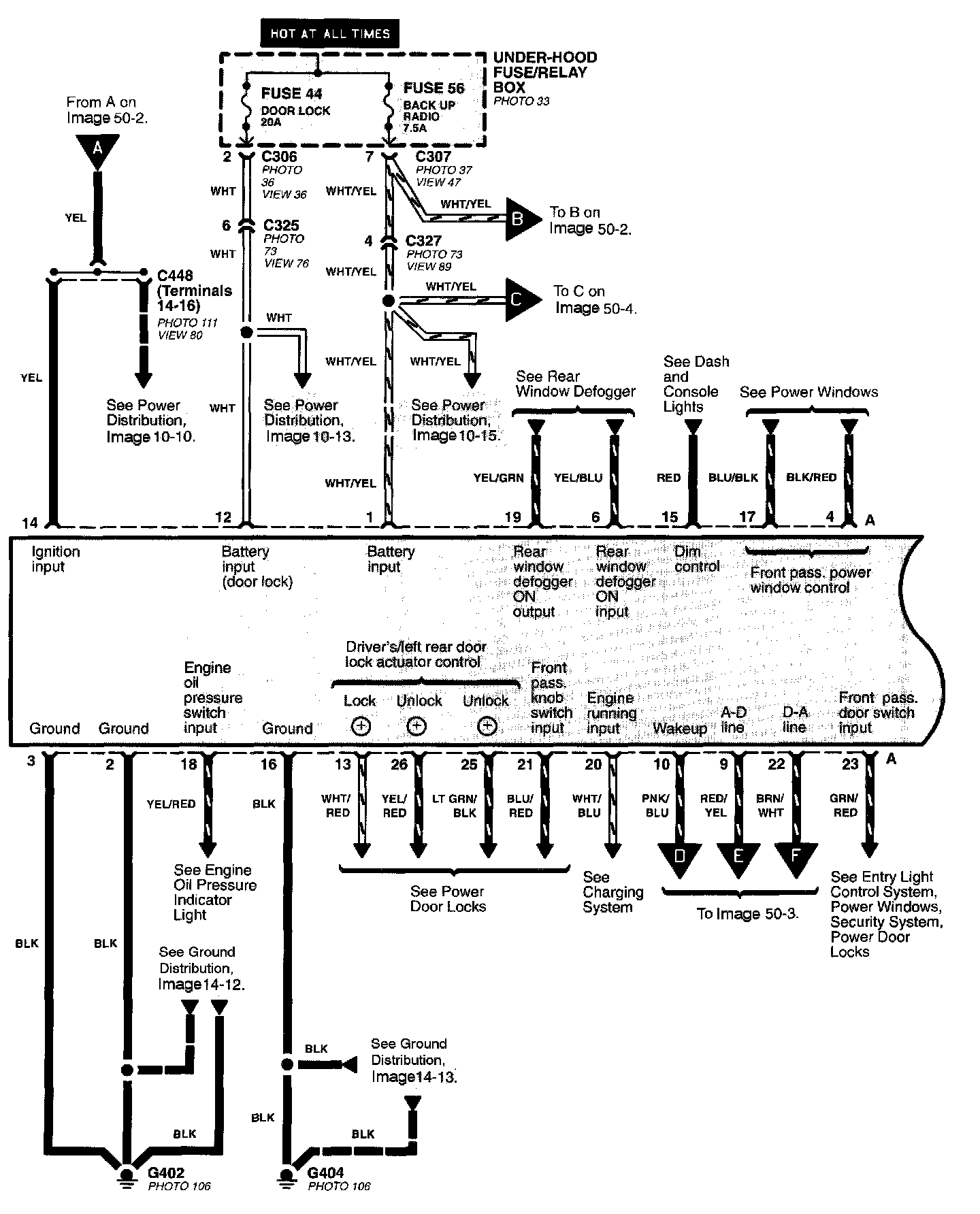

Multiplex Control System Image 50-1:

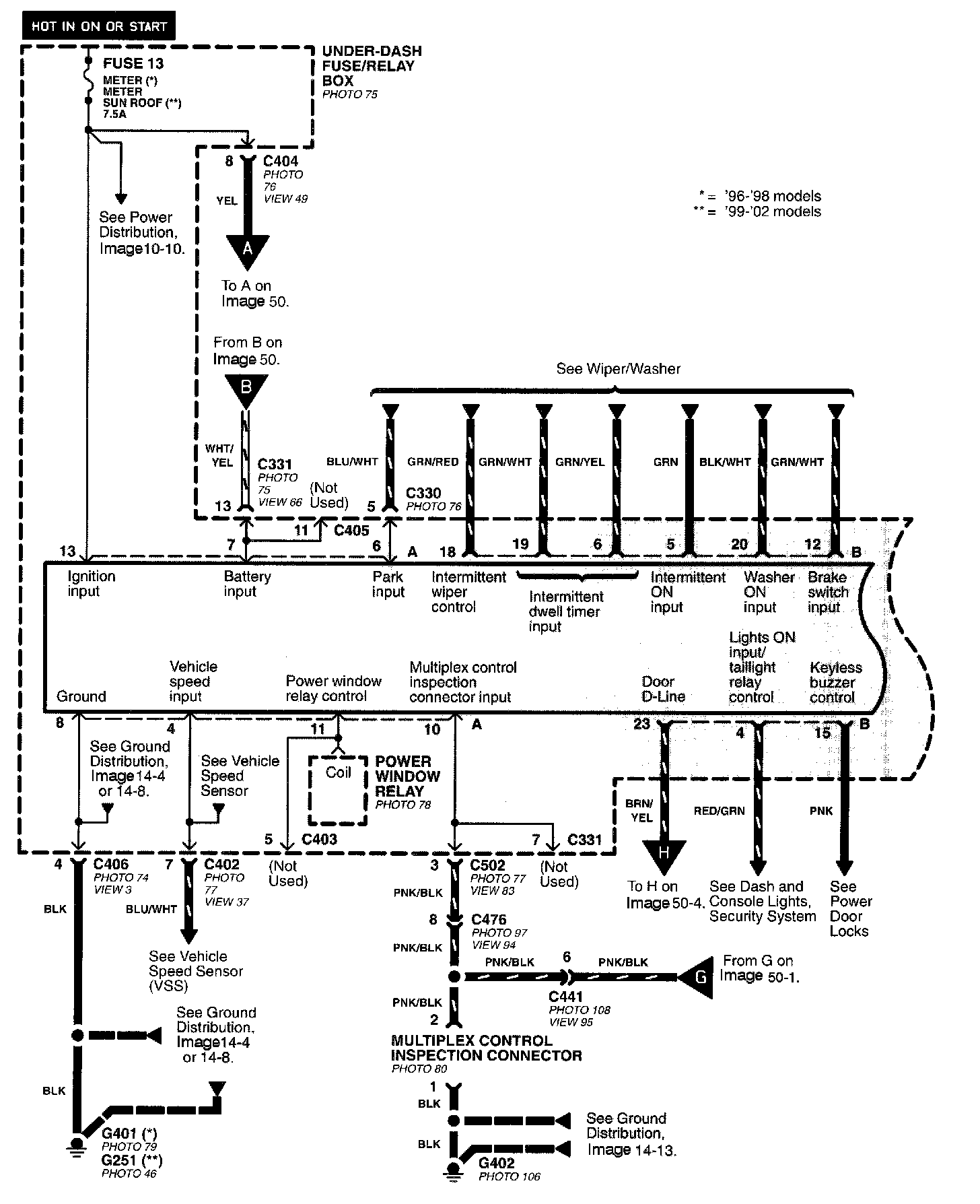

Multiplex Control System Image 50-2:

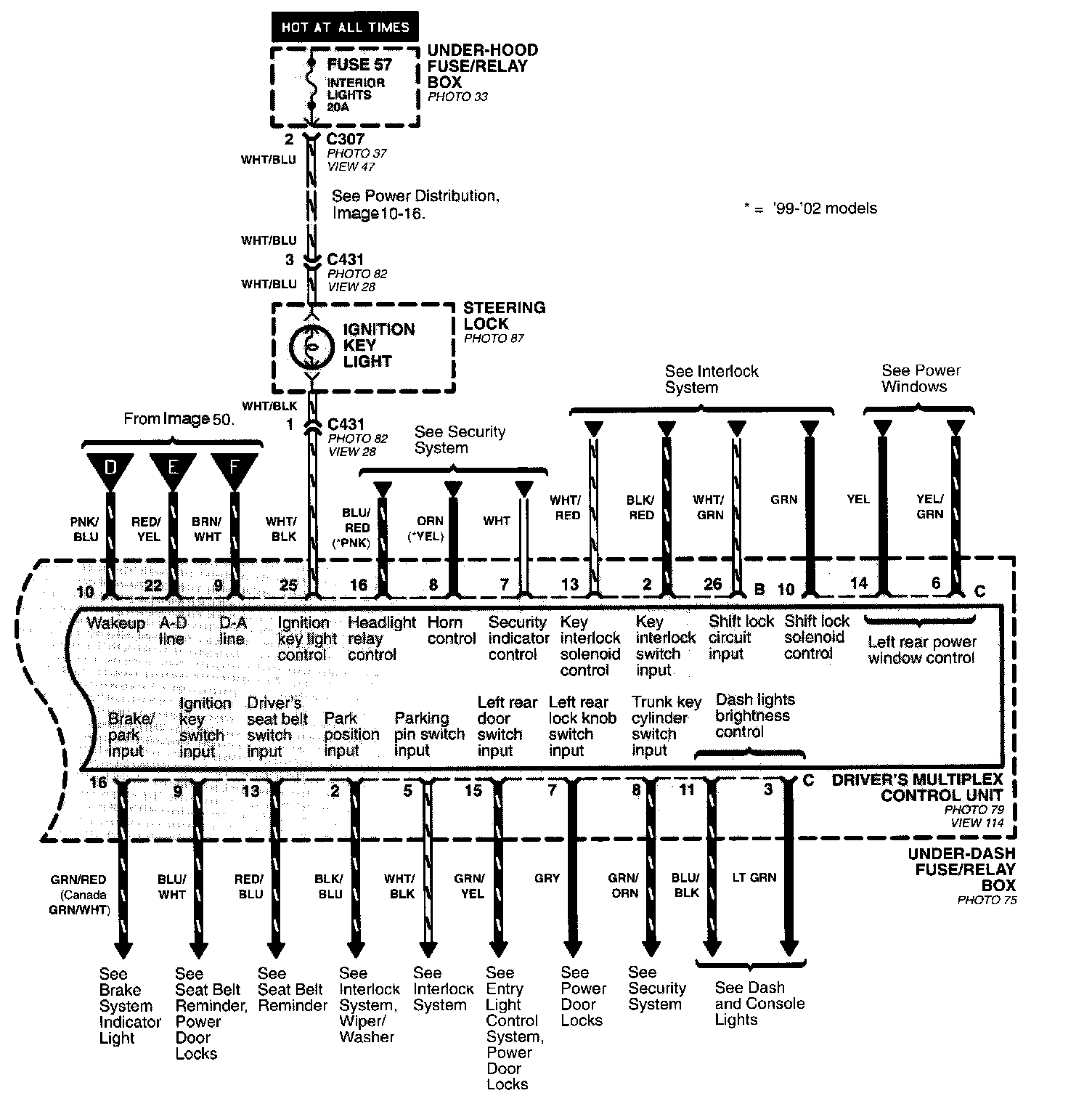

Multiplex Control System Image 50-3:

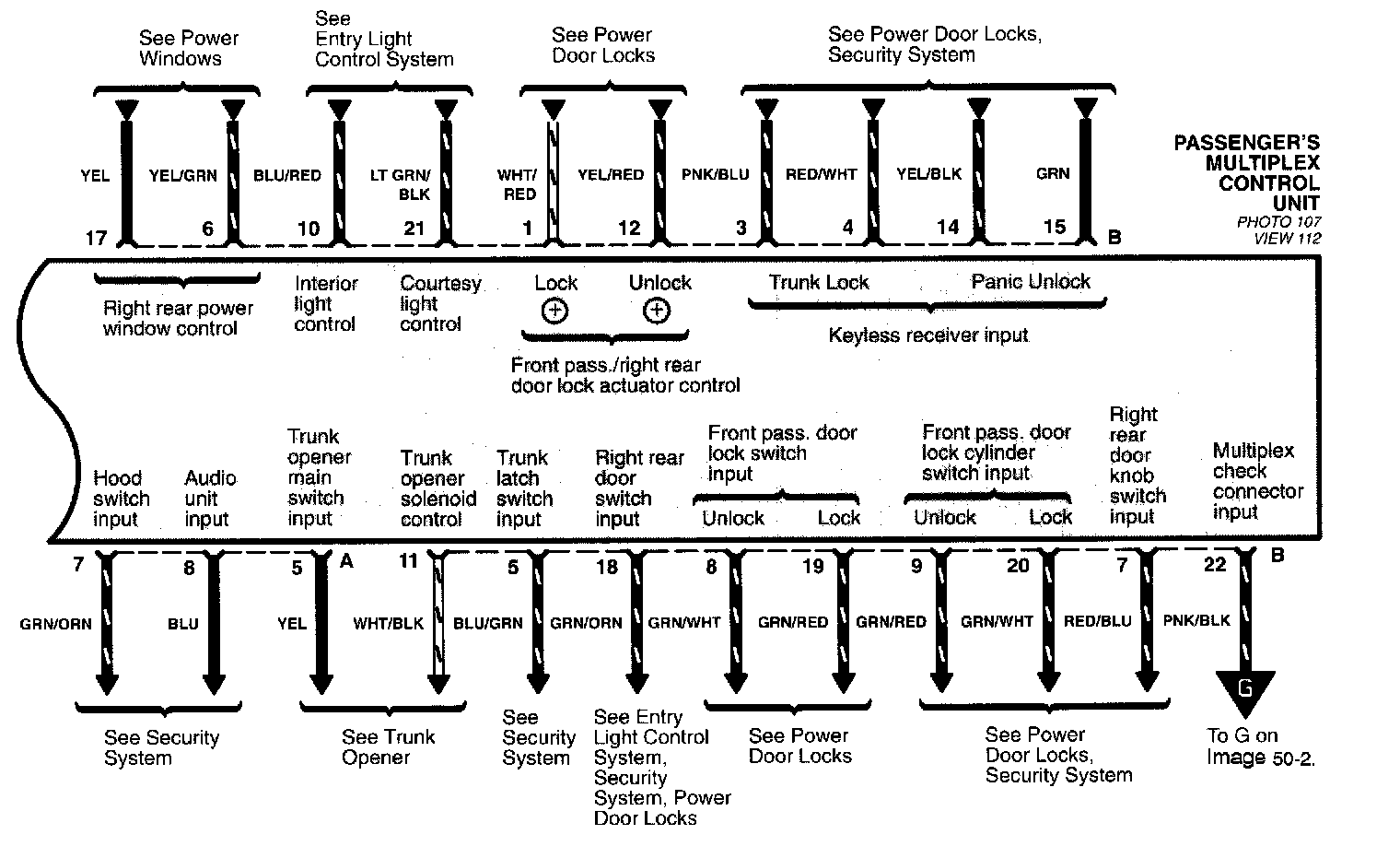

Multiplex Control System Image 50-4:

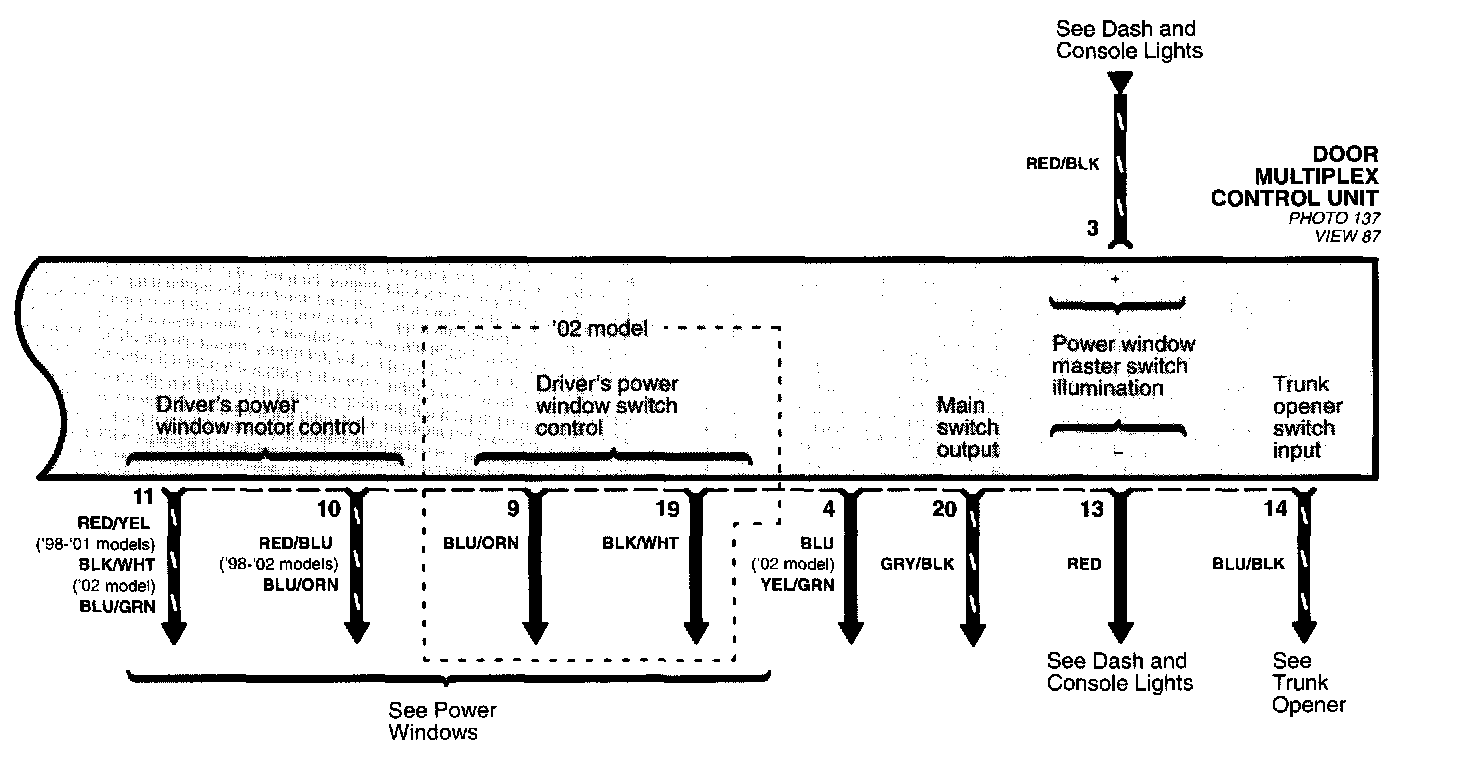

Multiplex Control System Image 50-5:
