Component Locations

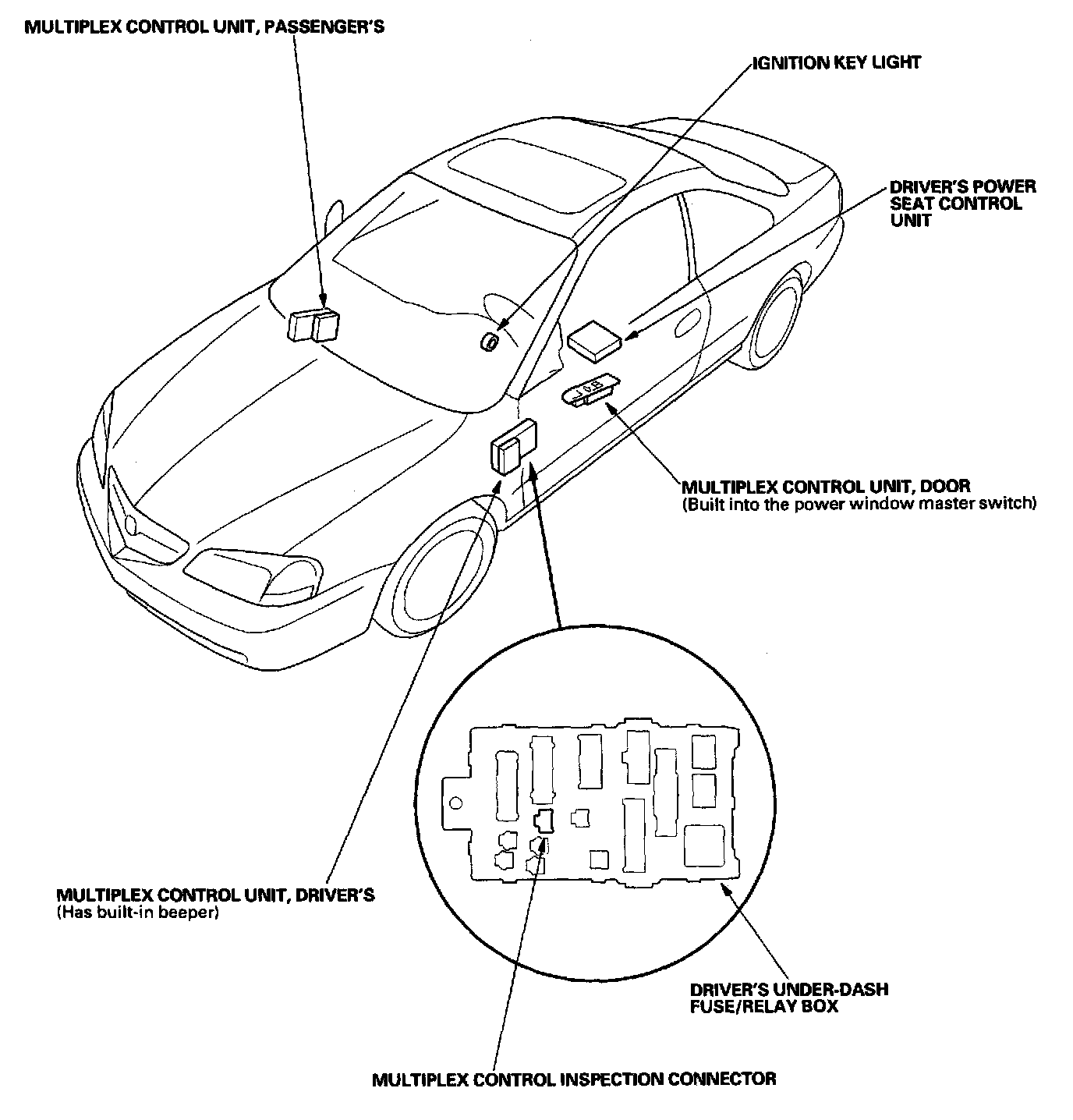

Multiplex Control System Component Location Index:

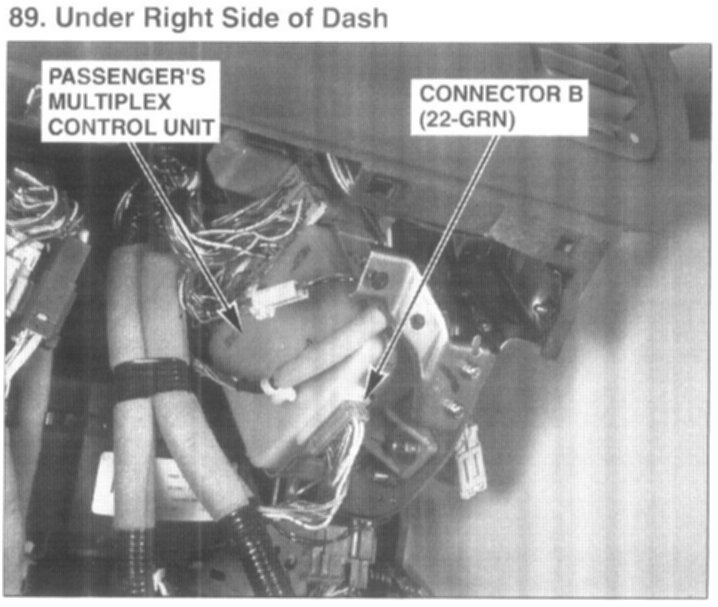

89. Under Right Side of Dash:

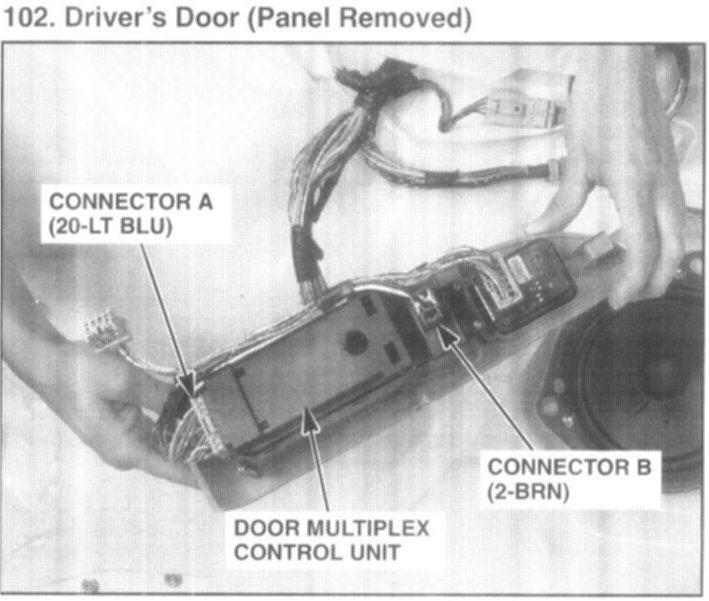

102. Driver's Door (Panel Removed):
