Exterior Lighting Module: Locations

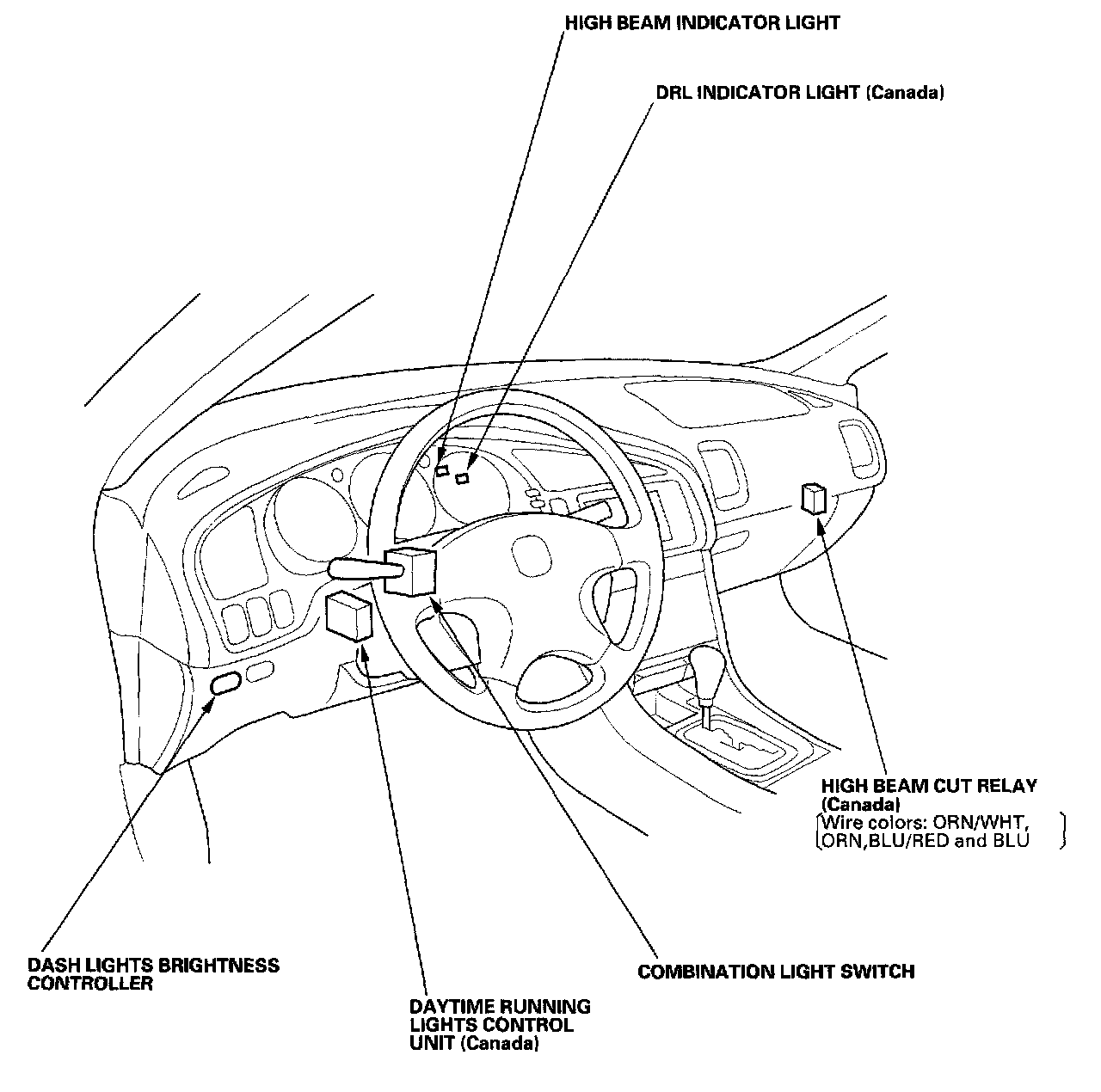

Exterior Lights Component Location Index Part 1:

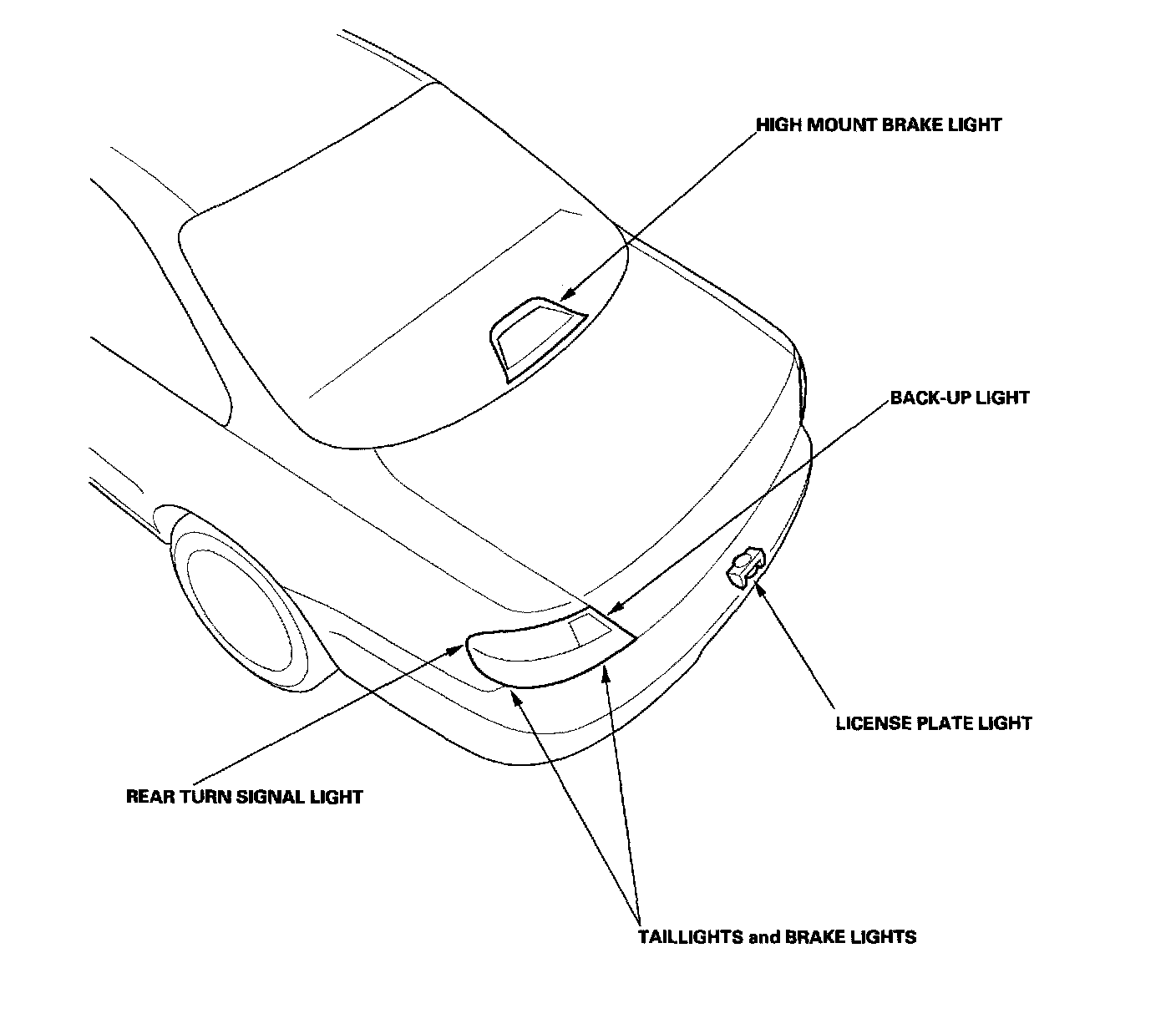

Exterior Lights Component Location Index Part 2:

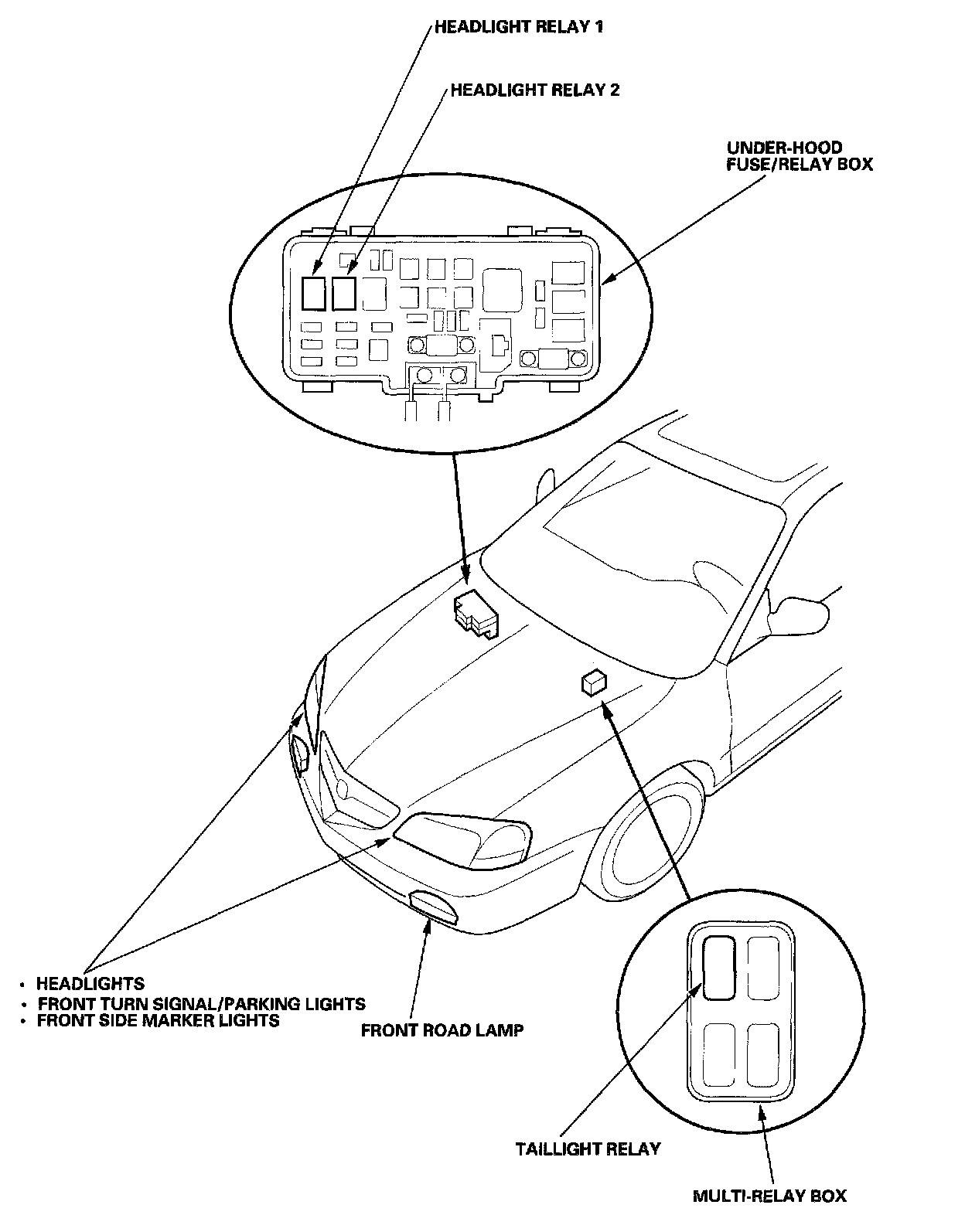

Exterior Lights Component Location Index Part 3:
