Under-Dash Fuse/Relay Box

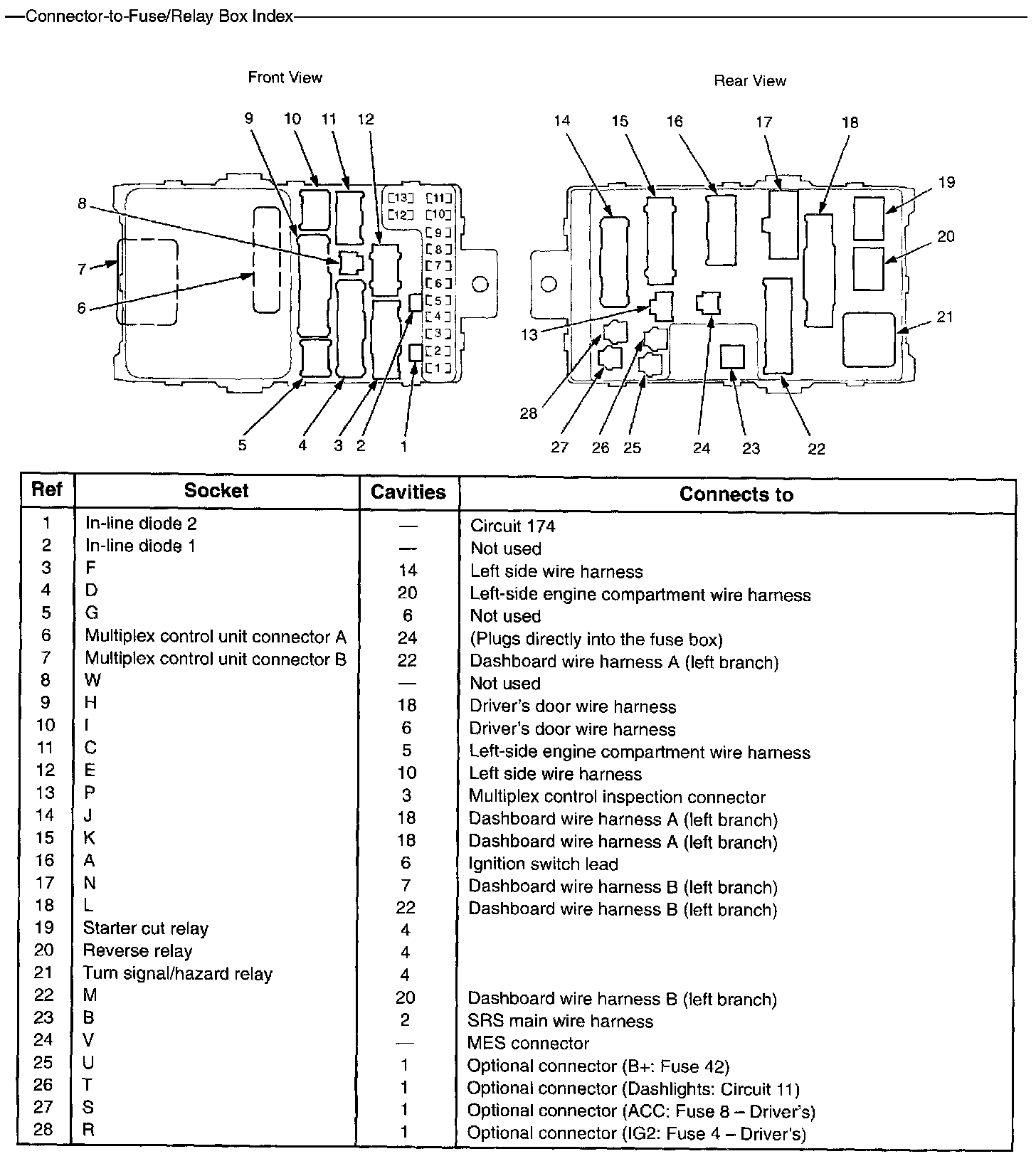

Diver's Under-dash Fuse/Relay Box:



Passenger's Under-dash Fuse/Relay Box:
