Test B: Brake System Indicator Does Not Go Off
For test chart, see
Fig 1
.

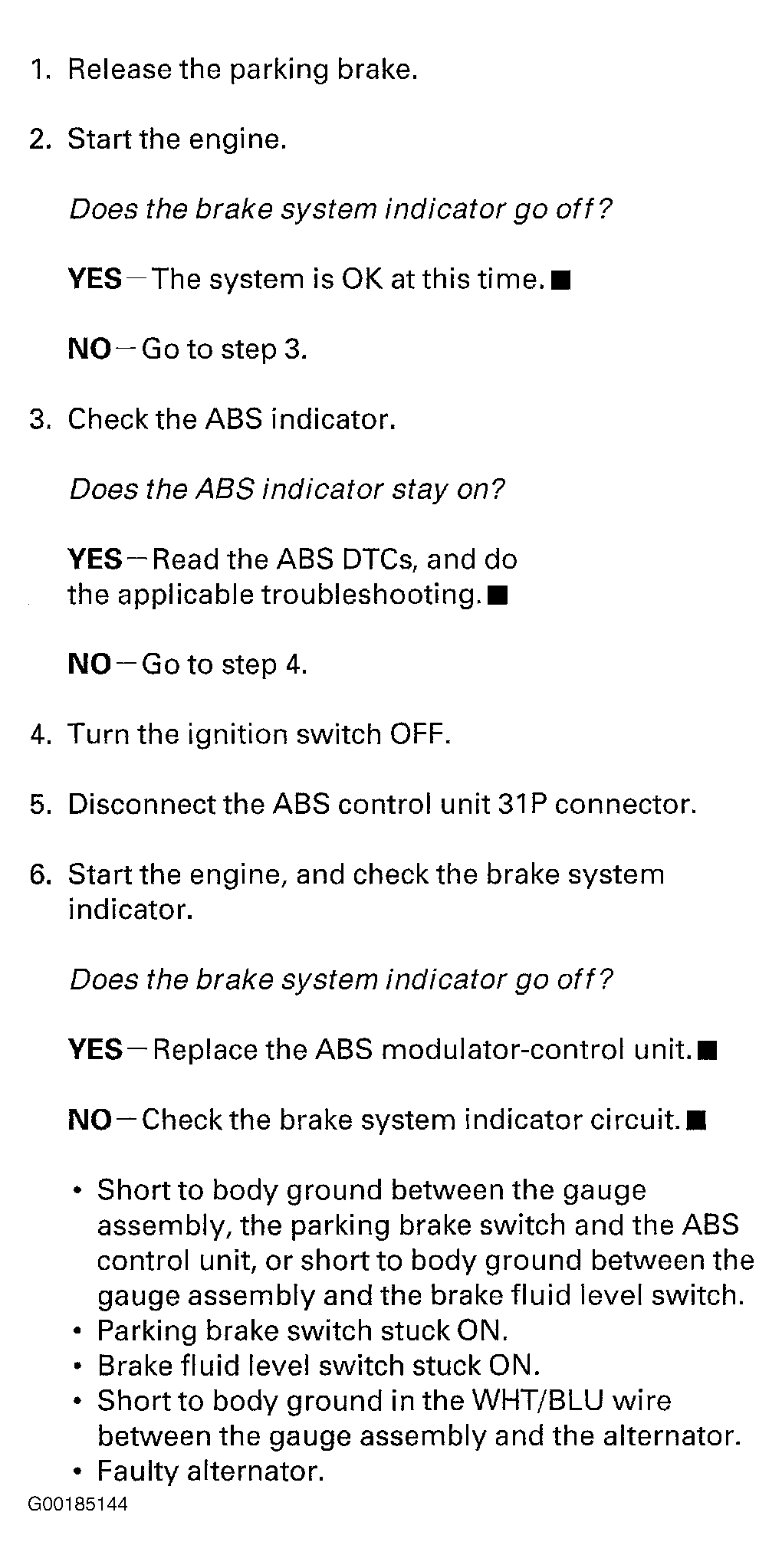

Fig 1: Brake System Indicator Does Not Go Off, Trouble Shooting Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
