Transmission Range Switch Test

Transmission Range Switch Test

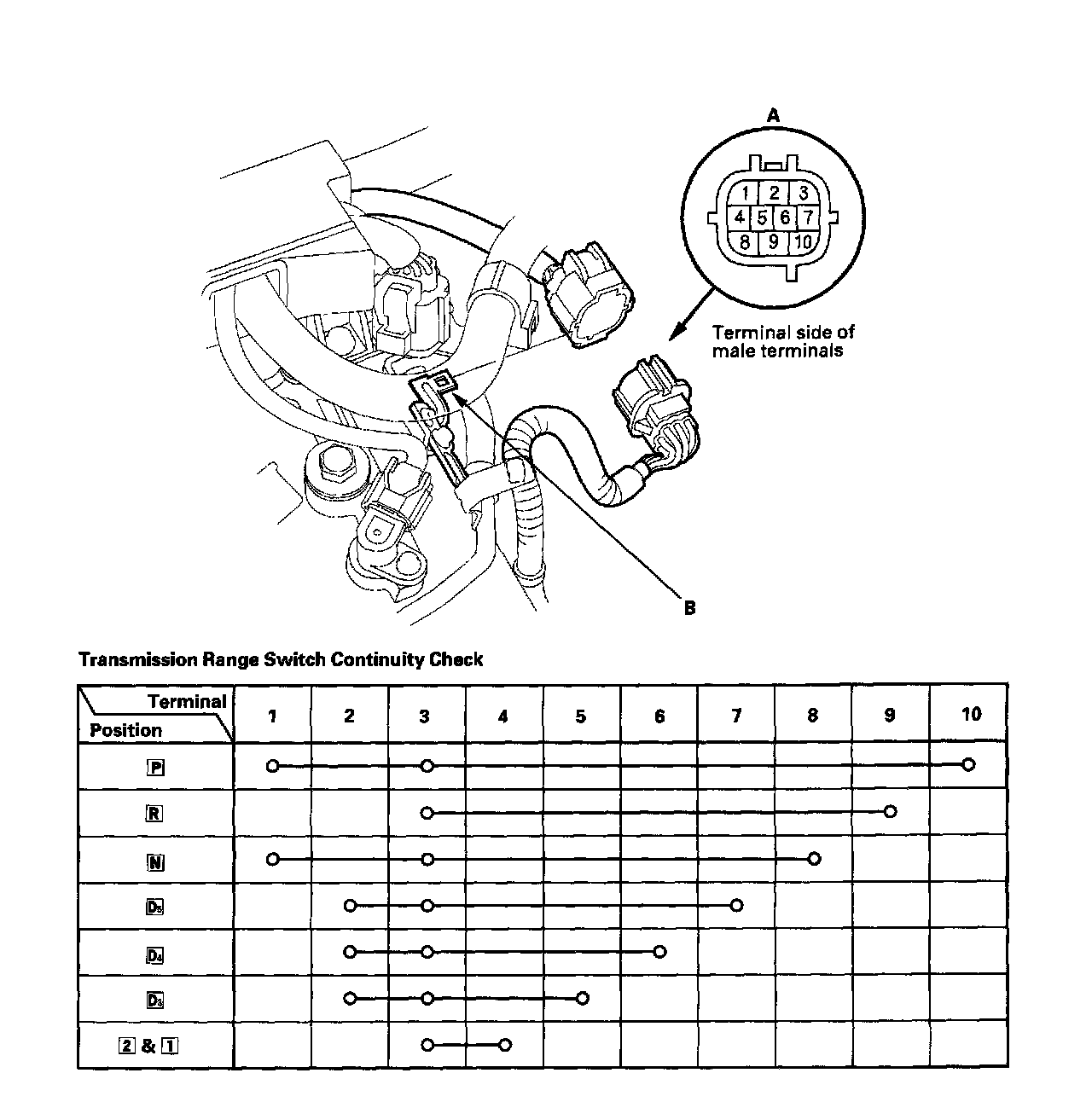

1. Remove the transmission range switch connector (A) from the connector bracket (B), then disconnect the connector.





2. Check for continuity between the terminals in each switch position according to the table below.
