Under-dash Fuse/Relay Box

Connector To Fuse/Relay Box Index Image 49:

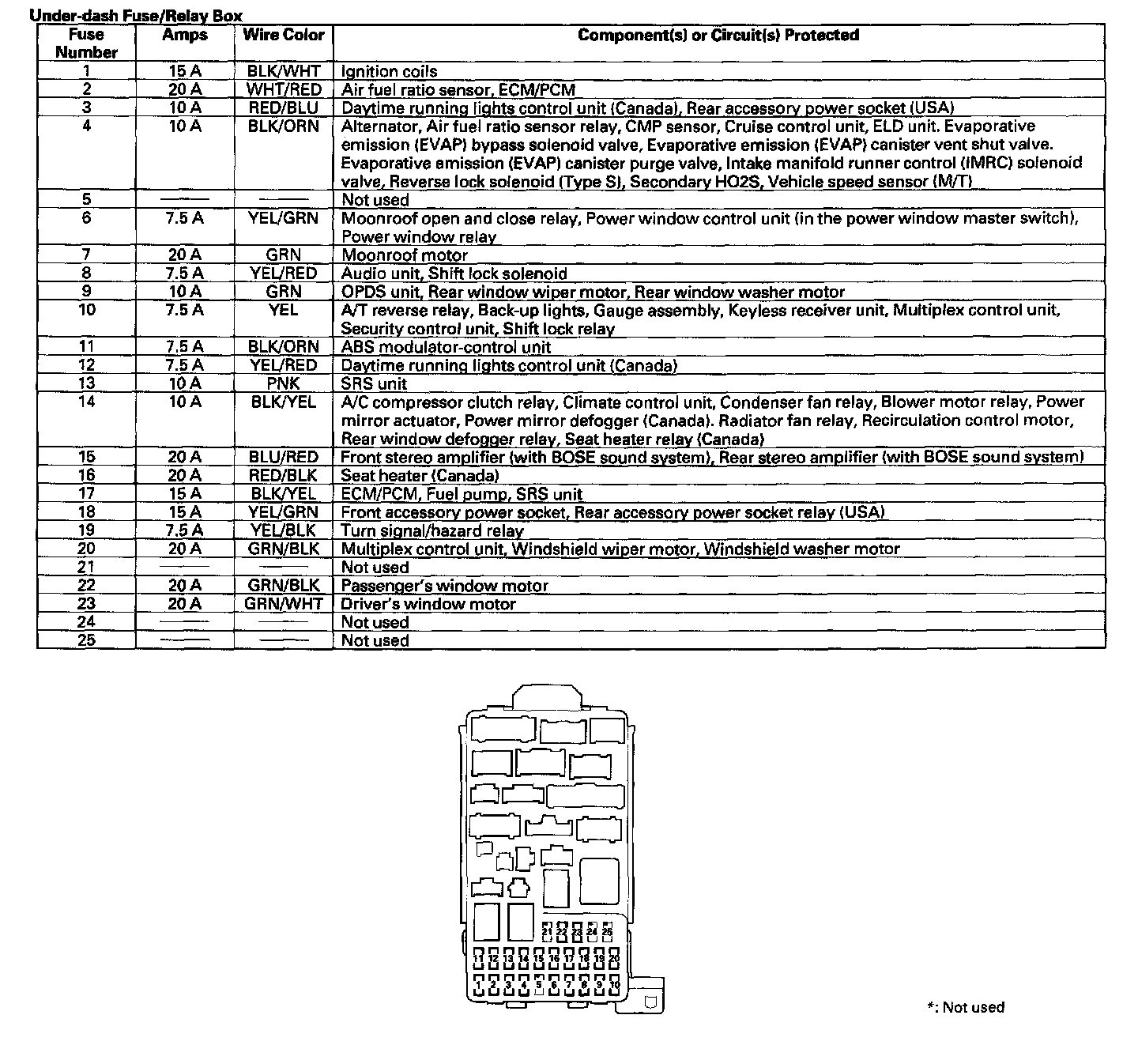

Fuse To Component Index Image 51:
