Relay & Control Unit Locations: Dashboard

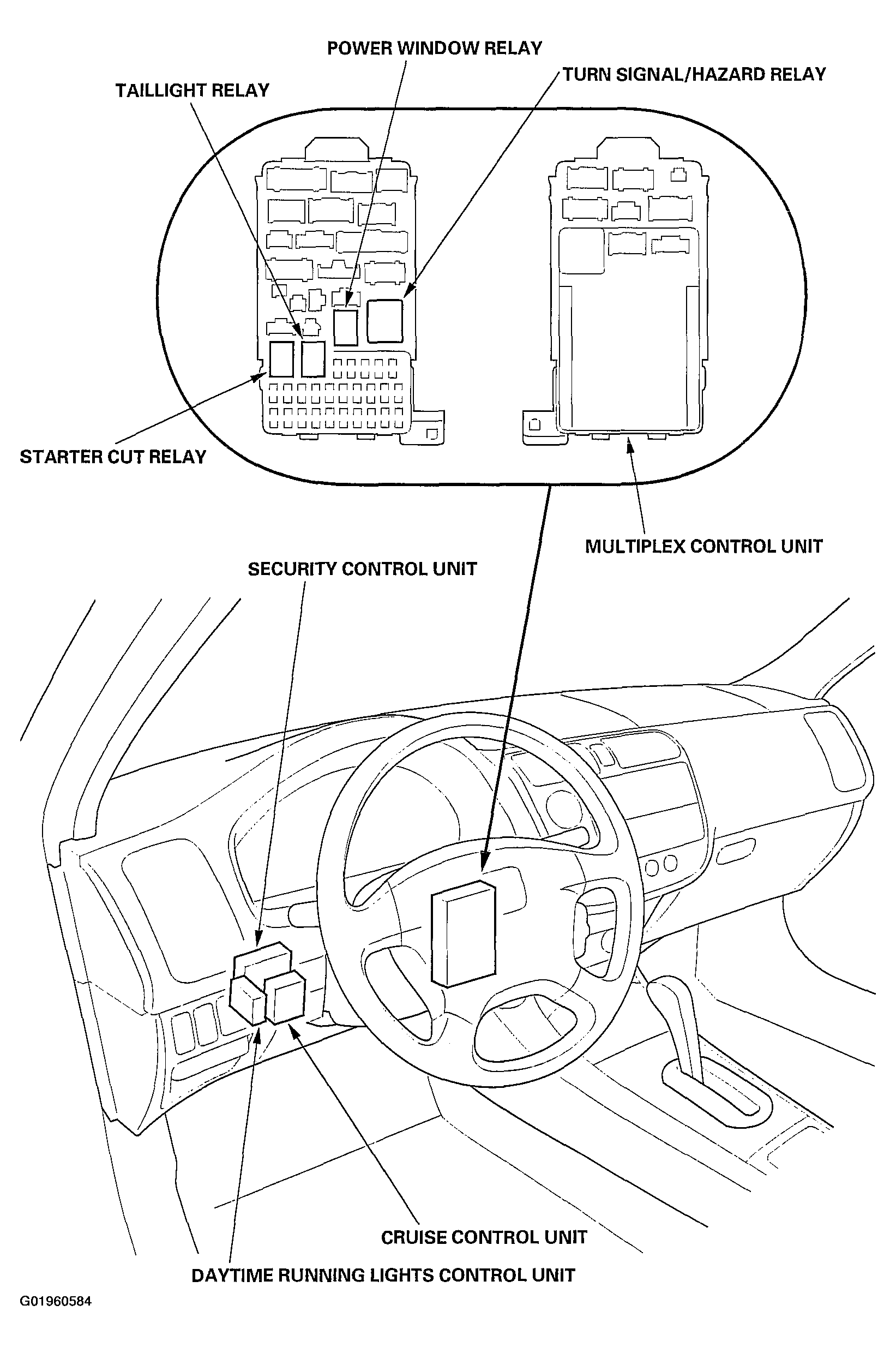

Fig 1: Locating Dashboard Components (1 Of 3)
G01960584

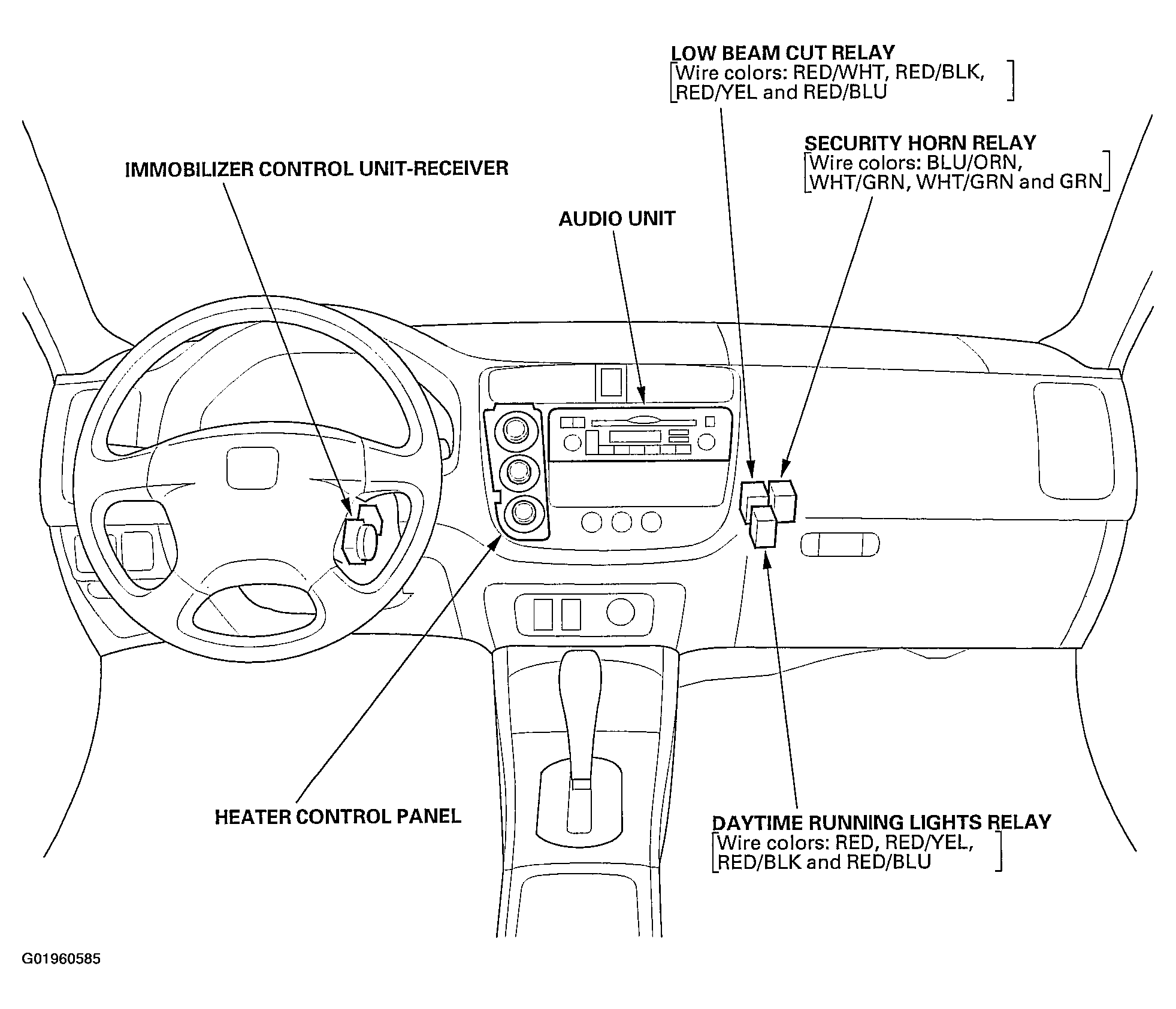

Fig 2: Locating Dashboard Components (2 Of 3)
G01960585

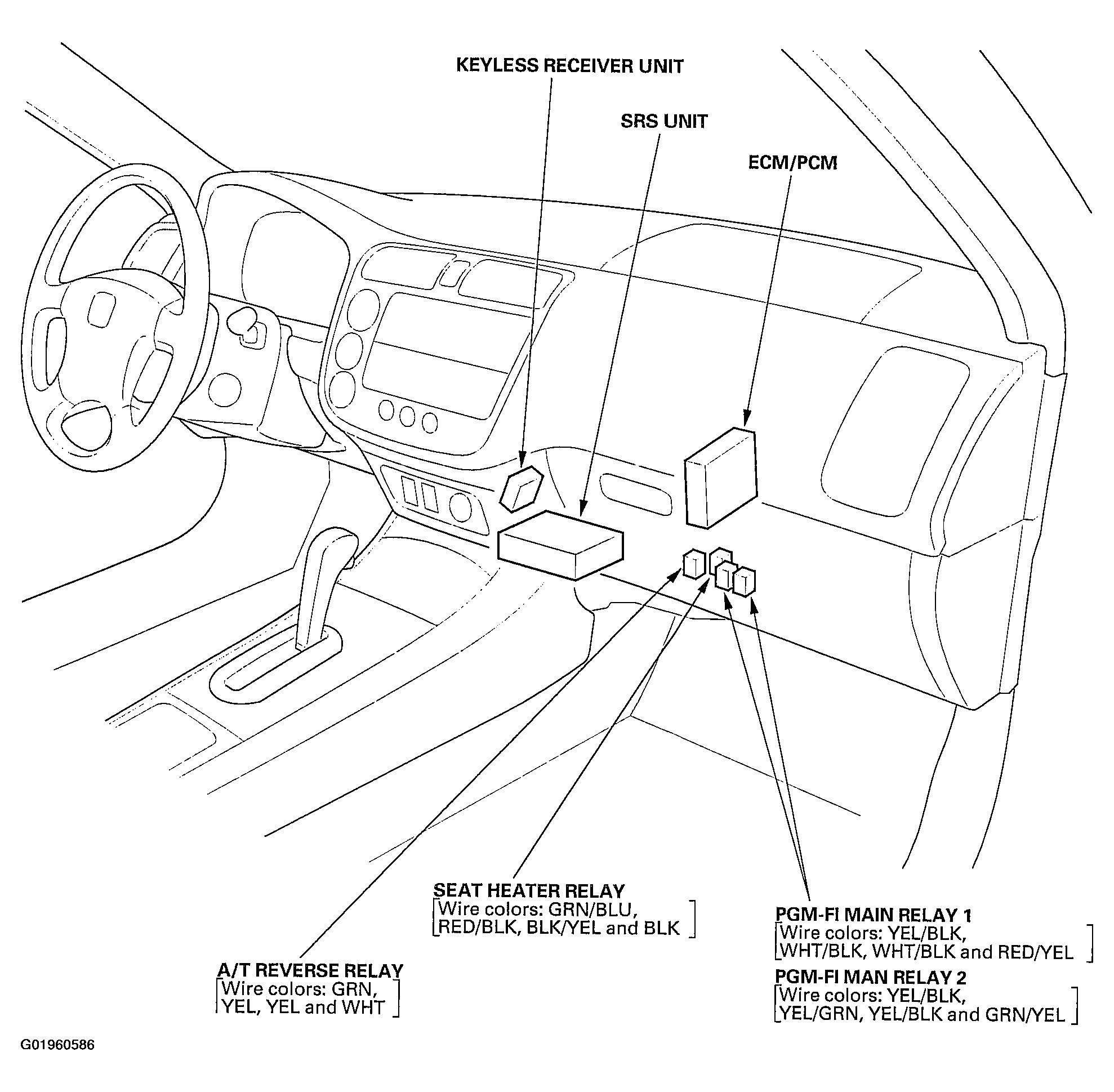

Fig 3: Locating Dashboard Components (3 Of 3)
G01960586
