Clutch Interlock Switch Test

  1. Disconnect the clutch interlock switch 2P connector.

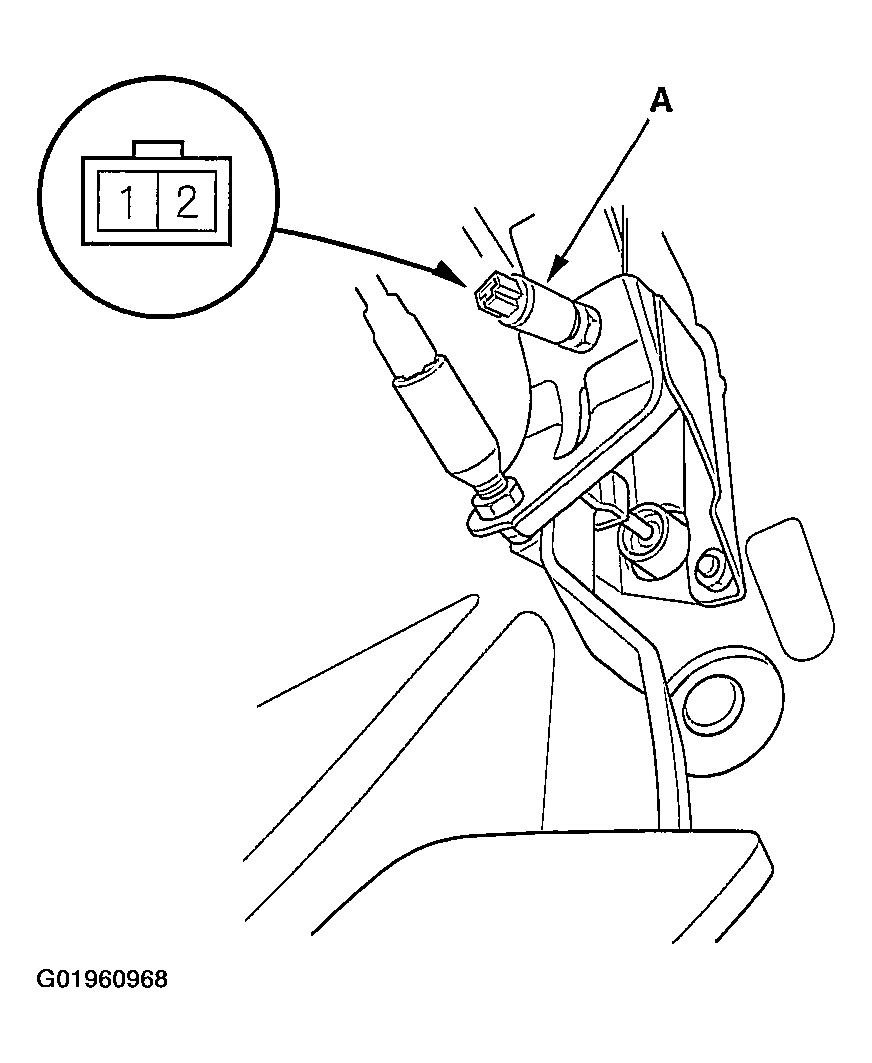

    Fig 1: Disconnecting Clutch Interlock Switch 2-Pin Connector
    G01960968
  2. Remove the clutch interlock switch (A).
  3. Check for continuity between the terminals according to Fig 2 .
    Fig 2: Checking Continuity Between Terminals
    G01960969
  4. If necessary, replace the switch or adjust the pedal height (see CLUTCH PEDAL AND CLUTCH PEDAL POSITION SWITCH ).
