ABS Modulator-Control Unit Removal and Installation: Removal

  1. Pull up the lock (C) of the ABS control unit 31P connector (B), then disconnect the connector.

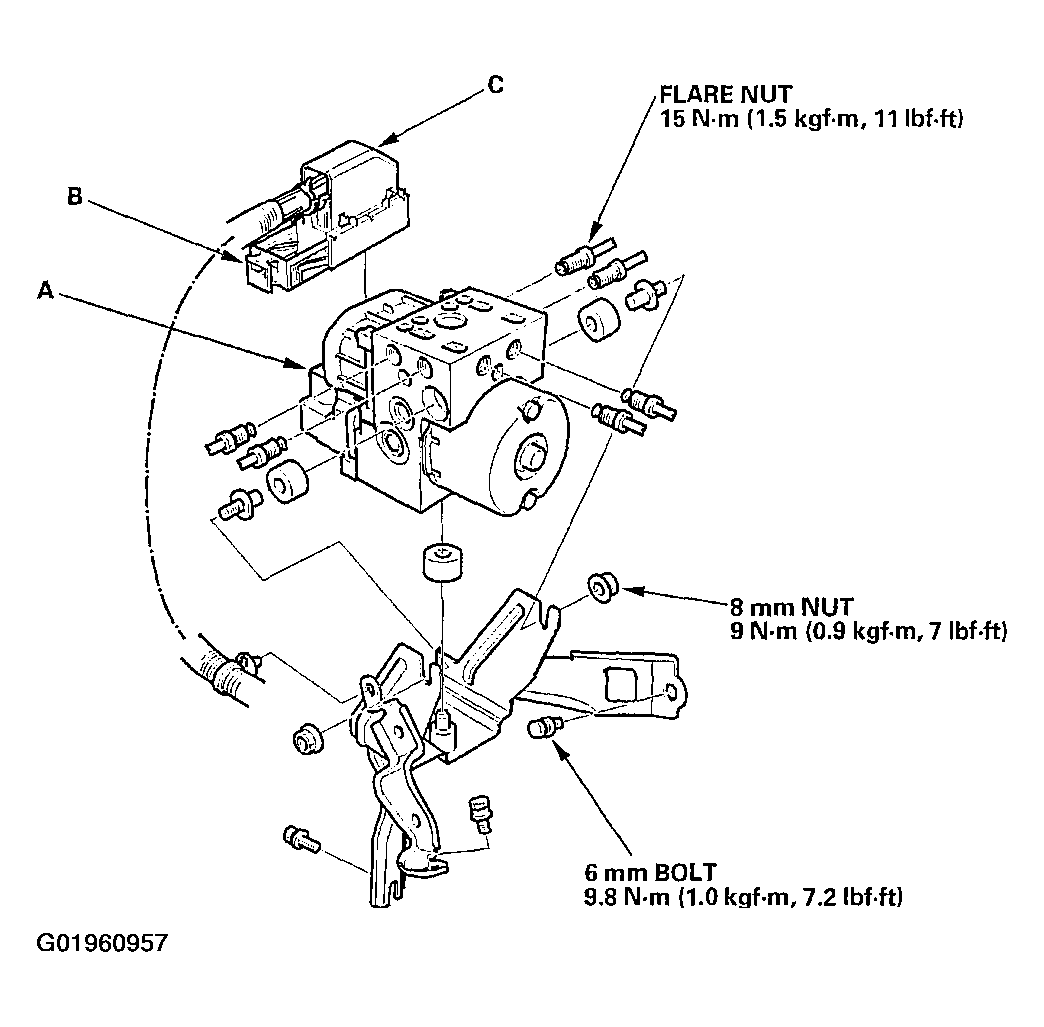

    Fig 1: Pulling Lock Of ABS Control Unit Connector
    G01960957
  2. Disconnect the six brake lines.
  3. Remove the two 8 mm nuts.
  4. Remove the ABS modulator-control unit (A).
