Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

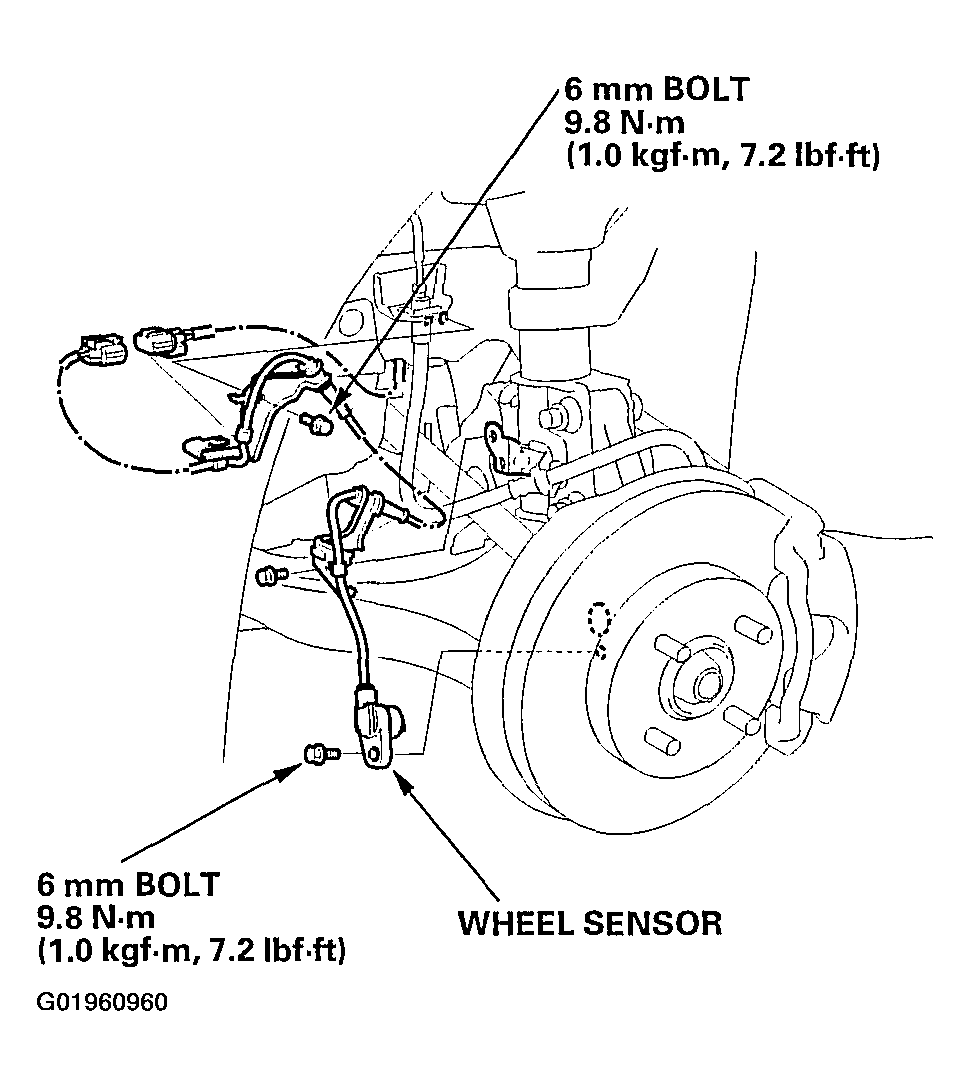

Fig 1: Installing Sensors (Front)
G01960960

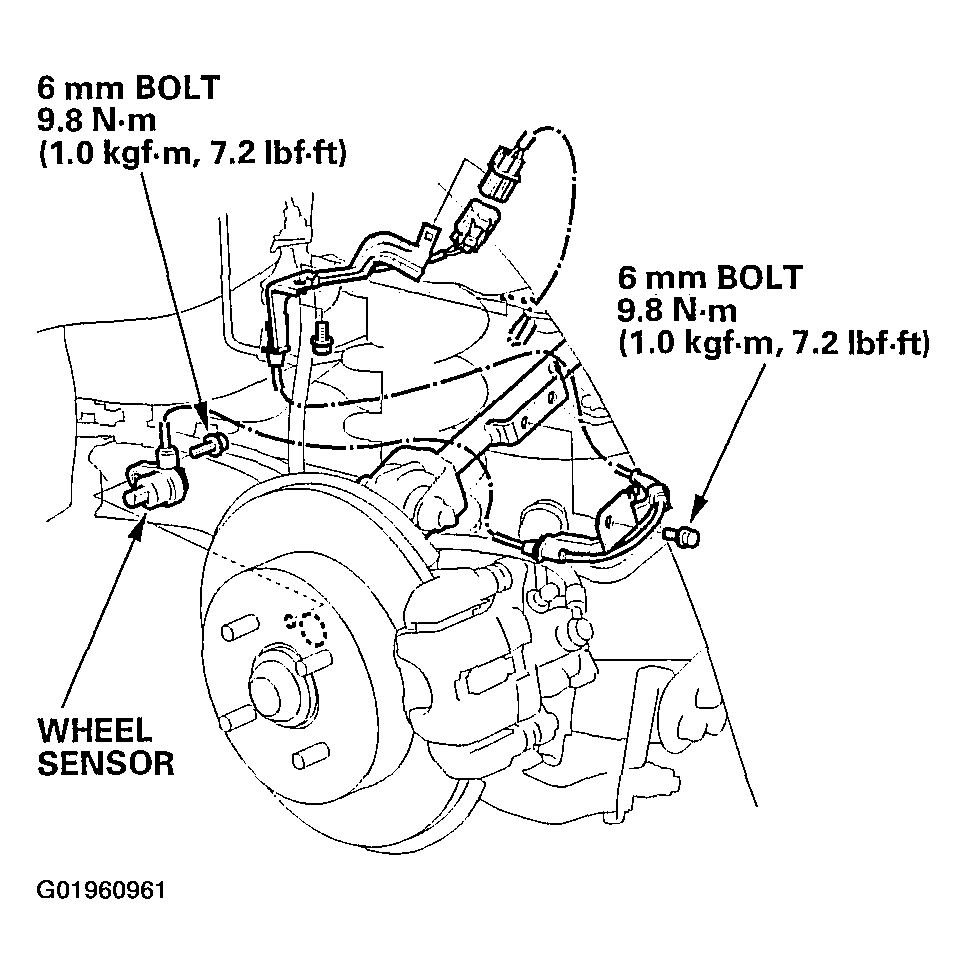

Fig 2: Installing Sensors (Rear)
G01960961
