Fuel Filter Replacement

The fuel filter should be replaced whenever the fuel pressure drops below the specified value (270-320 kPa, 2.8-3.3 kgf/cm² , 40-47 psi) after making sure that the fuel pump and the fuel pressure regulator are OK.

1. Remove the fuel tank unit (see Fuel Pump/Fuel Gauge Sending Unit Replacement  ).
2. Remove the fuel filter set (A).

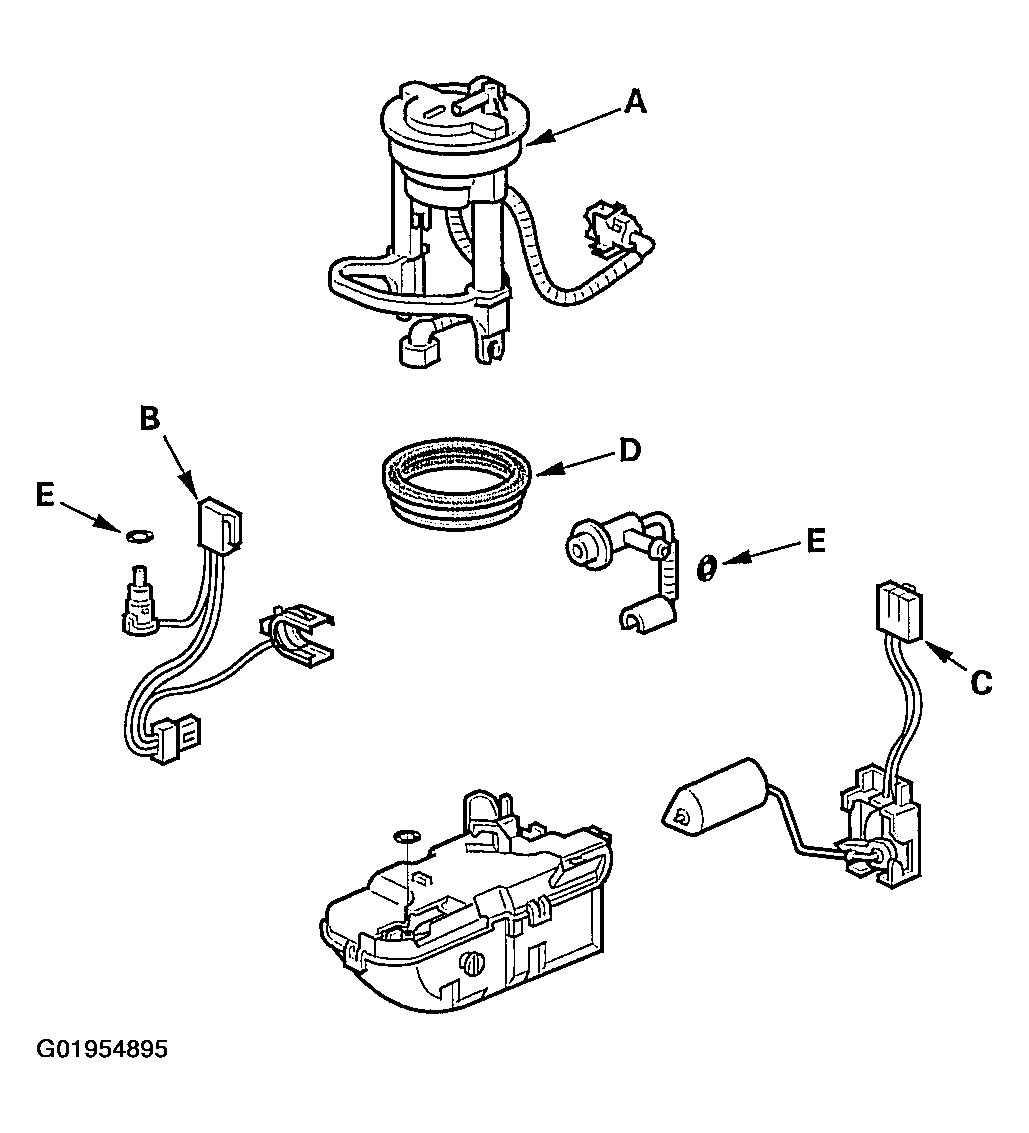

   Fig 1: Removing Fuel Filter Set


3. Install the part in the reverse order of removal with a new base gasket (D) and new O-rings (E), then check these items:
   • When connecting the wire harness, make sure the connection is secure and the terminal (B) is firmly locked into place.
   • When installing the fuel gauge sending unit (C), make sure the connection is secure and the connector is firmly locked into place. Be careful not to bend or twist it excessively.
