Speaker Replacement: Tweeter

  1. Remove the tweeter panel .
  2. Disconnect the 2P connector (A) from the tweeter (B).

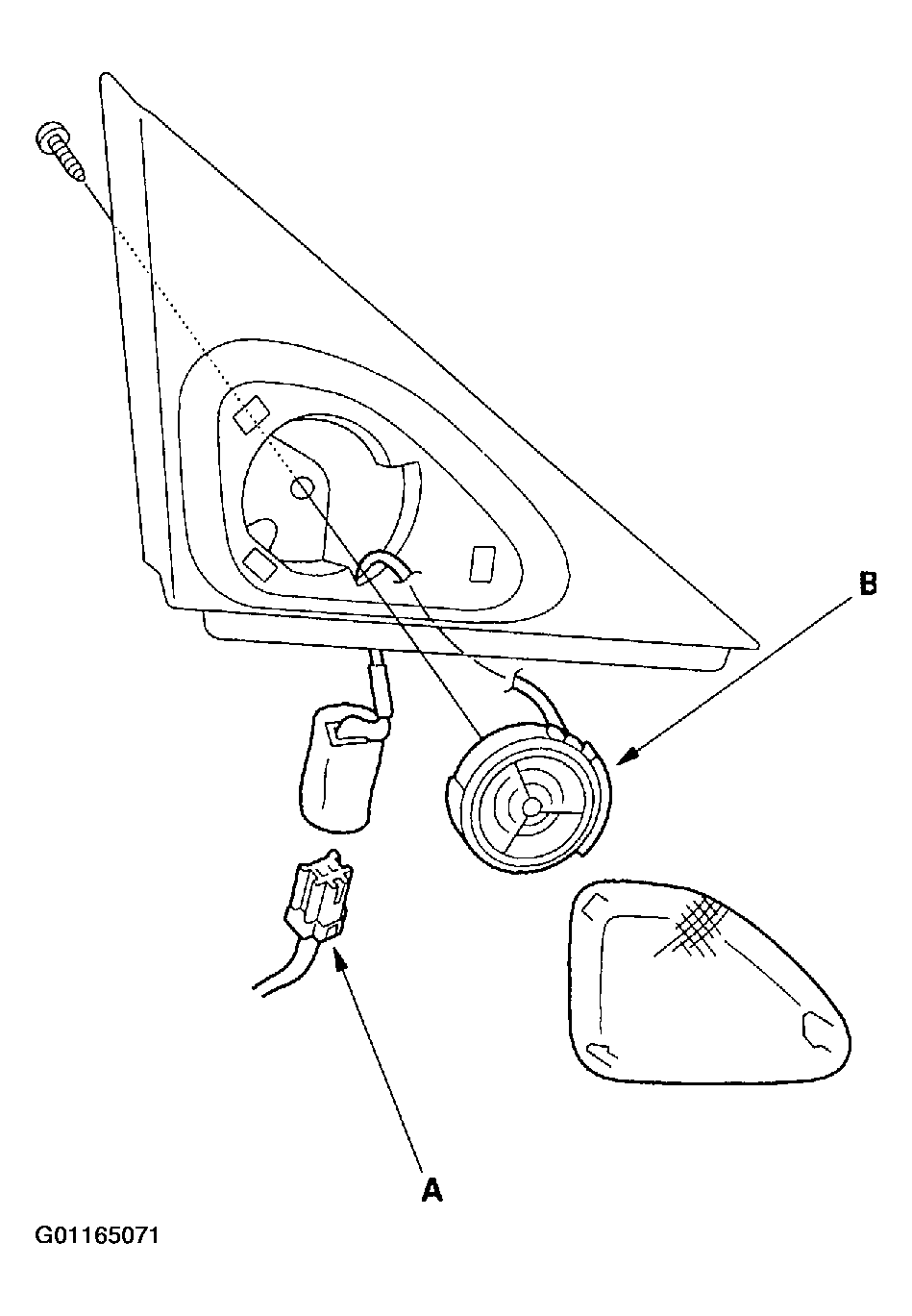

    Fig 1: Removing The Tweeter
    G01165071Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the mounting screw and the tweeter.
