Navigation Unit Removal/Installation

  1. Remove the navigation unit bracket (A) from the trunk.

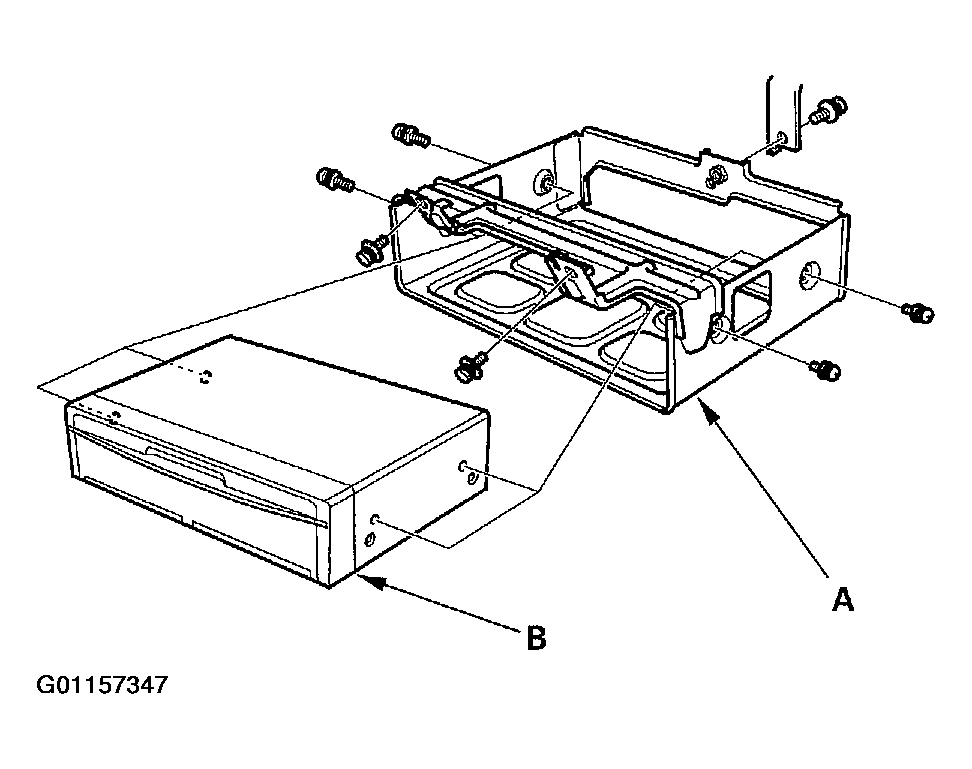

    Fig 1: Removing The Navigation Unit Bracket ('00 Model Shown)
    G01157347Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the navigation unit (B) from the bracket.
  3. Install the parts in the reverse order of removal.
