Display Unit Inputs And Outputs For Connector B (20P)

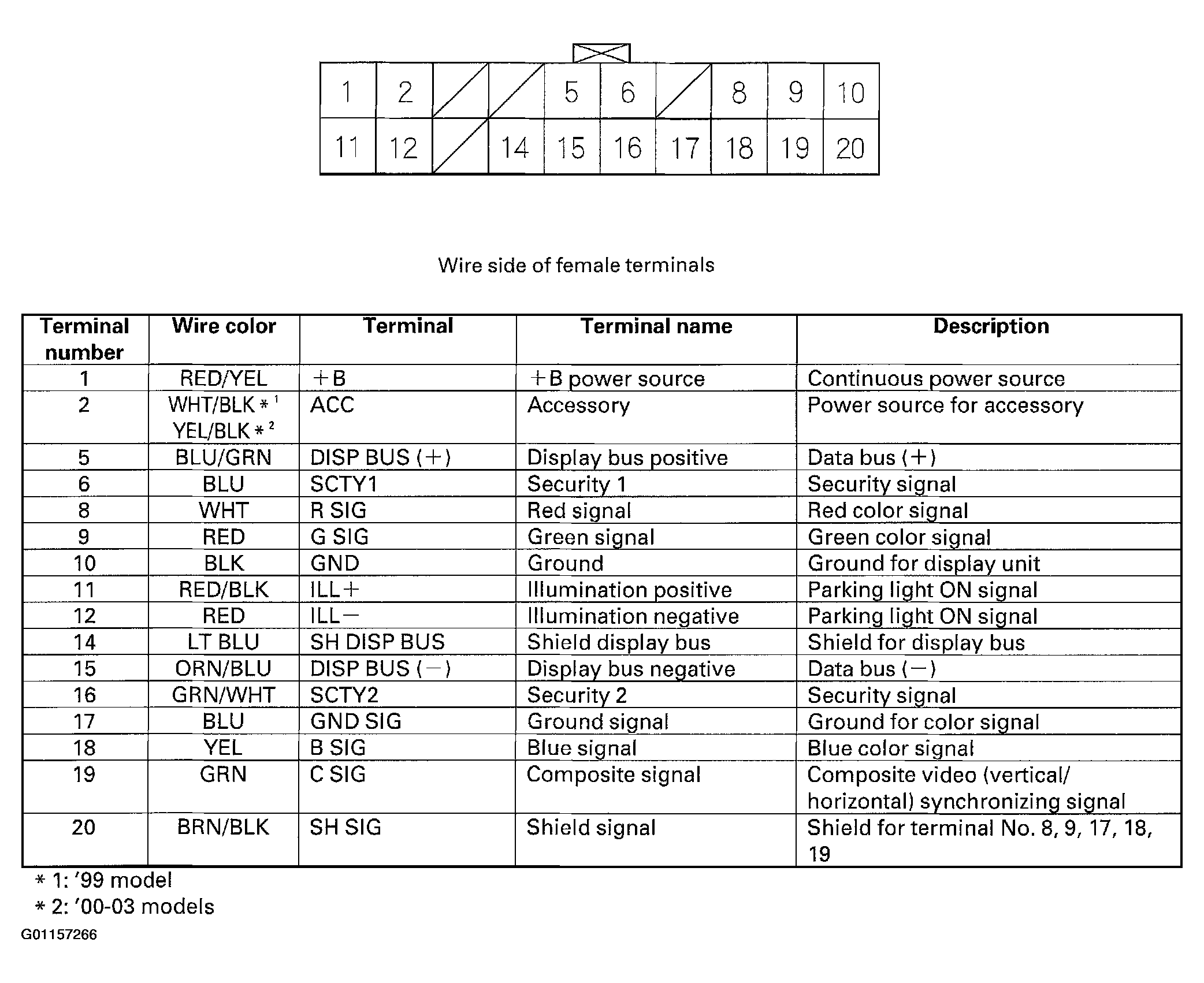

Fig 1: Identifying Display Unit Connector B (20P) Terminals & Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
