Navigation Unit Inputs And Outputs For Connector A (12P)

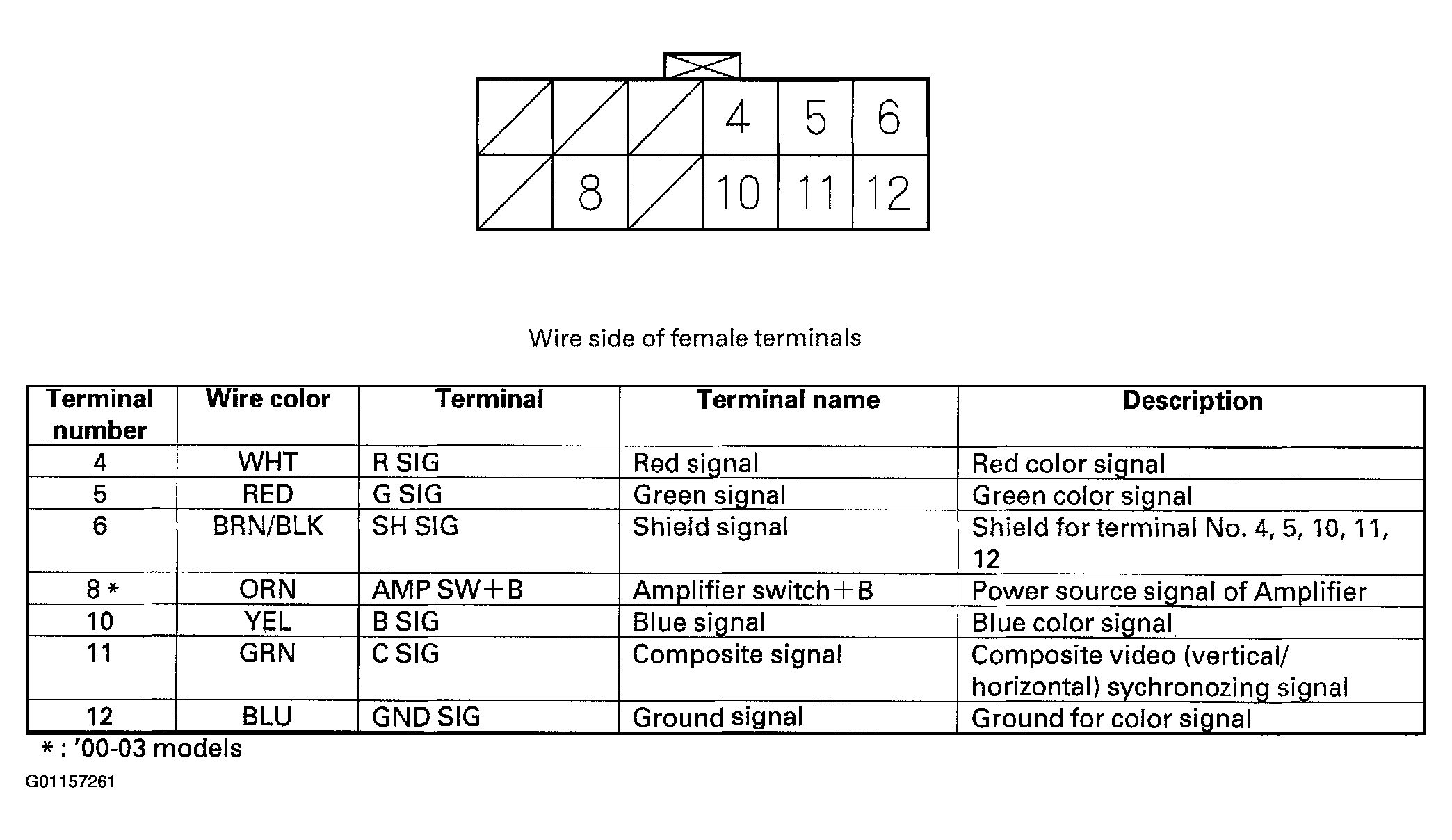

Fig 1: Identifying Navigation Unit Connector A (12P) Terminals & Inputs and Outputs
G01157261Courtesy of AMERICAN HONDA MOTOR CO., INC.
