Radio Remote Switch Test/ Replacement

Remove the two screws from the radio remote switch (A).

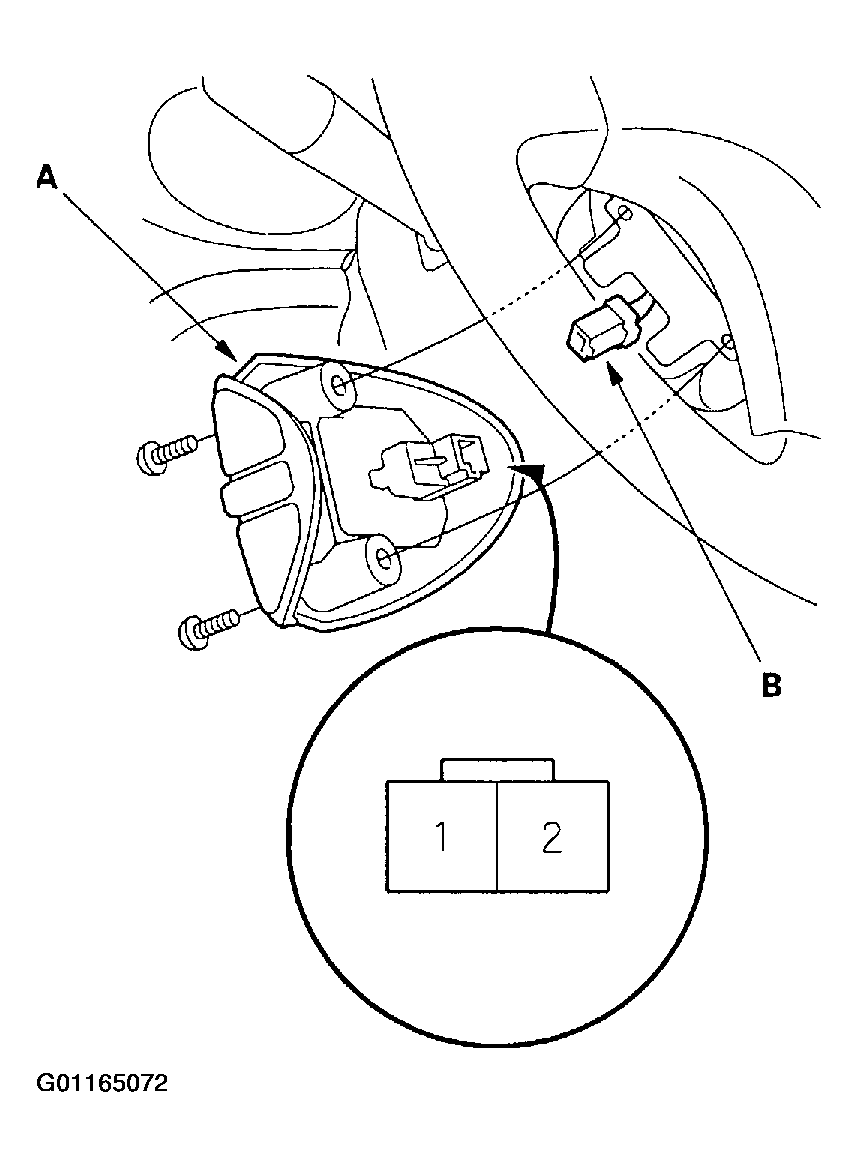

Fig 1: Removing The Radio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the radio remote switch.
Measure resistance between the No. 1 and No. 2 terminals in each switch position according to the chart.

Fig 2: Radio Remote Switch Resistance Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
