Circuit Diagram

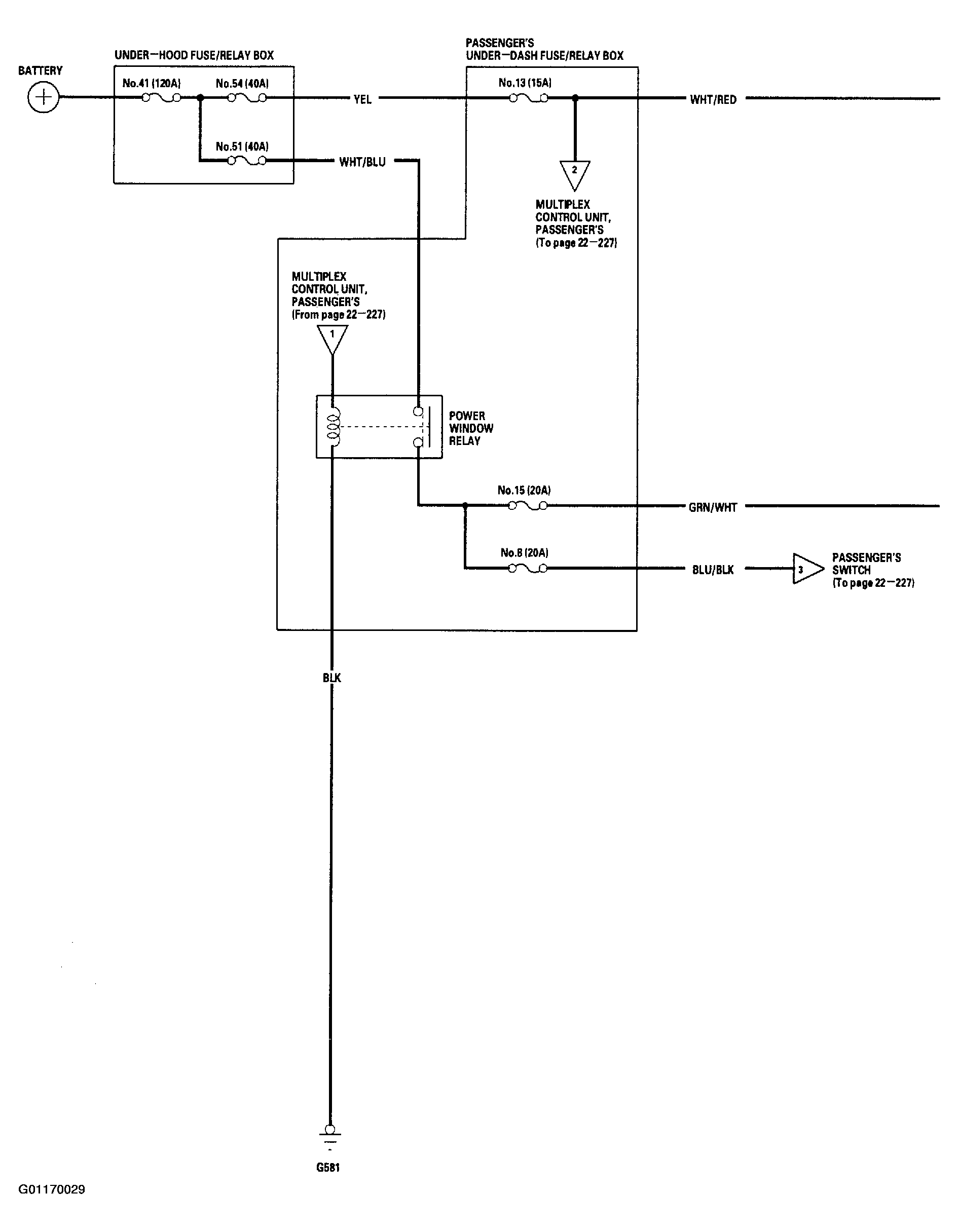

Fig 1: Power Window System Wiring Diagram ('01-02 Models - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

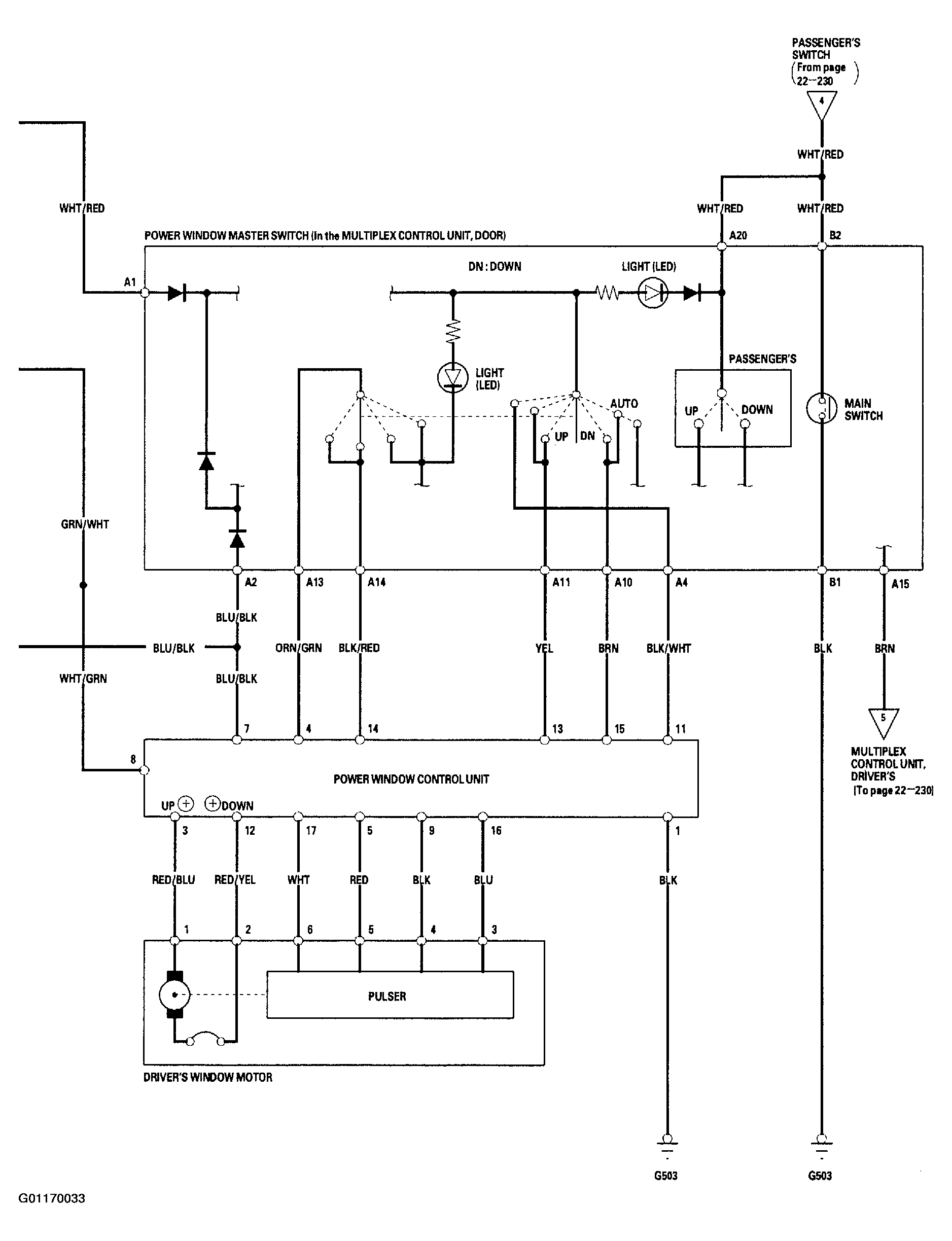

Fig 2: Power Window System Wiring Diagram ('01-02 Models - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

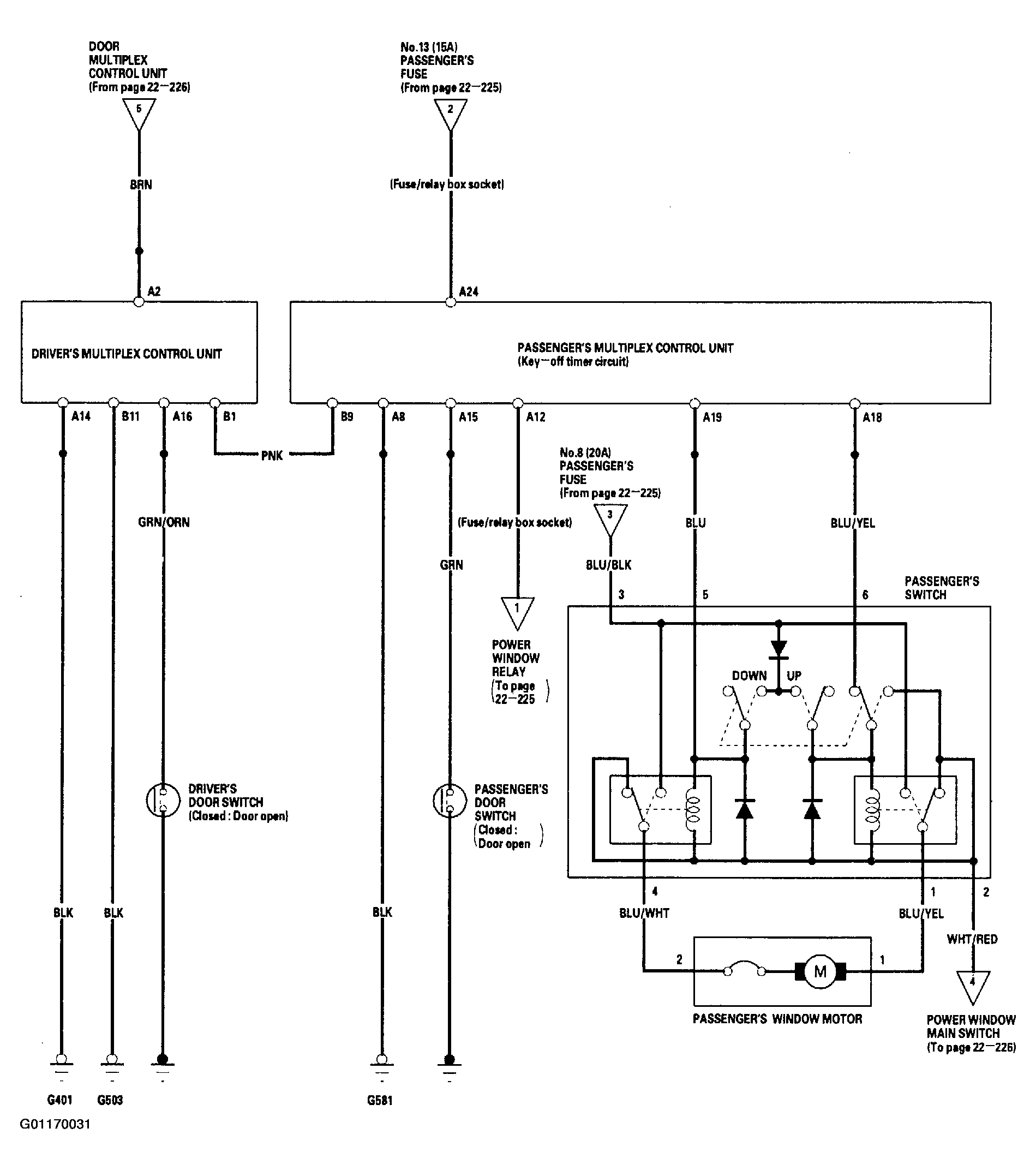

Fig 3: Power Window System Wiring Diagram ('01-02 Models - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

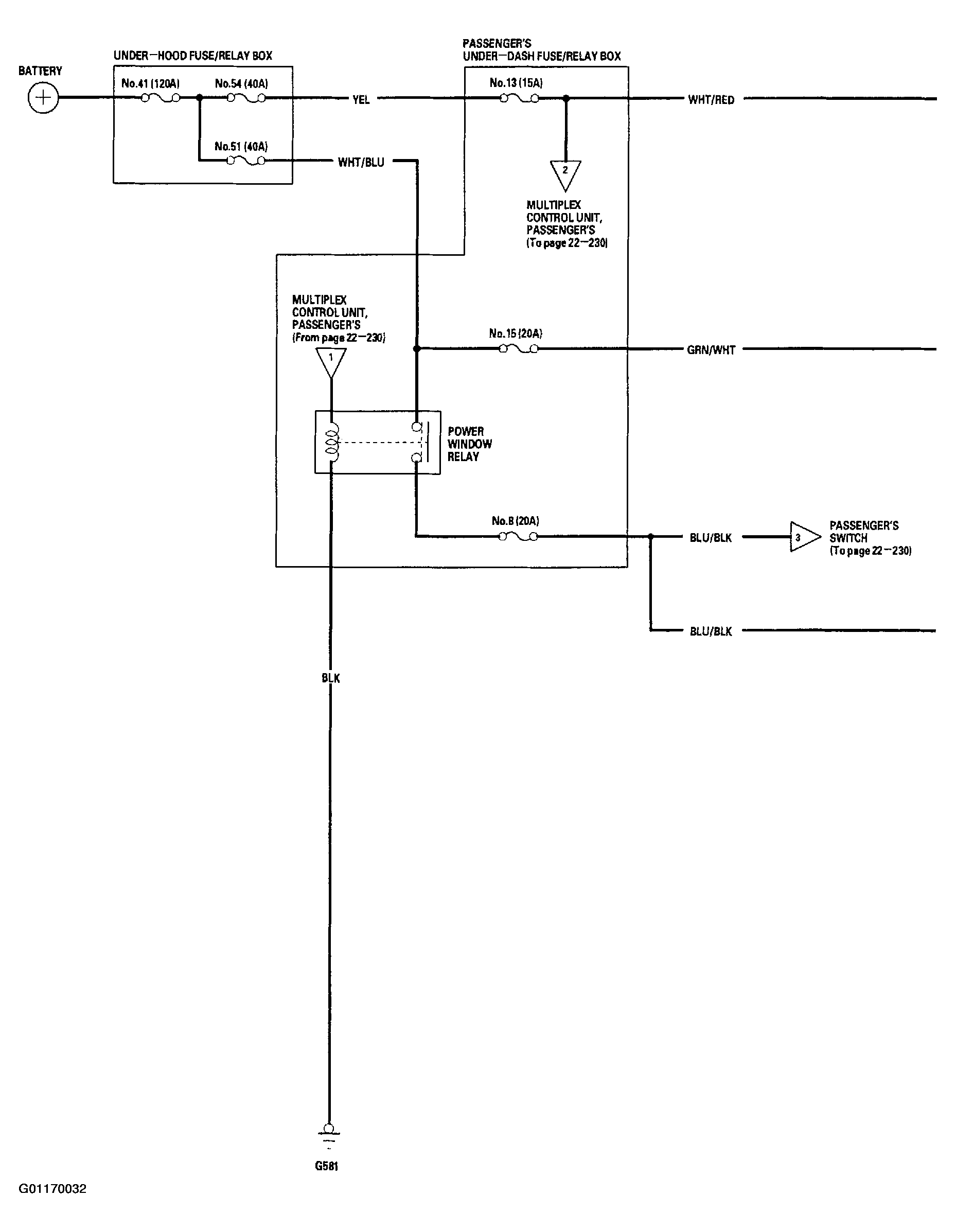

Fig 4: Power Window System Wiring Diagram ('03 Model - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

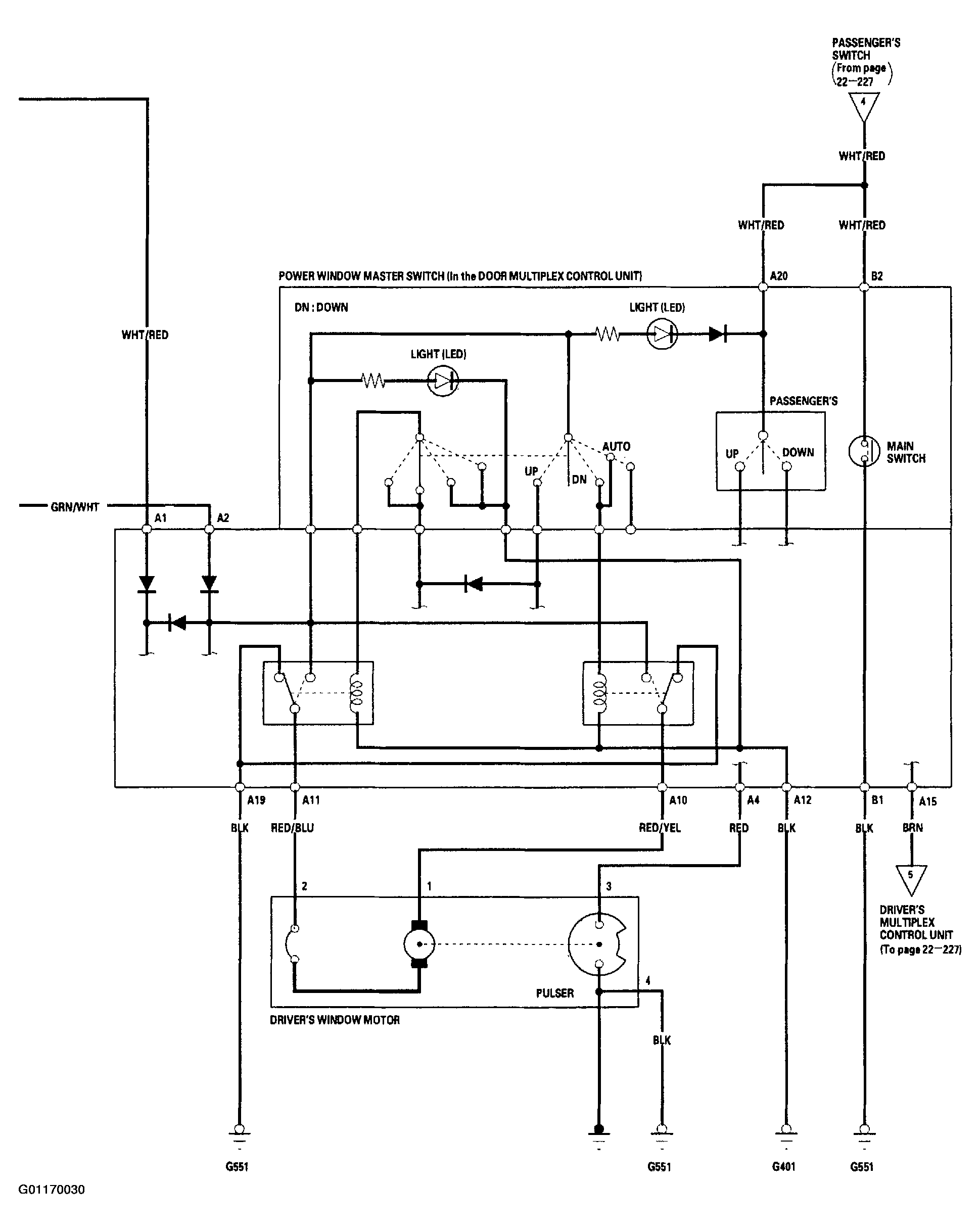

Fig 5: Power Window System Wiring Diagram ('03 Model - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

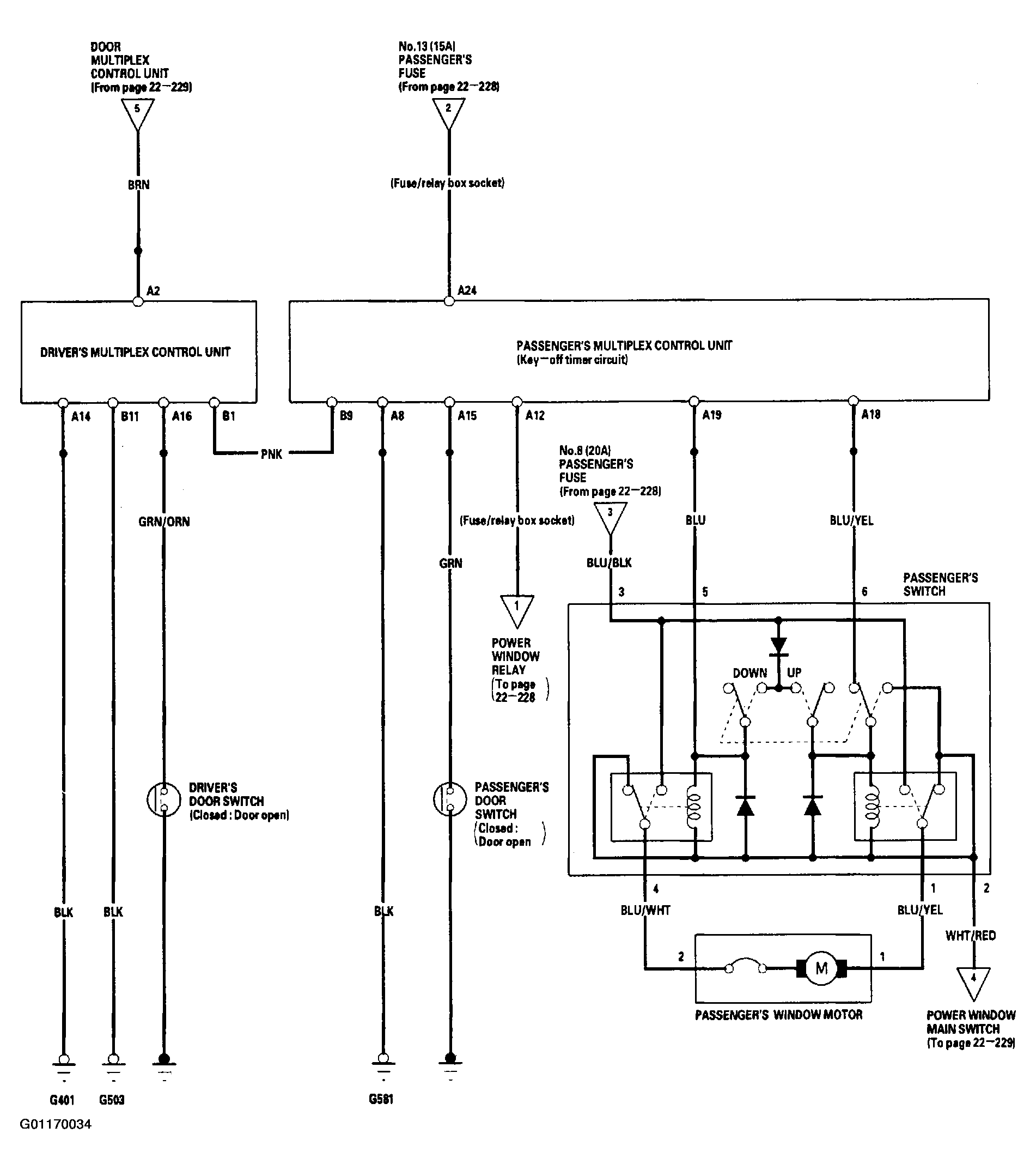

Fig 6: Power Window System Wiring Diagram ('03 Model - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
