Under-Dash Fuse/Relay Box, Driver's Connector End View

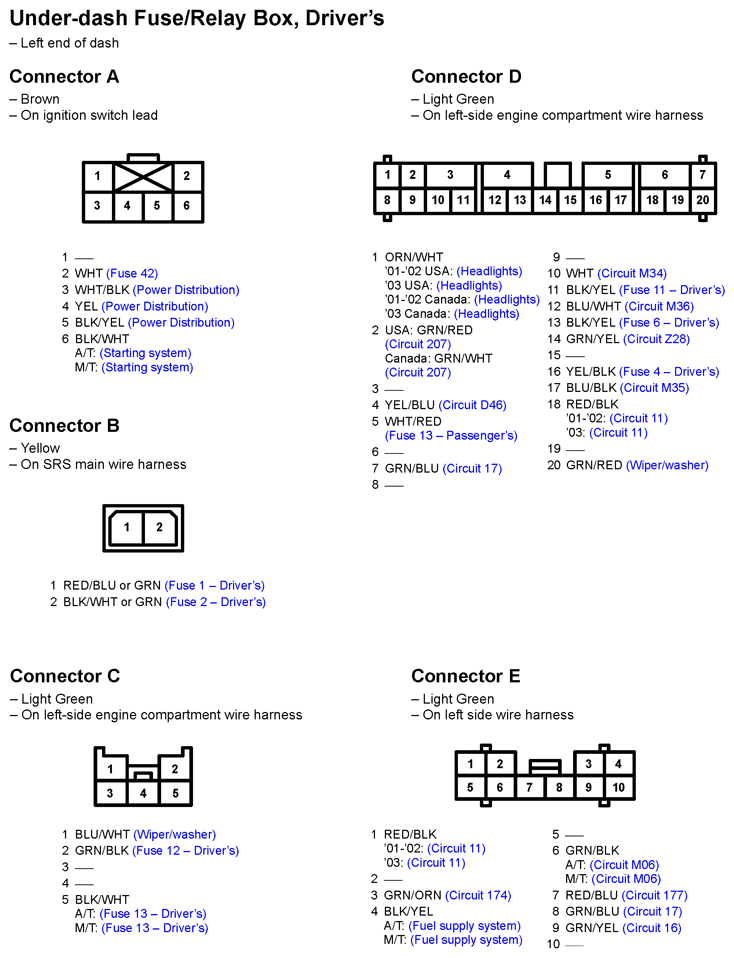

Fig 1: Under-Dash Fuse/Relay Box, Driver's Connector End View (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Under-Dash Fuse/Relay Box, Driver's Connector End View (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

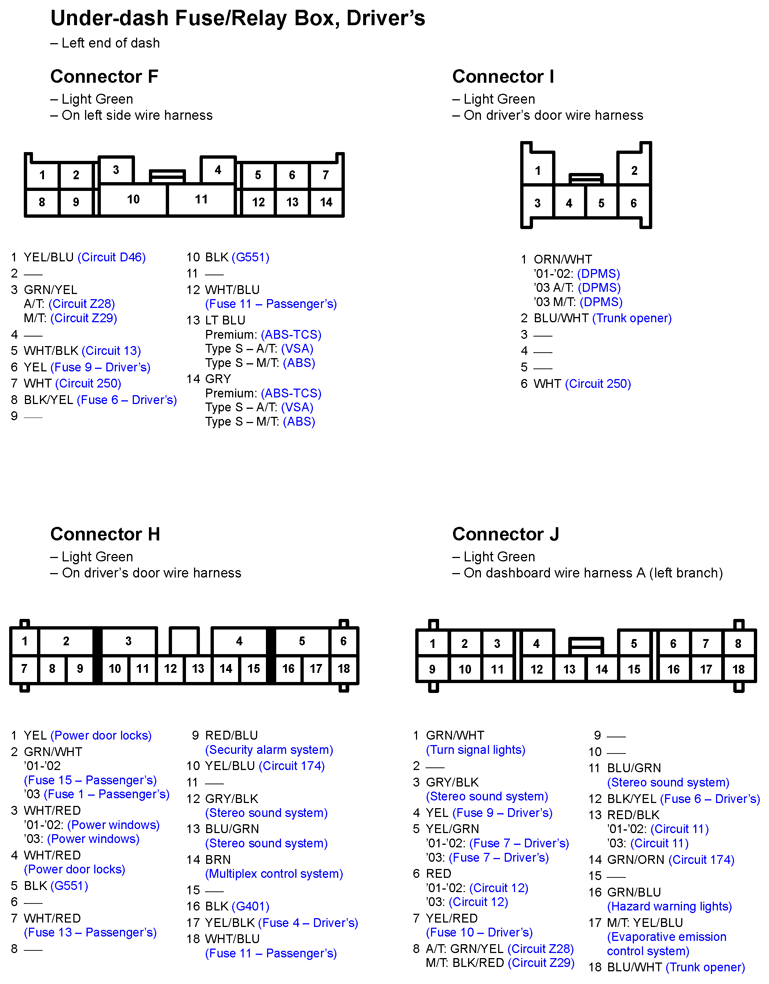

Fig 3: Under-Dash Fuse/Relay Box, Driver's Connector End View (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

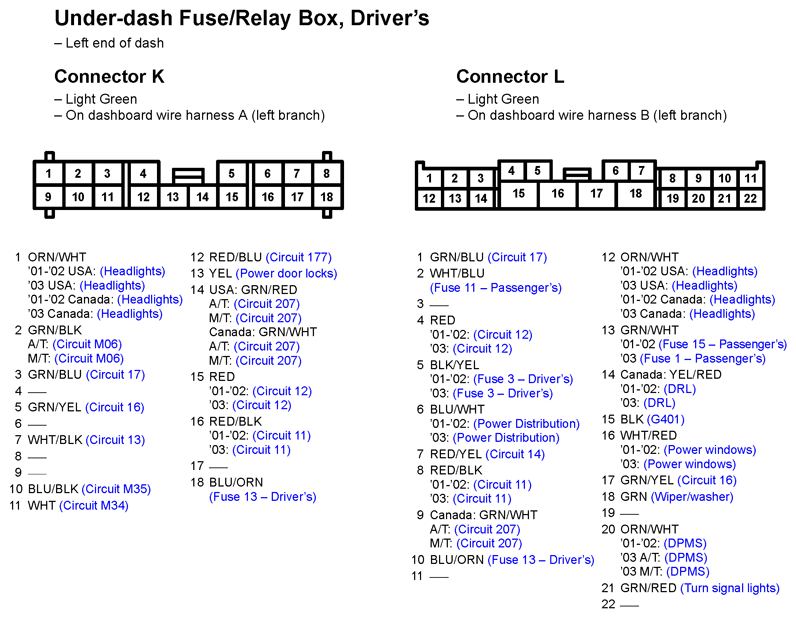

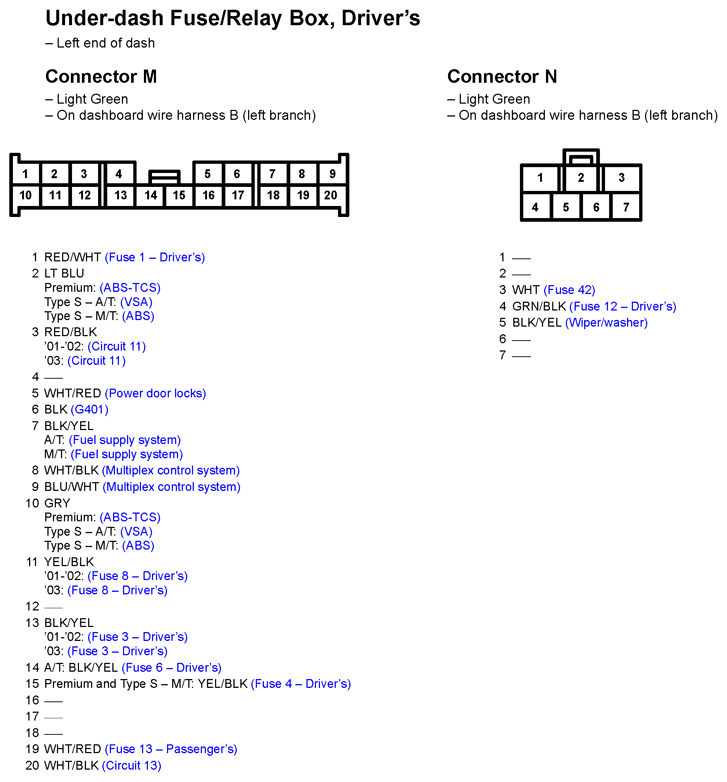

Fig 4: Under-Dash Fuse/Relay Box, Driver's Connector End View (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
