Oil Pump: Notes
Illustration for oil pump, see
Fig 1
.

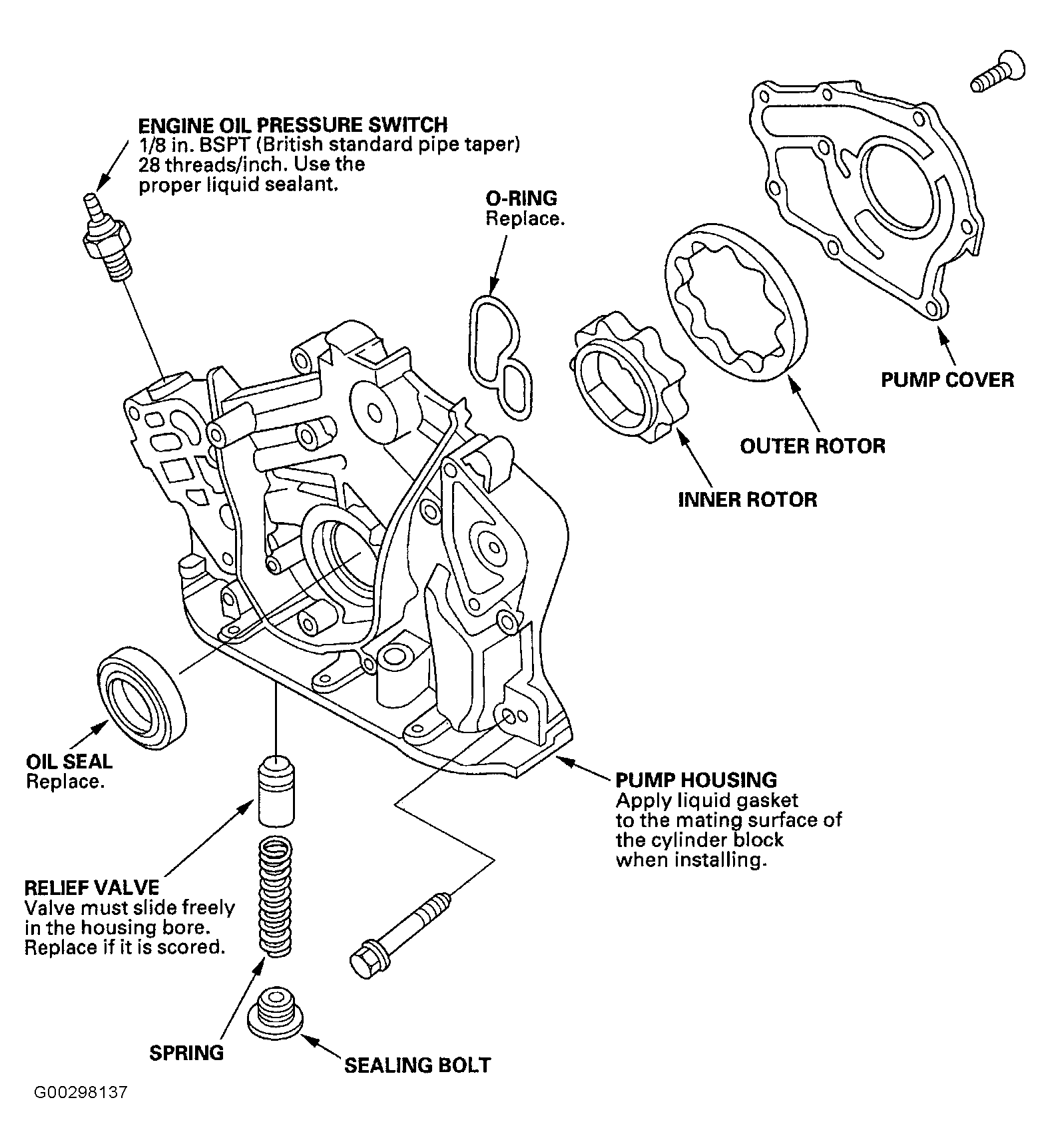

Fig 1: Exploded View Of Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.
