Keyless Entry Module: Locations

Relay And Control Unit Locations - Dashboard:

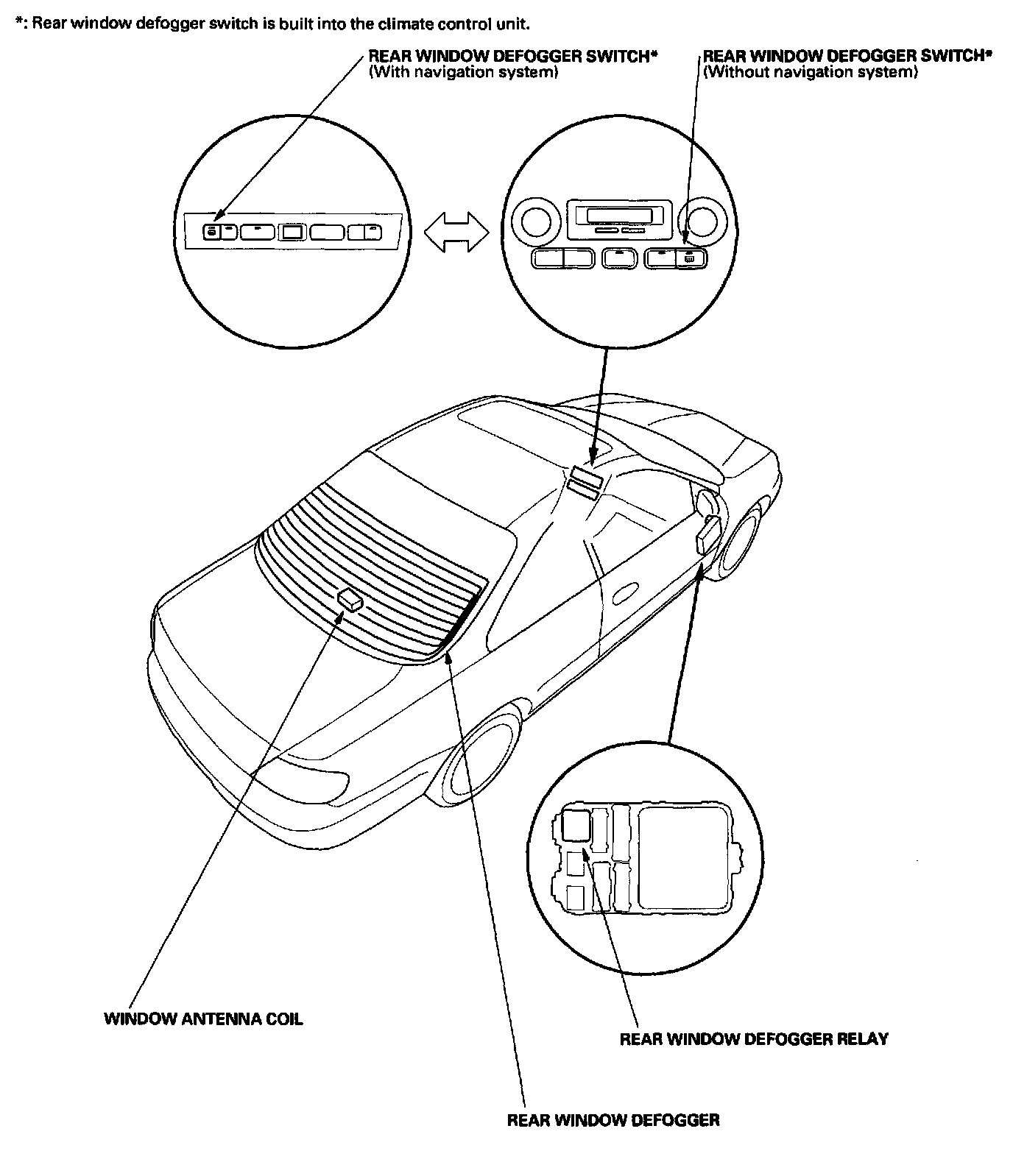

Rear Window Defogger Component Location Index:

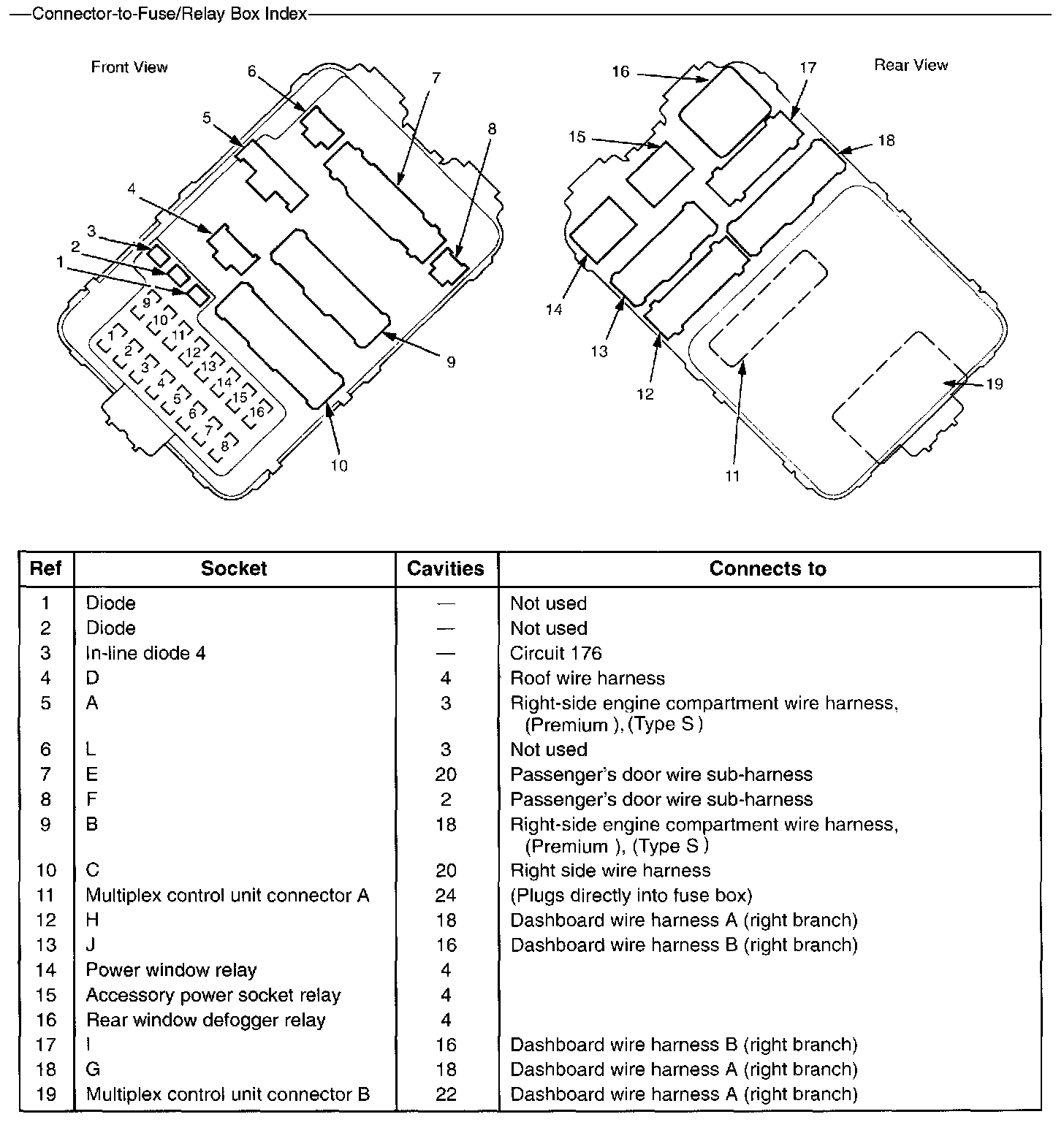

Passenger's Under-dash Fuse/Relay Box:
