Cruise Control Set/Resume/Cancel Switch Test/Replacement

Set/Resume/Cancel Switch Test/Replacement

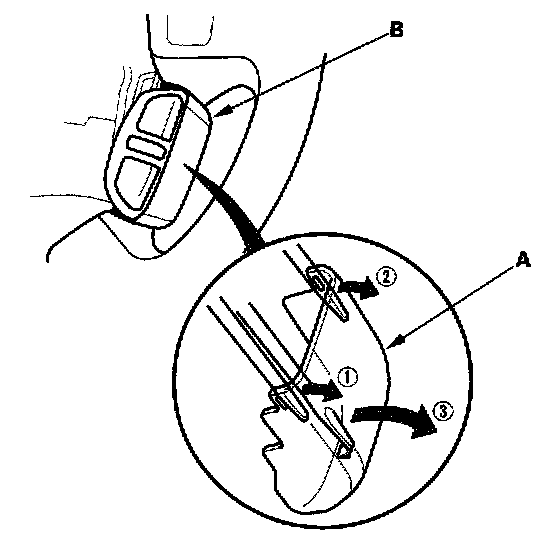

1. Carefully remove the set/resume/cancel switch cover (A) by prying between the cover and the switch (B) in the sequence shown.

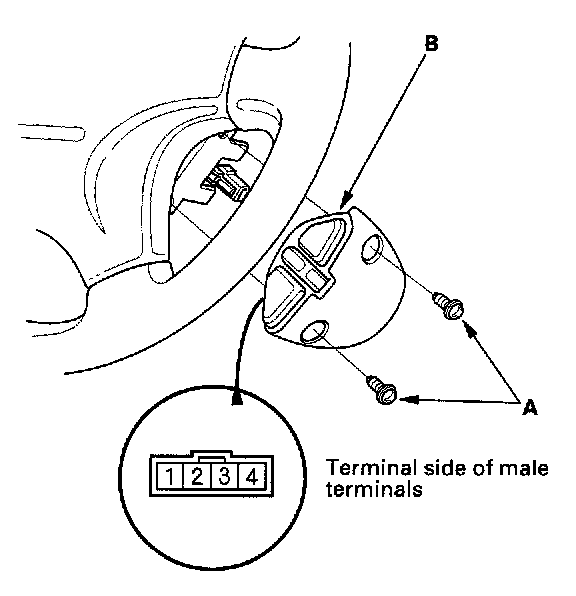

2. Remove the two screws (A), then remove the switch (B).

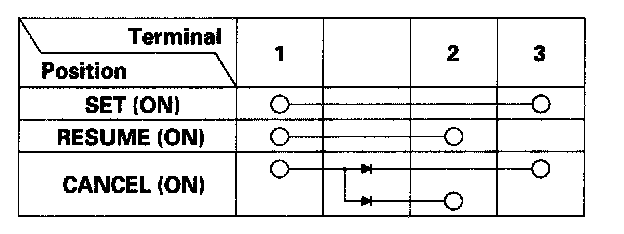

3. Check for continuity between the terminals in each switch position according to the table.

- If there is continuity and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
