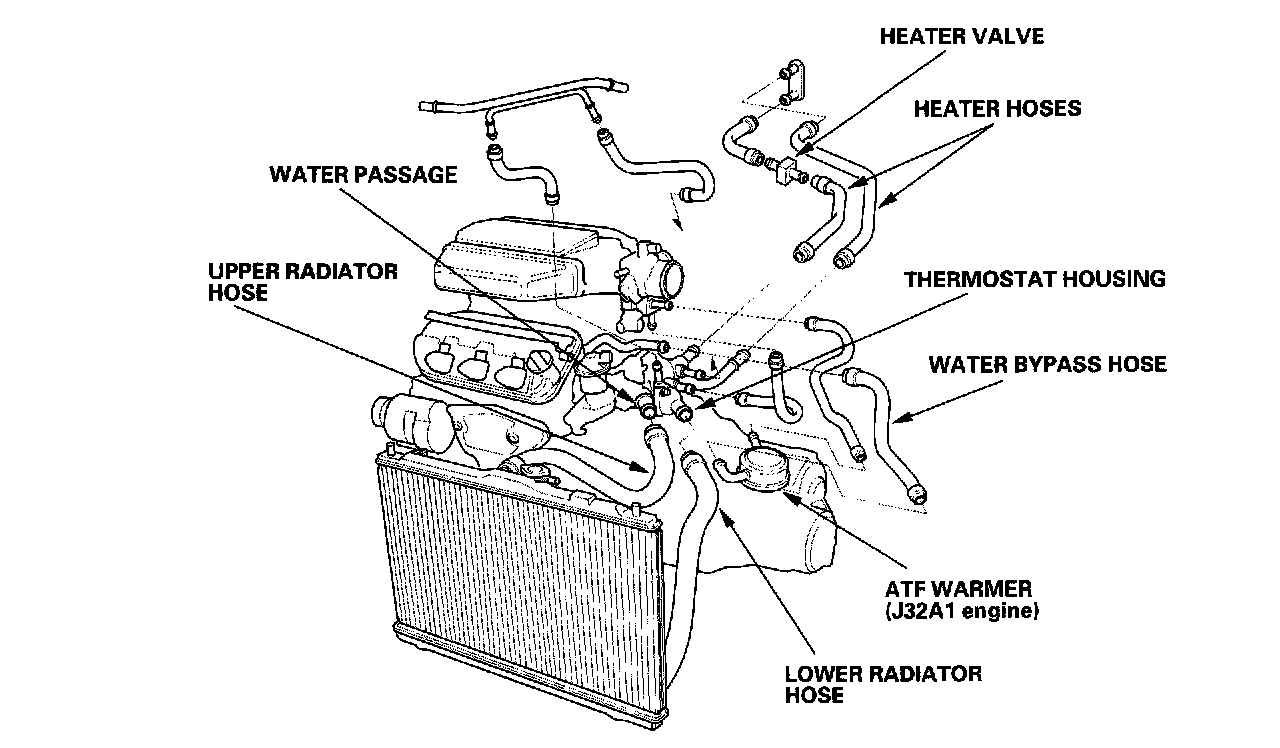

System Diagram

Component Location Index

J32A1 engine, J32A2 engine (M/T)

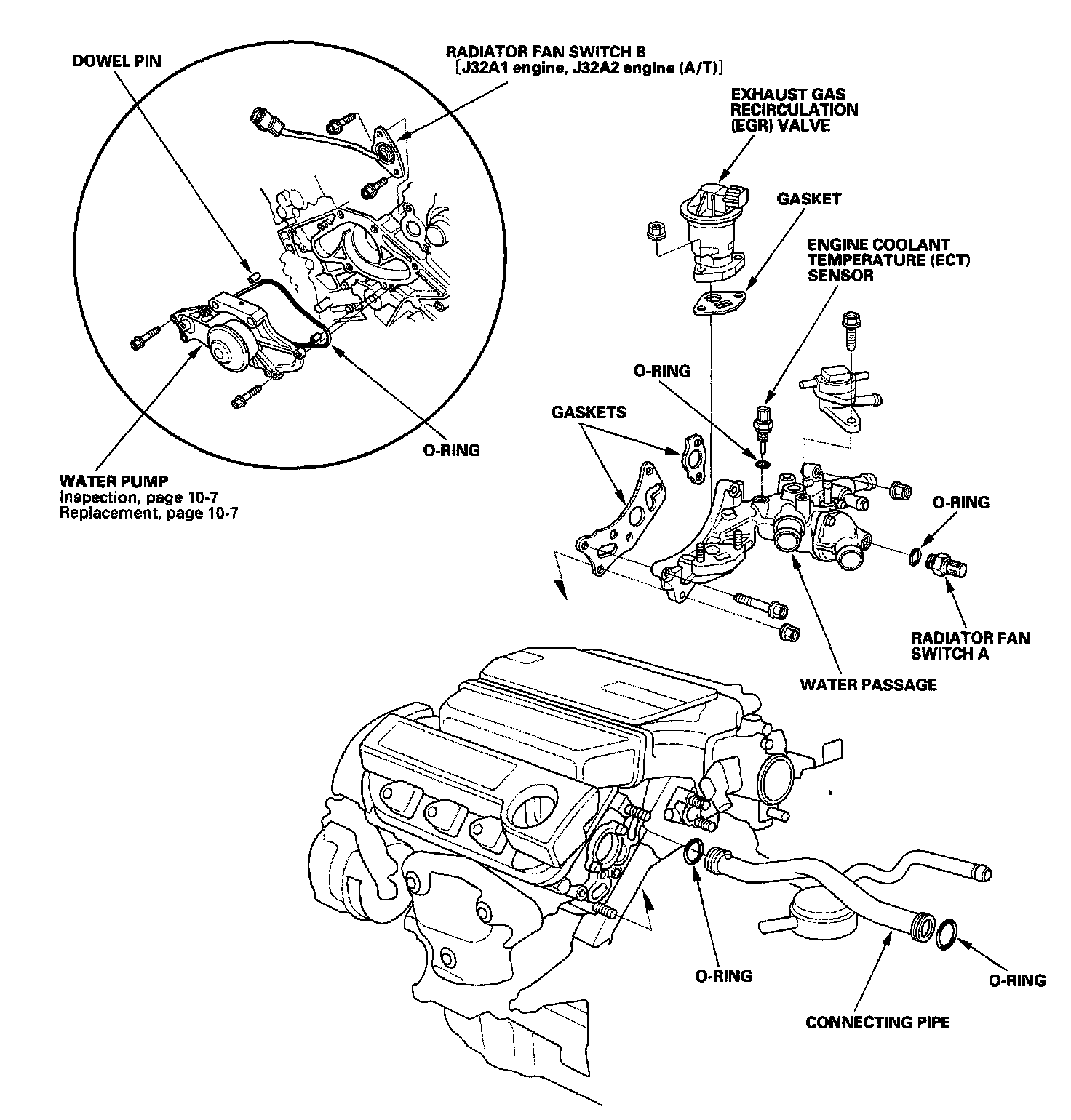

Part 1 of 3

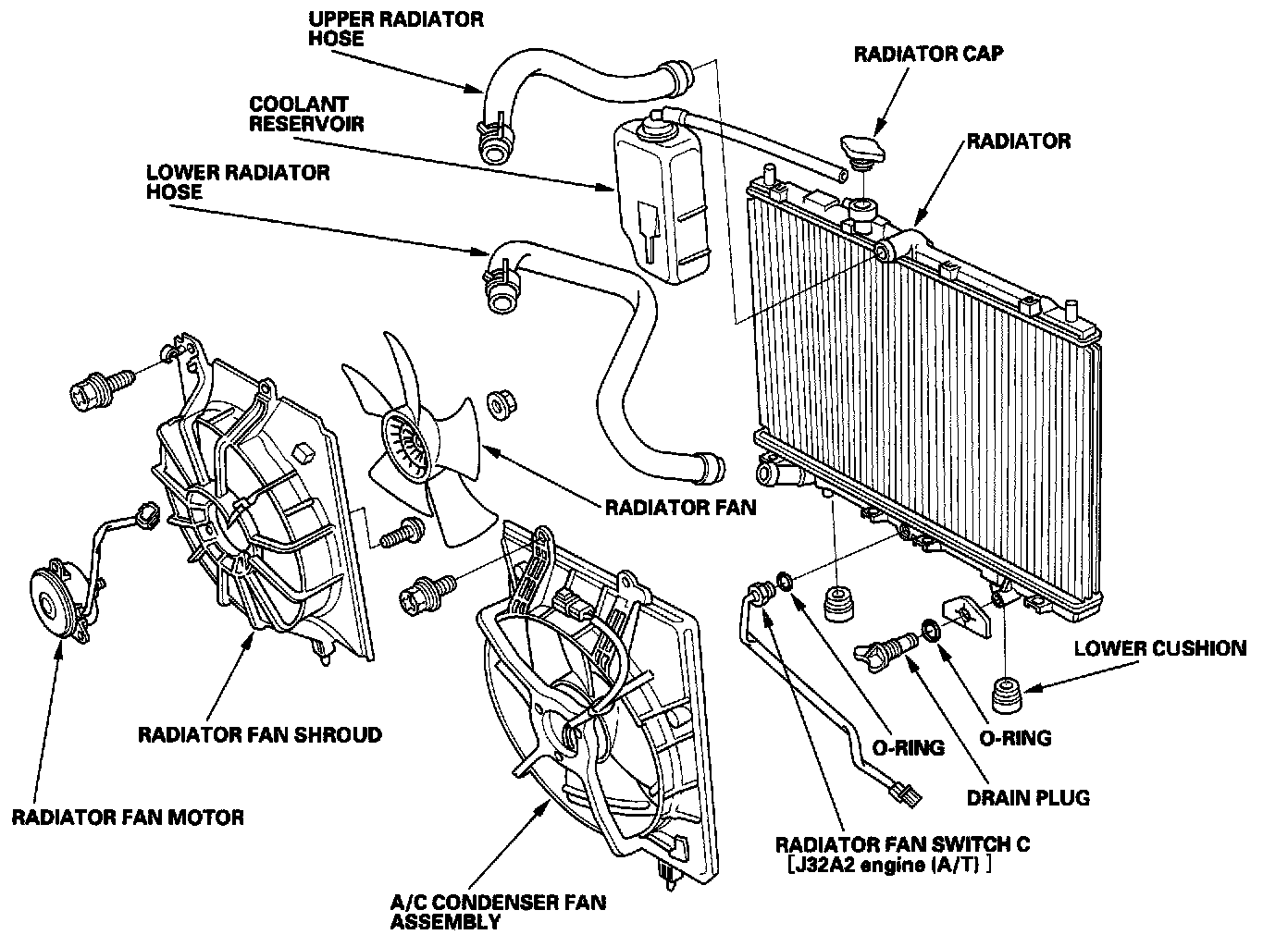

Part 2 of 3





Part 3 of 3

J32A2 engine (A/T)





Part 1 of 3





Part 2 of 3





Part 3 of 3
