System Diagram

Exhaust Pipe and Muffler Replacement

NOTE: Use new gaskets and self-locking nuts when reassembling.

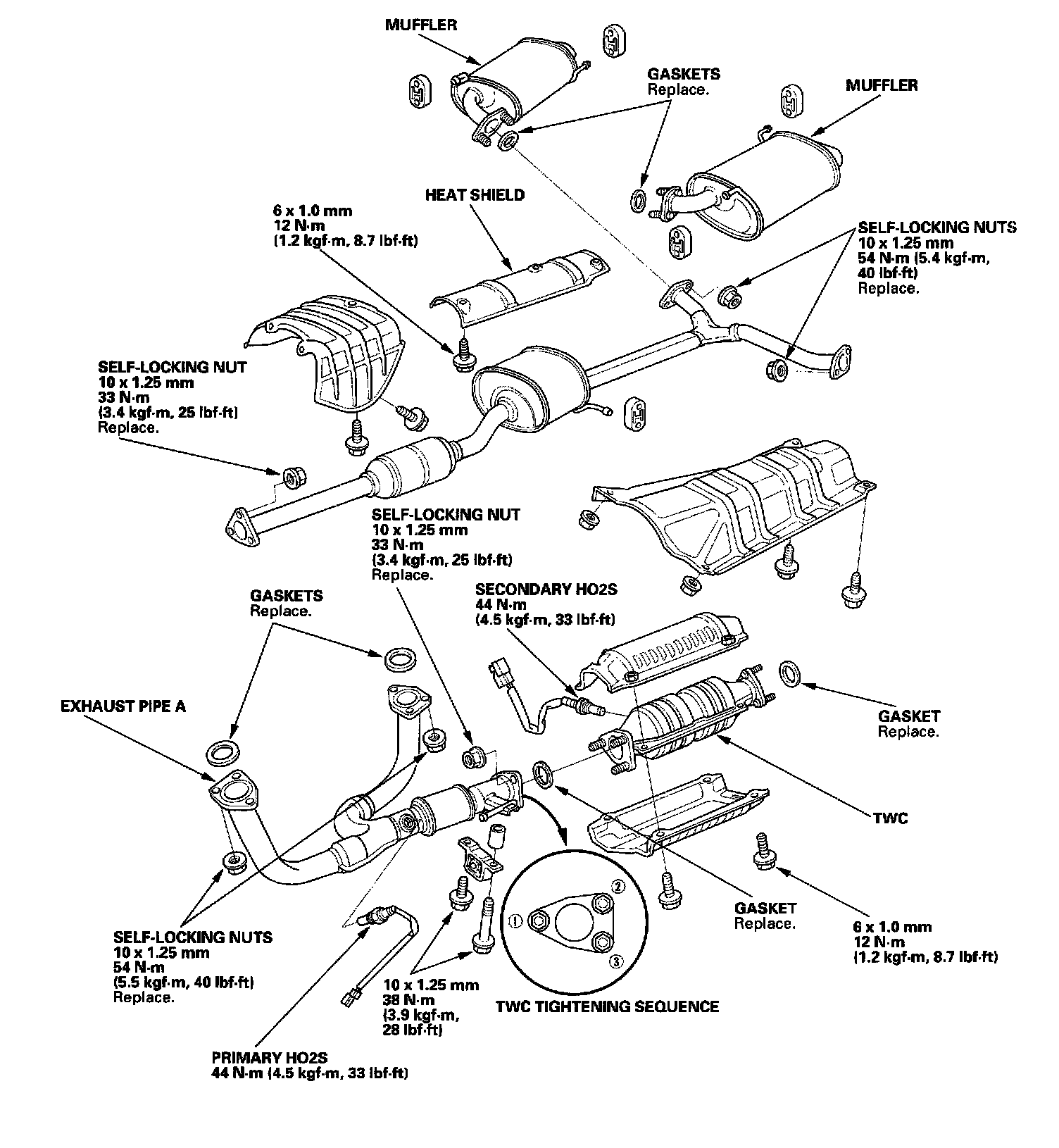

J32A1 engine

NOTE: Use new gaskets and self-locking nuts when reassembling.

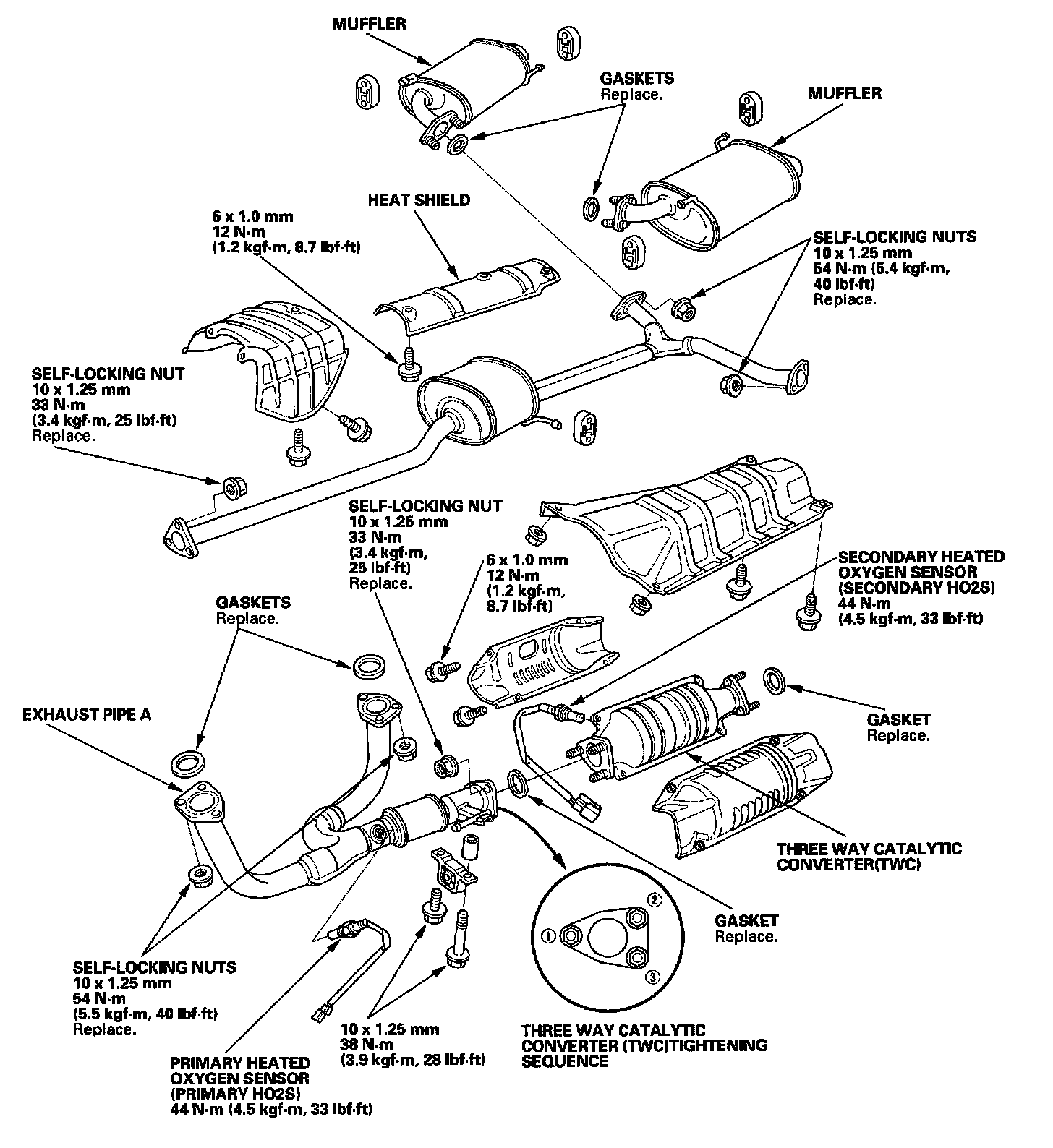

J32A2 engine
