Main Relay (Computer/Fuel System): Locations

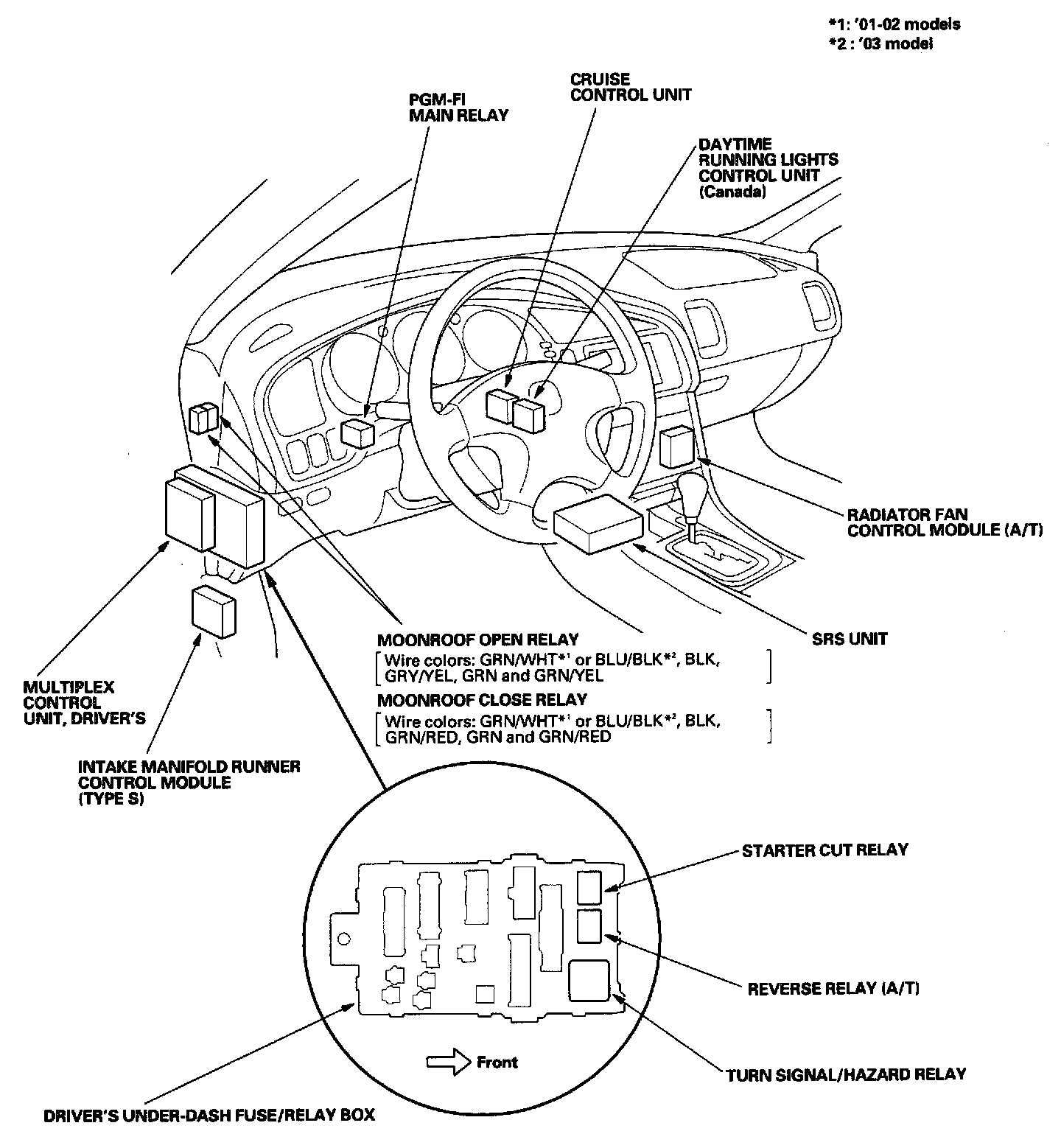

Relay And Control Unit Locations - Dashboard:

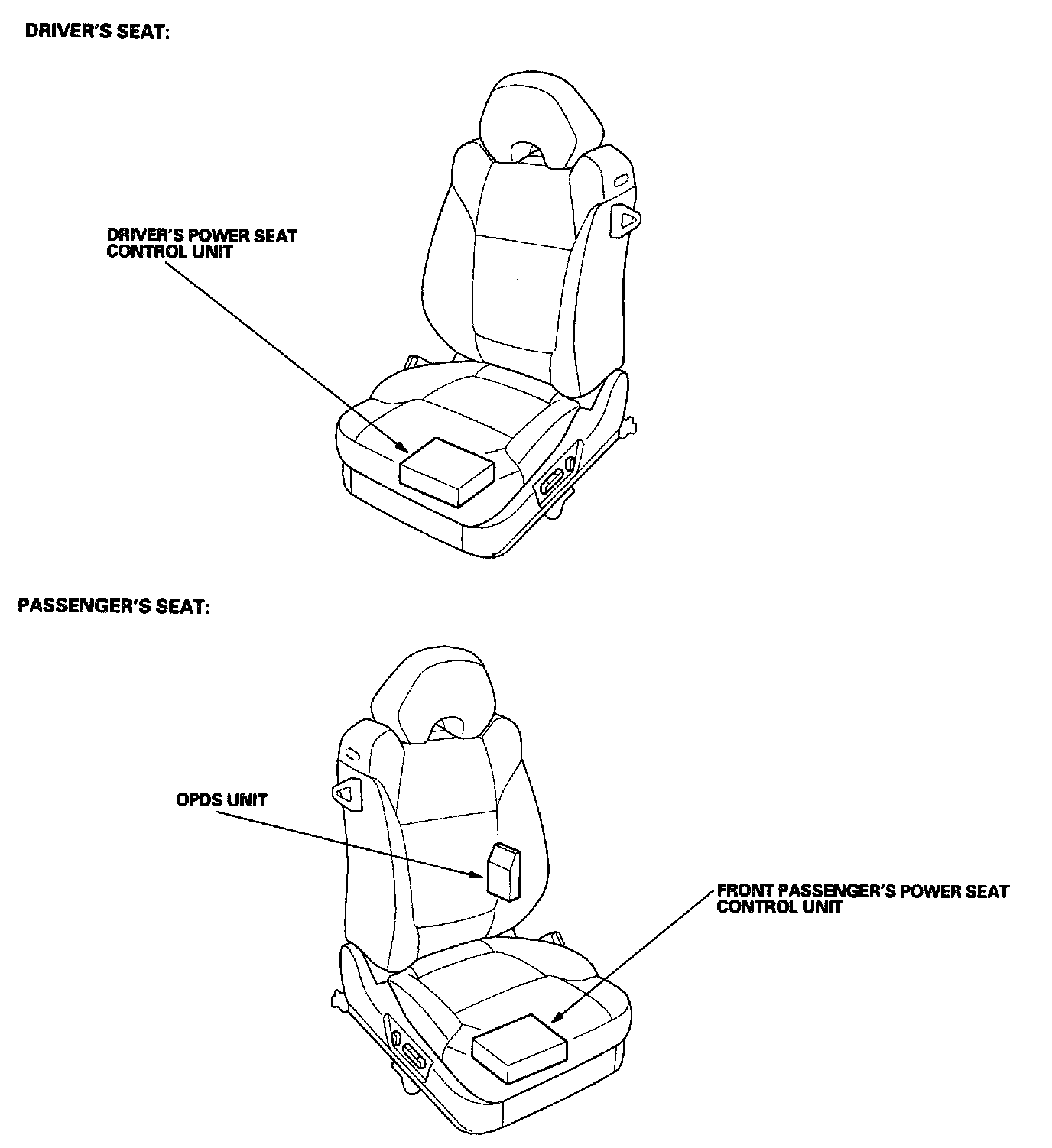

Relay And Control Unit Locations - Seats:

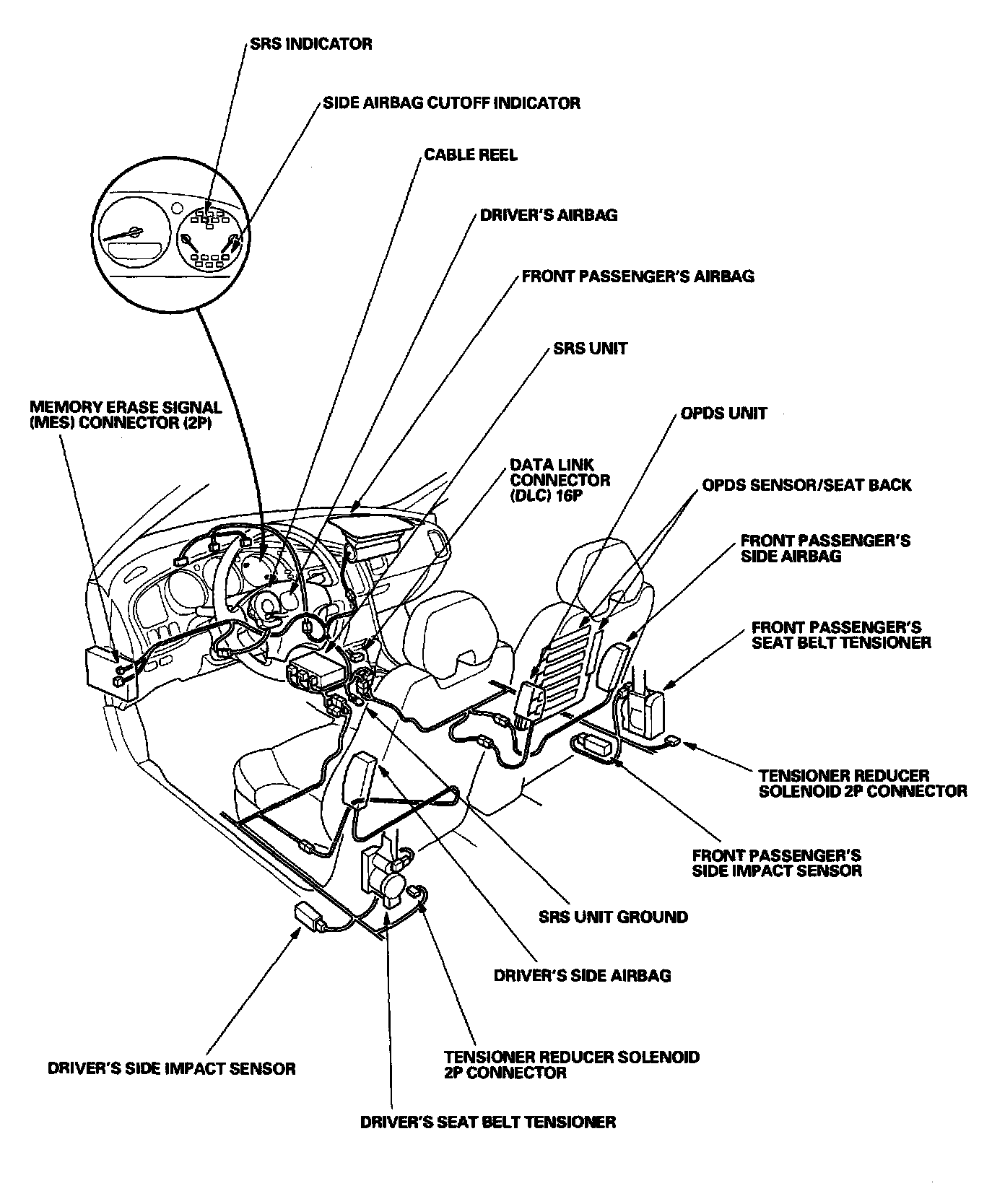

SRS Component Location Index:
