Bolt Sequence

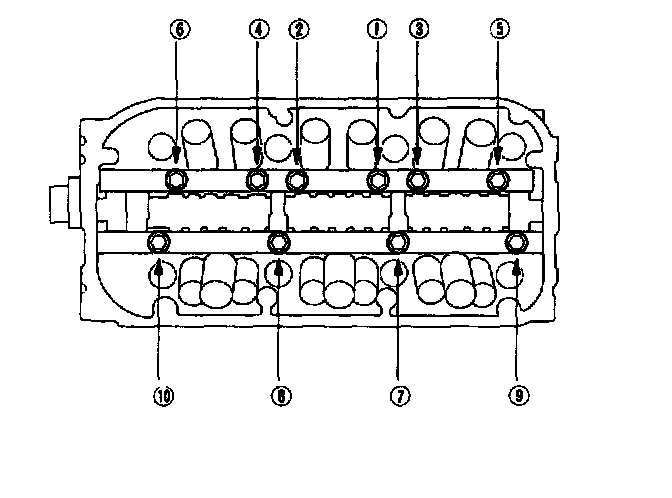

Camshaft/Rocker Arms:

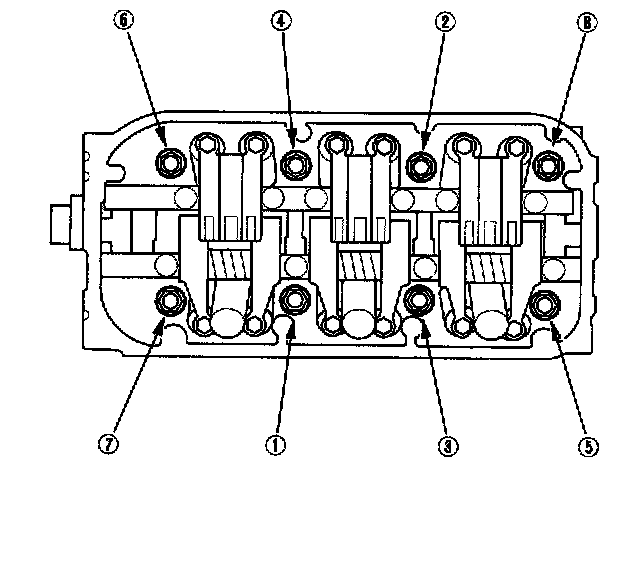

Cylinder Head Bolts:



Intake Manifold:

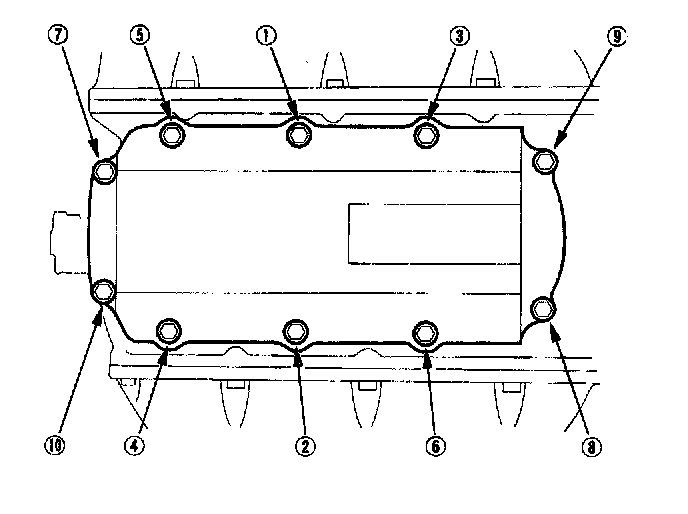

Upper Cover Bolts:



Crankshaft and Piston:



Oil Pump:
