Equalizer Unit Replacement
- Remove the instrument panel (see appropriate INSTRUMENT PANELS article).
- Remove the rear console and console panel
.
- Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION
).
- Remove the Navigation display unit
on vehicles with Navigation System,
, or remove the climate control unit
on vehicles without Navigation System
.

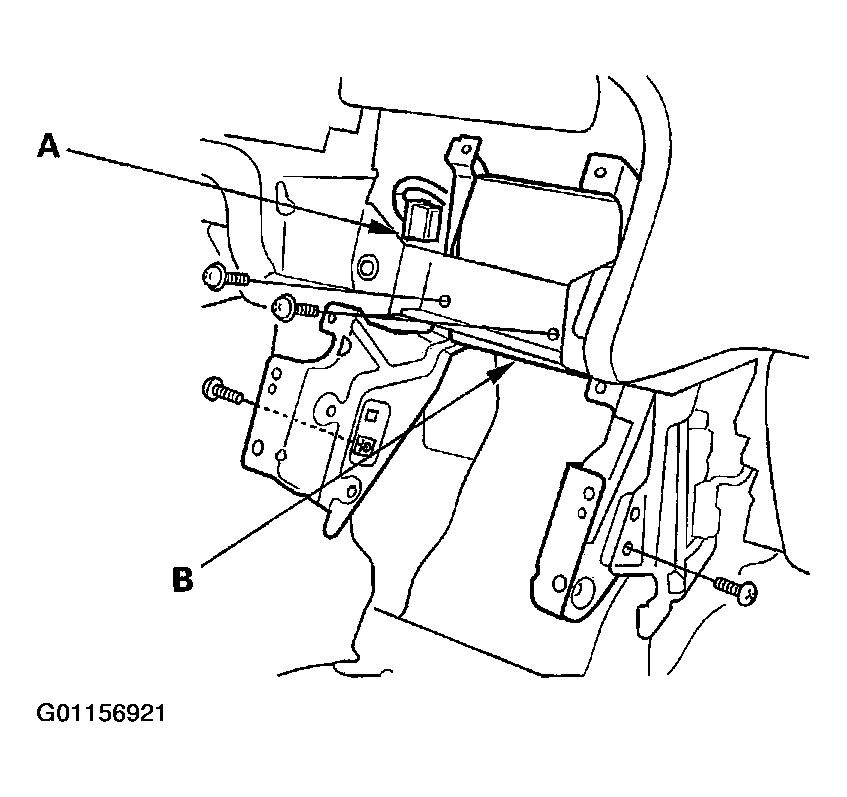

- Disconnect the 14P connector (A) from the equalizer unit (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the bracket from the dashboard.

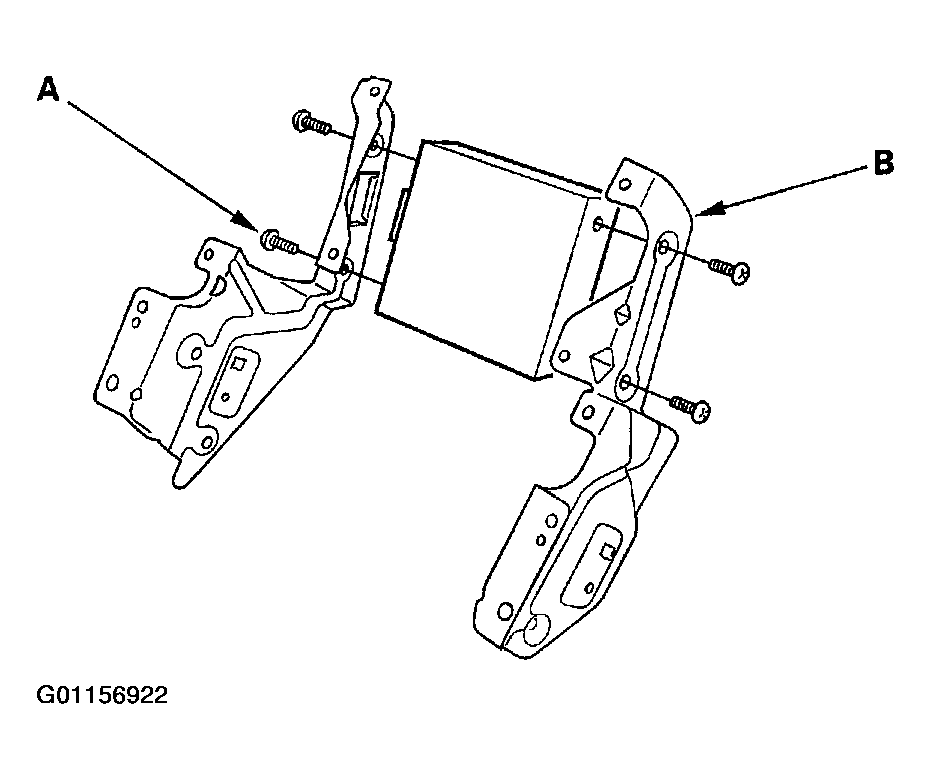

- Remove the mounting screws (A), then remove the equalizer unit from the bracket (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the equalizer unit in the reverse order of removal.
