Modulator Unit Removal and Installation: Removal

  1. Disconnect modulator unit connector A (10P), connector B (8P) and the pump motor 2P connector (C).

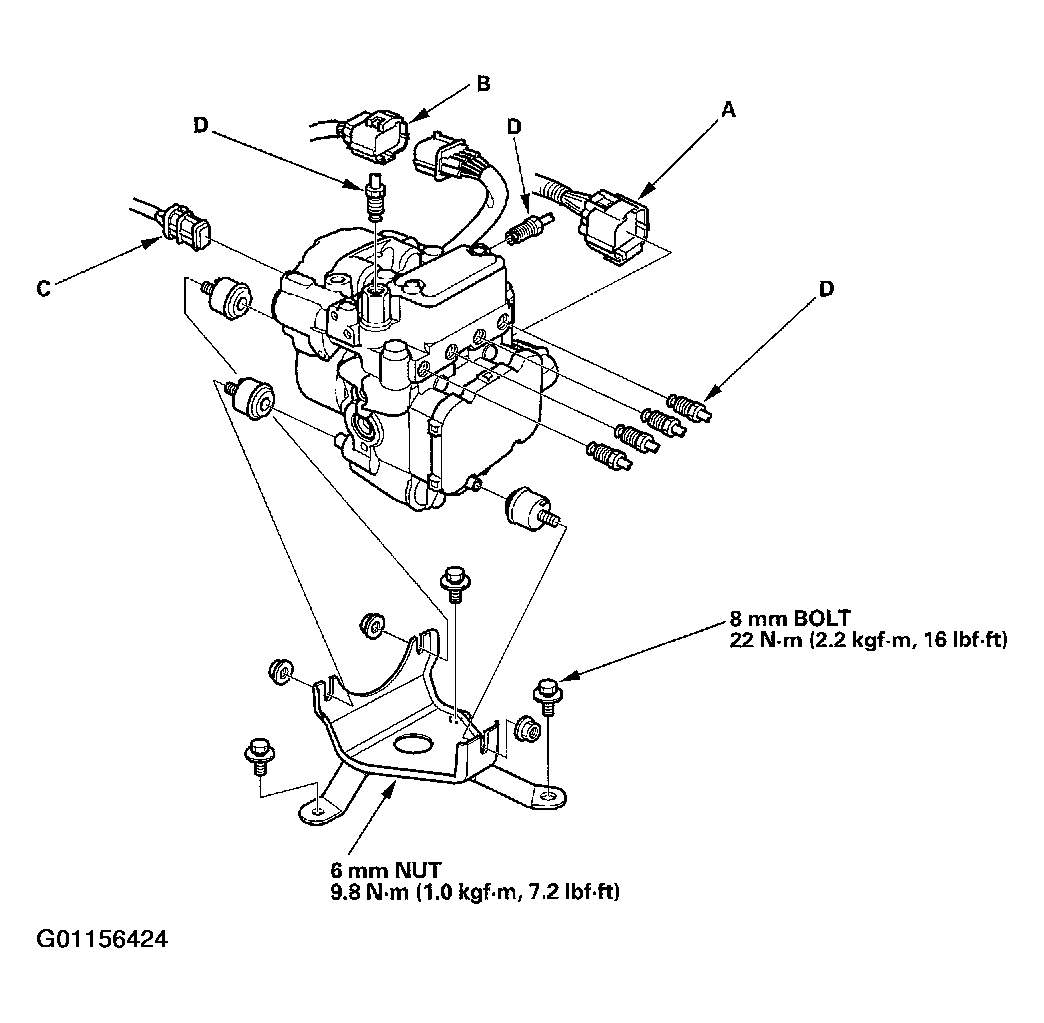

    Fig 1: Disconnecting Modulator Unit Connector A (10P)
    G01156424Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the six brake lines (D), then remove the modulator unit.
