VSA Control Unit Replacement

  1. Remove the passenger's kick panel.
  2. Remove the VSA control unit (A).

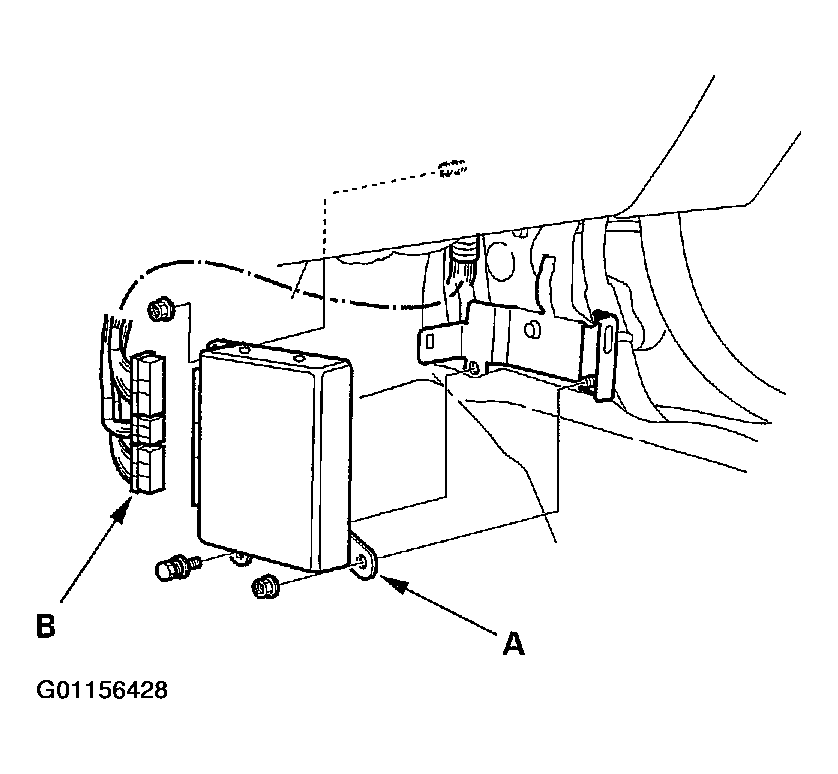

    Fig 1: Removing VSA Control Unit
    G01156428Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the VSA control unit connectors (B).
  4. Install the VSA control unit in the reverse order of removal.
  5. Do the neutral position memorization. See Neutral Position Memorization  .
