C552 Connector End View

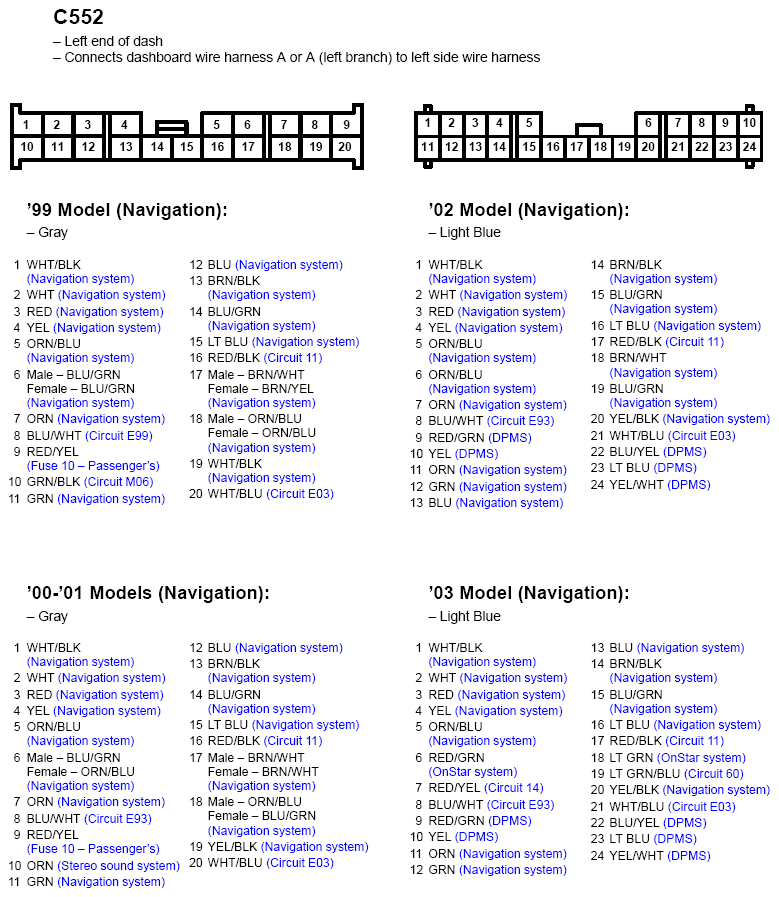

Fig 1: C552 Connector End View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: C552 Connector End View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
