Knock Sensor: Locations

PGM-FI System - Component Location Index:

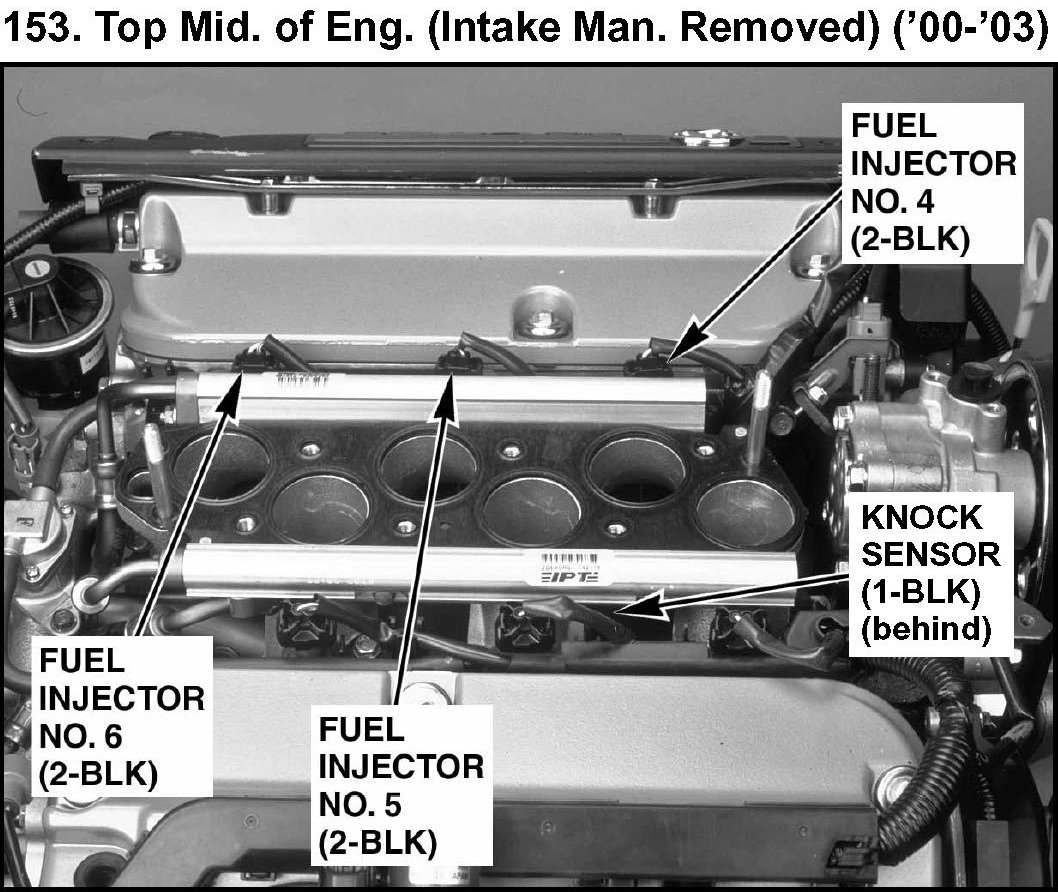

153. Top Mid. Of Eng. (Intake Man. Removed):
