Main Relay (Computer/Fuel System): Locations

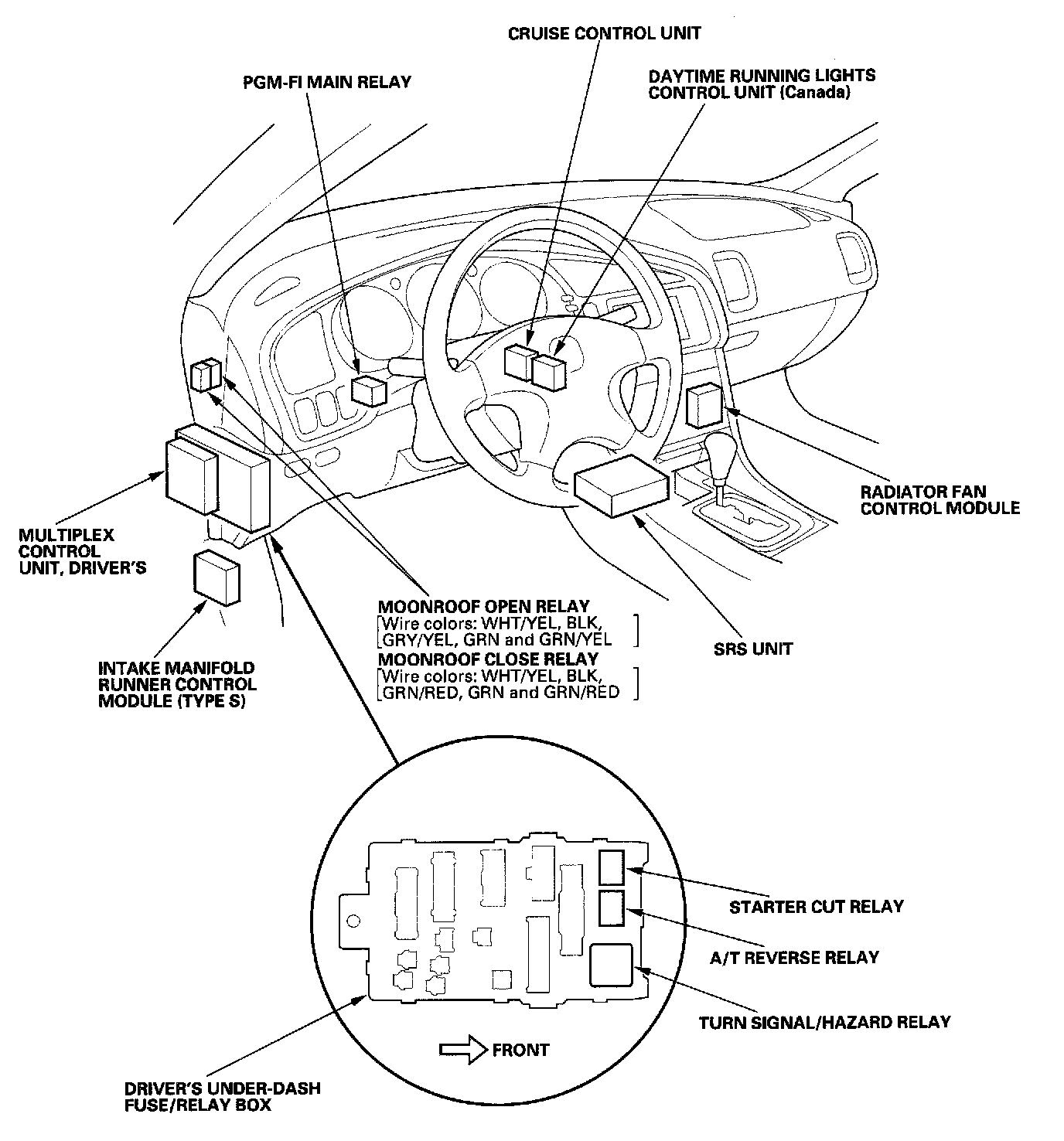

Relay And Control Unit Locations - Dashboard:

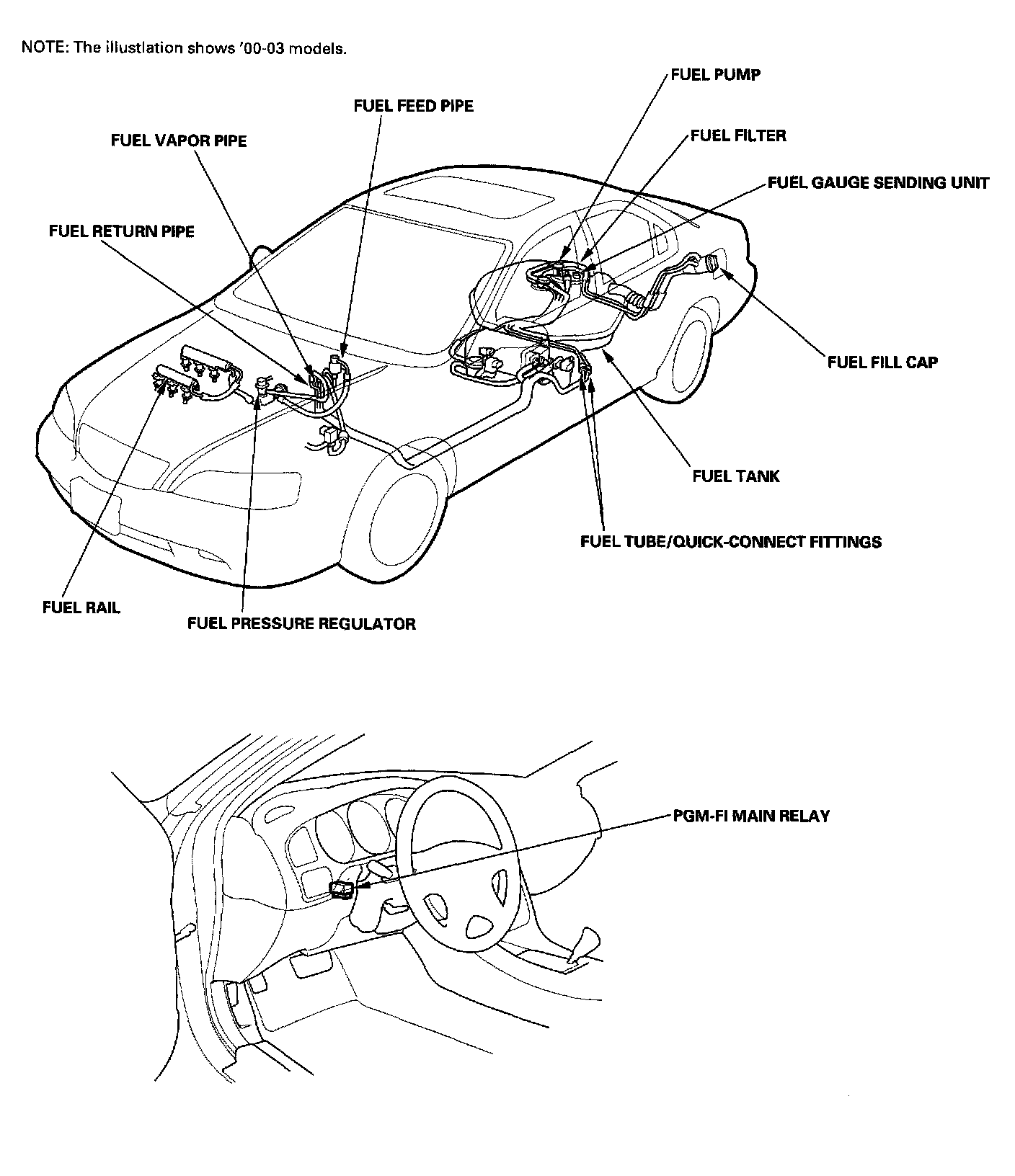

Fuel Supply System - Component Location Index:

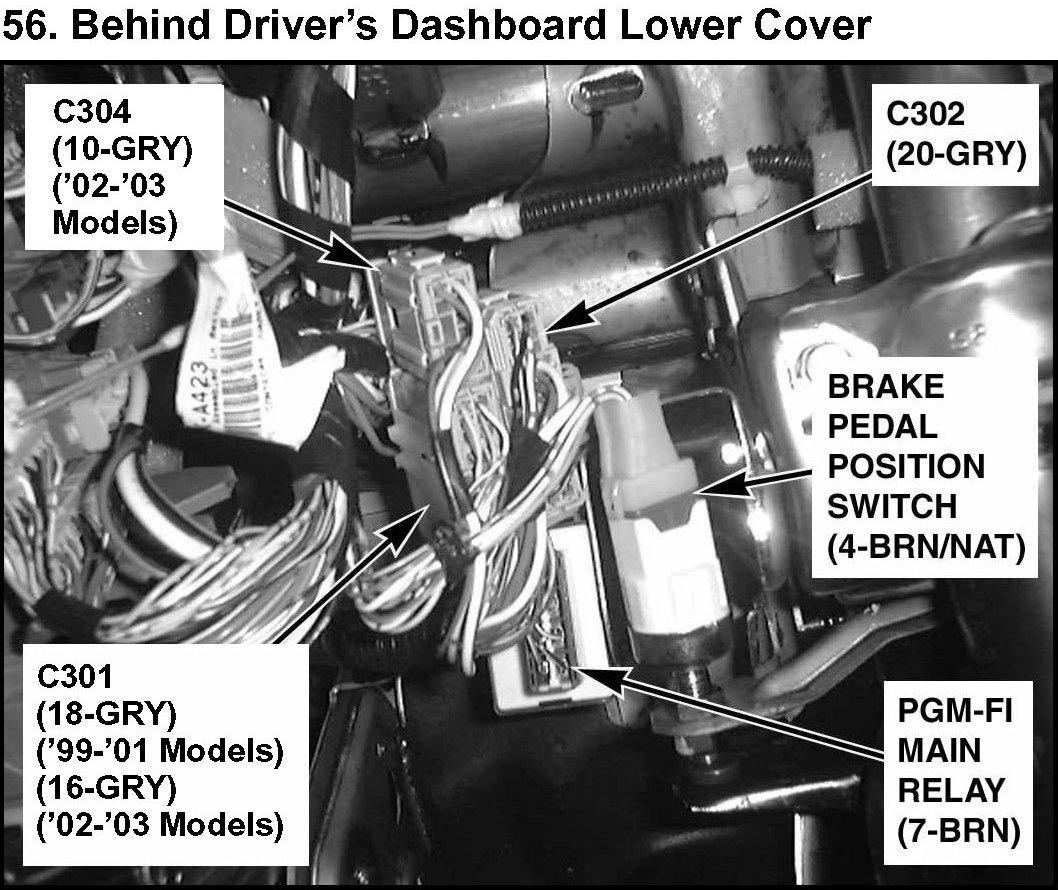

56. Behind Driver's Dashboard Lower Cover:
