Power Window Switch: Locations

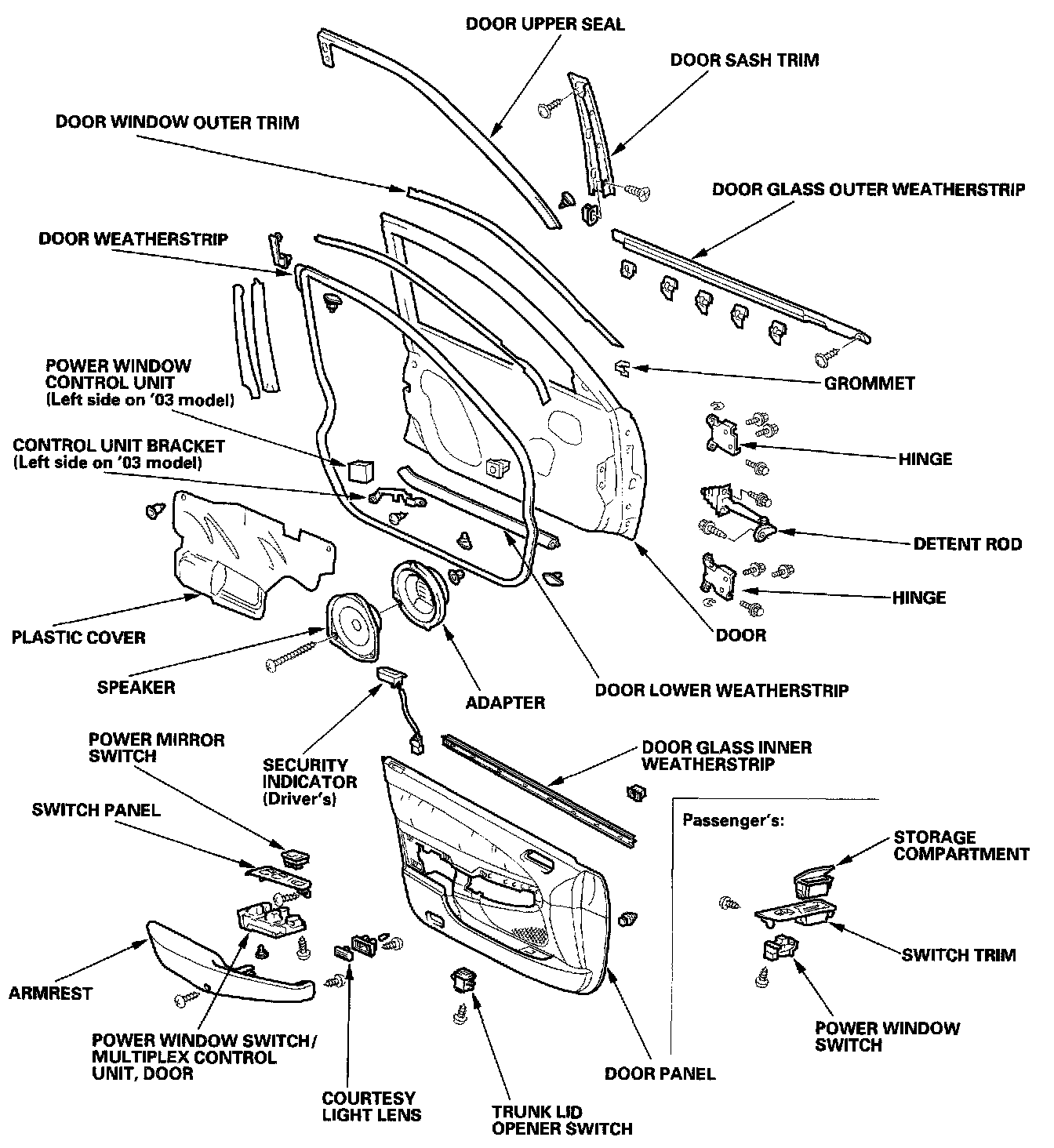

Front Door Component Location Index:

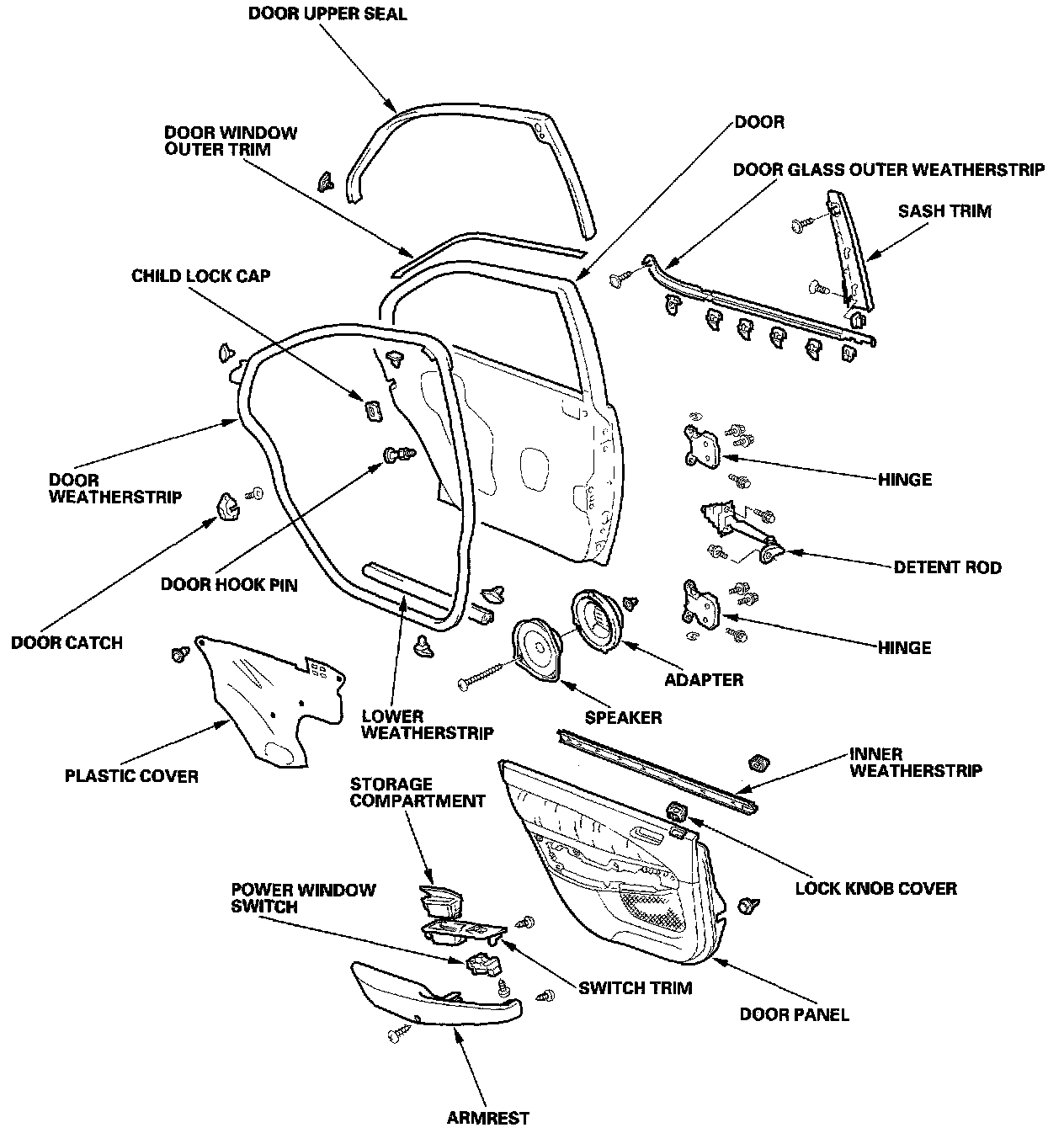

Rear Door Component Location Index:



Power Windows - Component Location Index:

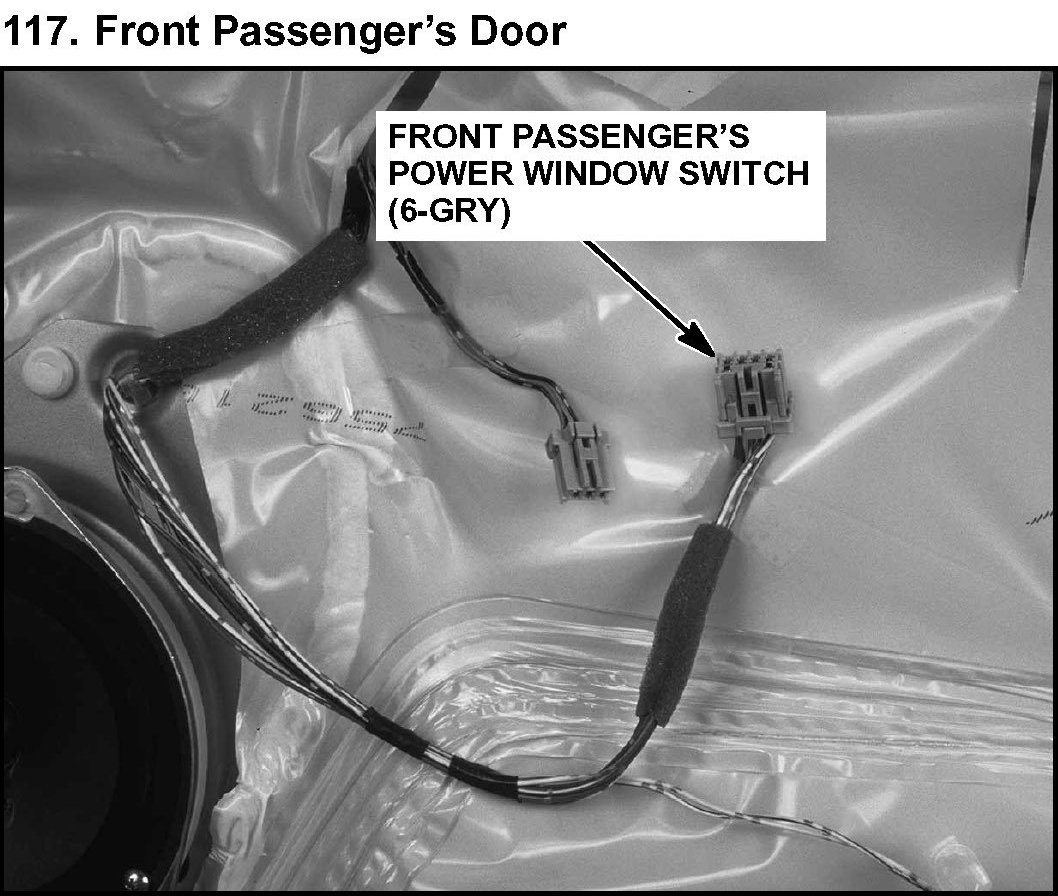

117. Front Passenger's Door:



119. Right Rear Door (Left Similar):
