Crankshaft Position Sensor: Service and Repair

Replacement





1. Turn the crankshaft so that the No. 1 piston is at top dead center.
2. Remove the breather hose and vacuum hoses.
3. Remove the vacuum hoses and ignition control module (ICM) bracket.
4. Remove the upper covers.
5. Remove the timing belt from the right and left camshaft pulleys.
6. Remove the left camshaft pulley.
7. Remove the left back cover.

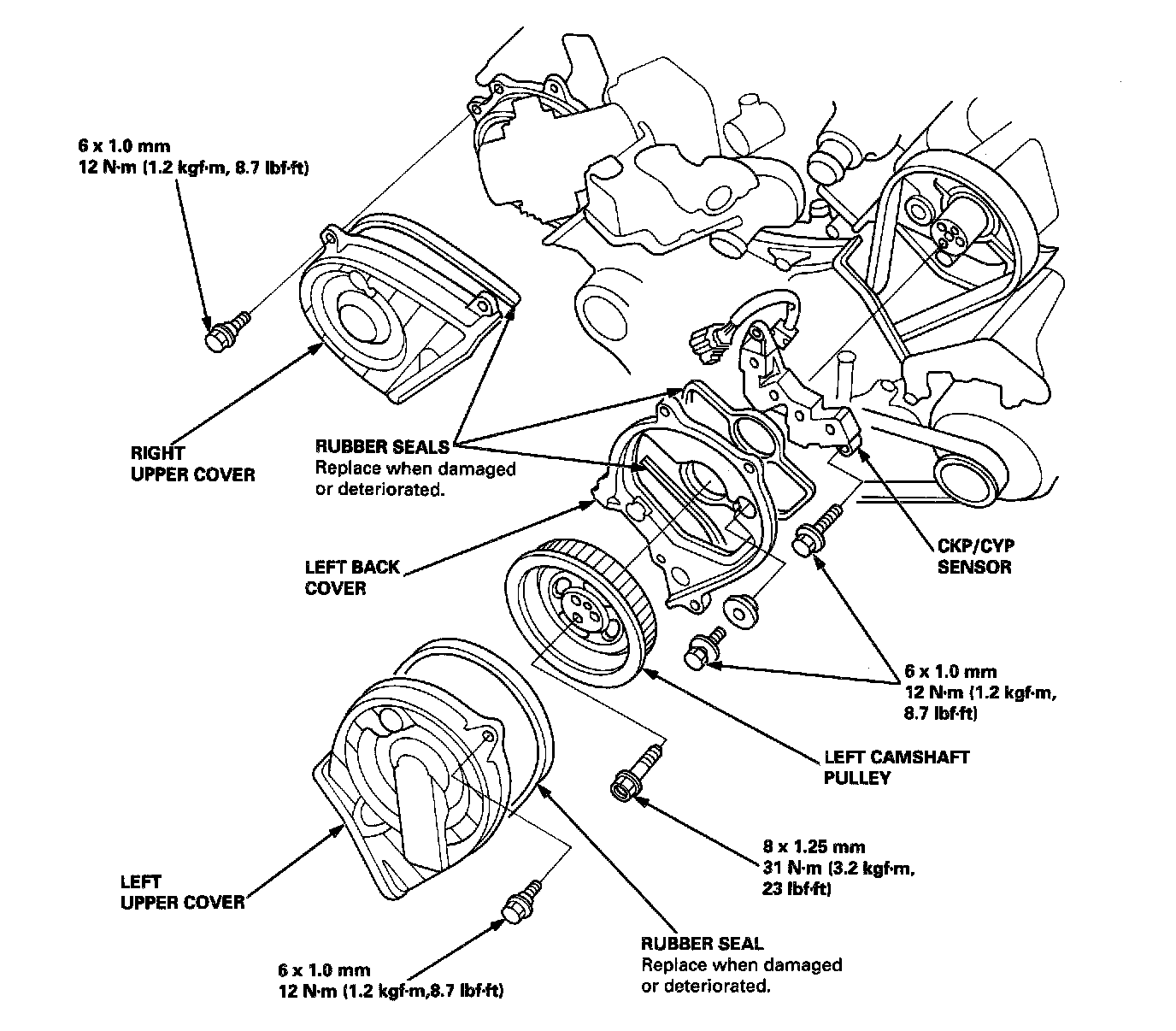

8. Remove the CKP/CYP sensor from the left cylinder head.
9. Install the CKP/CYP sensor in the reverse order of removal.
