Oxygen Sensor: Locations

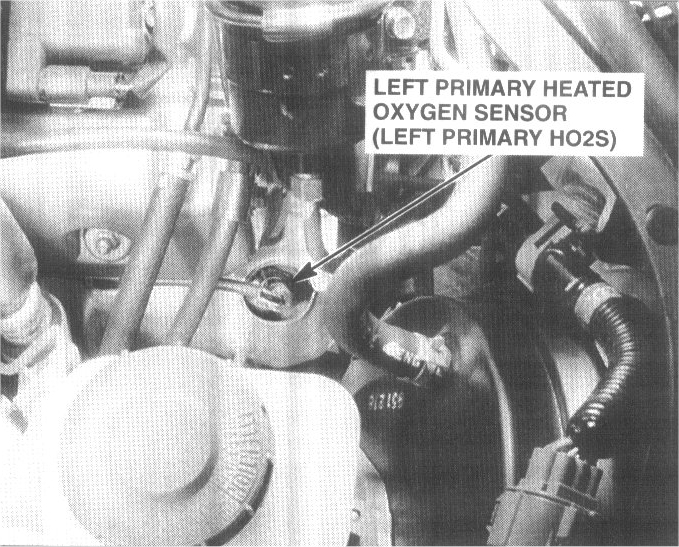

41. Left Rear of Engine Compartment:

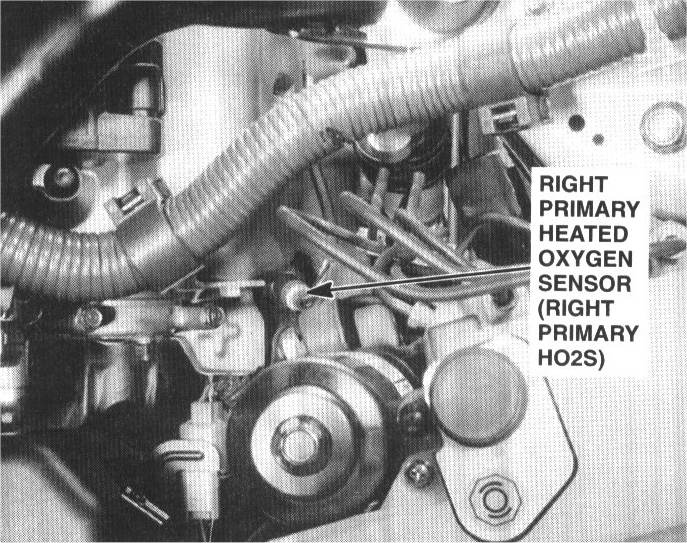

44. Right Rear of Engine Compartment:

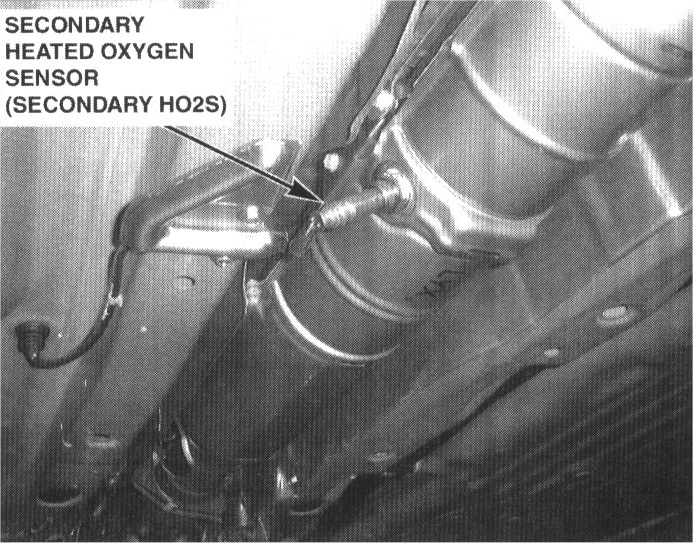

189. At Catalytic Converter ('02-'04):
