Torque Specifications

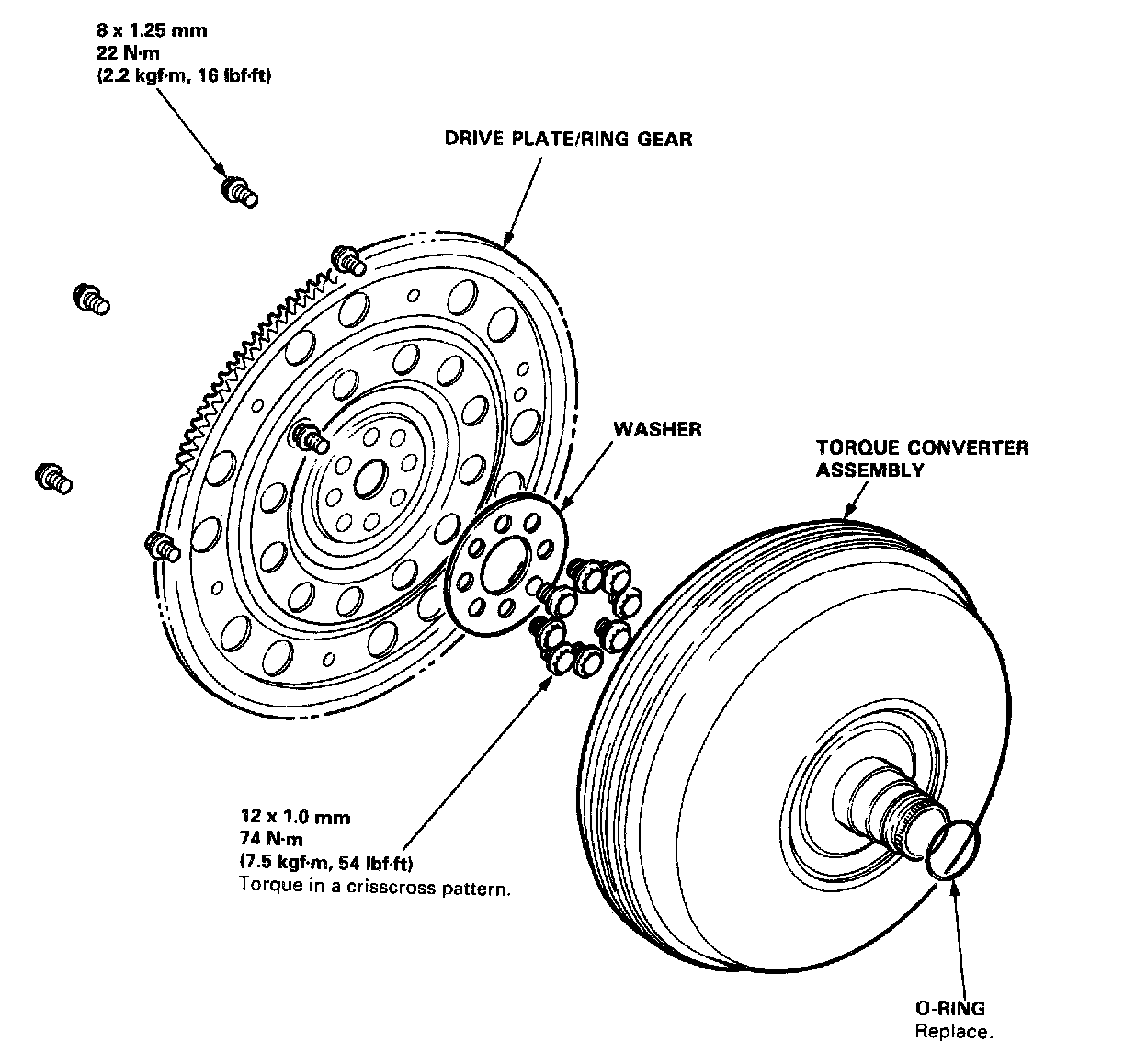

Torque Converter / Flywheel

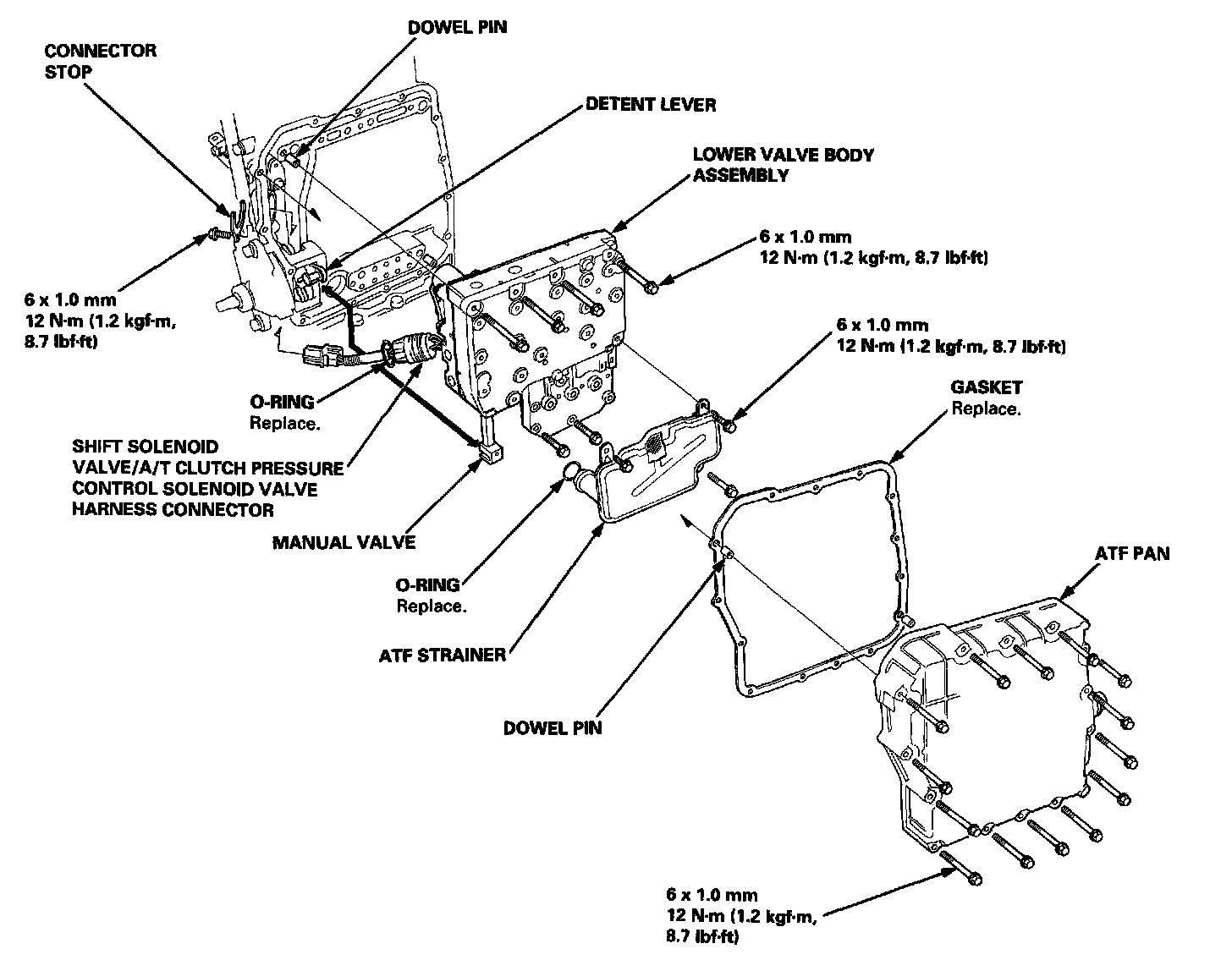

ATF Pan

Note: Please refer to Automatic Transmission/Transaxle, Service and Repair for overhaul and component torque specs.
