Steering Lock Assembly: Removal

Remove the steering column. See appropriate STEERING COLUMN article in STEERING.
File a notch into the shear bolt head.
Set the tip of a chisel in the notch, and loosen the bolt by tapping on the chisel. See Fig 1.
Remove the shear bolt from the switch body.
Insert the ignition key and turn it to ACC position.
Push the lock pin down, and pull out the steering lock body from the steering column. See Fig 2.

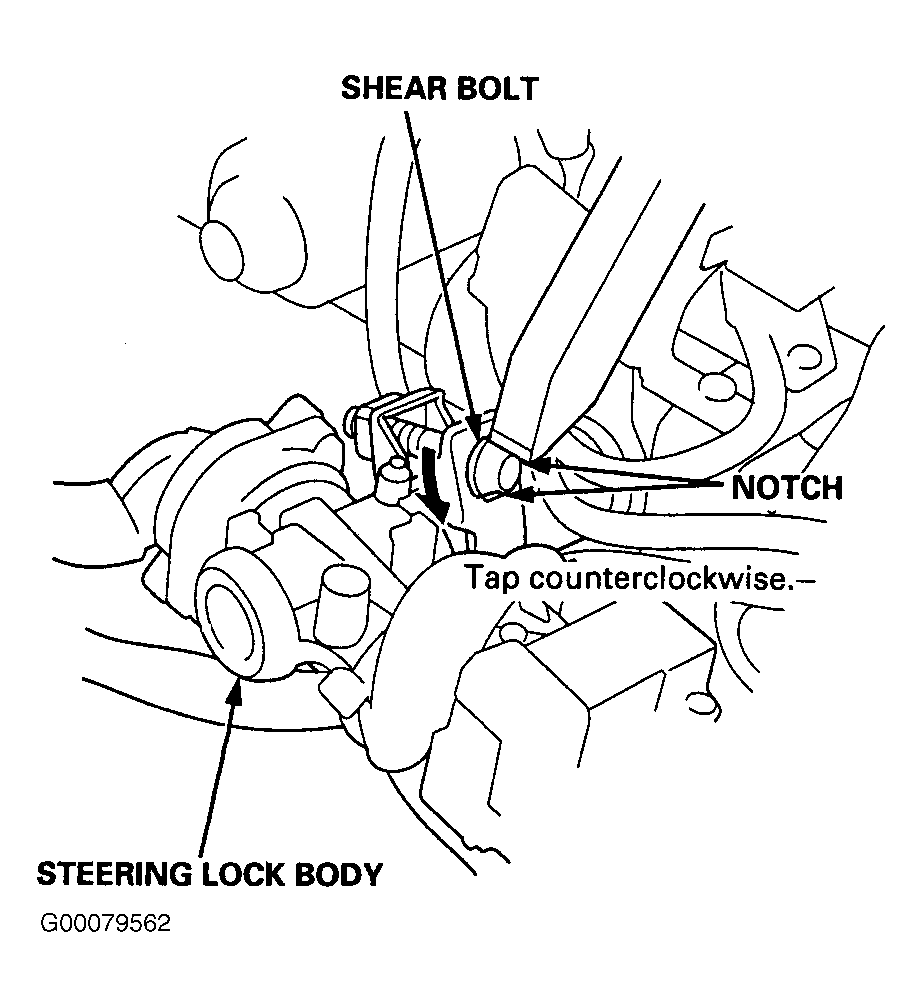

Fig 1: Removing Steering Lock Assembly Shear Bolt

Courtesy of AMERICAN HONDA MOTOR CO., INC.

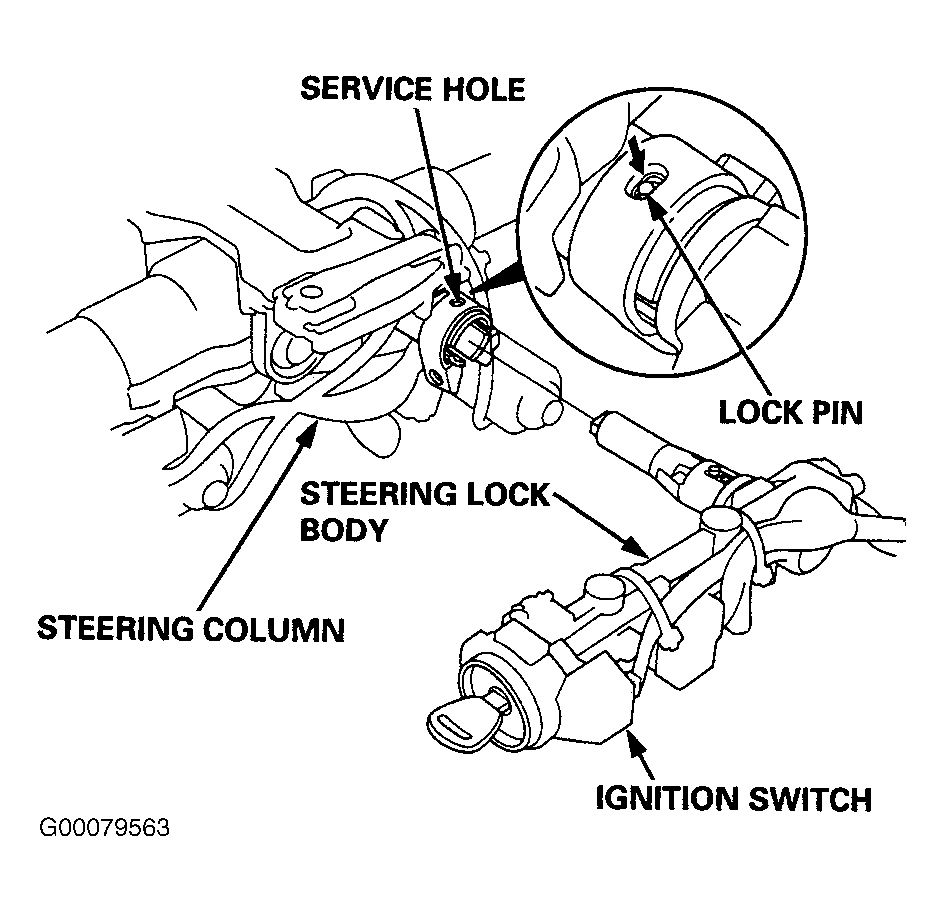

Fig 2: Removing Steering Lock Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
