Keyless Receiver Unit Input Test

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the keyless receiver unit (B).

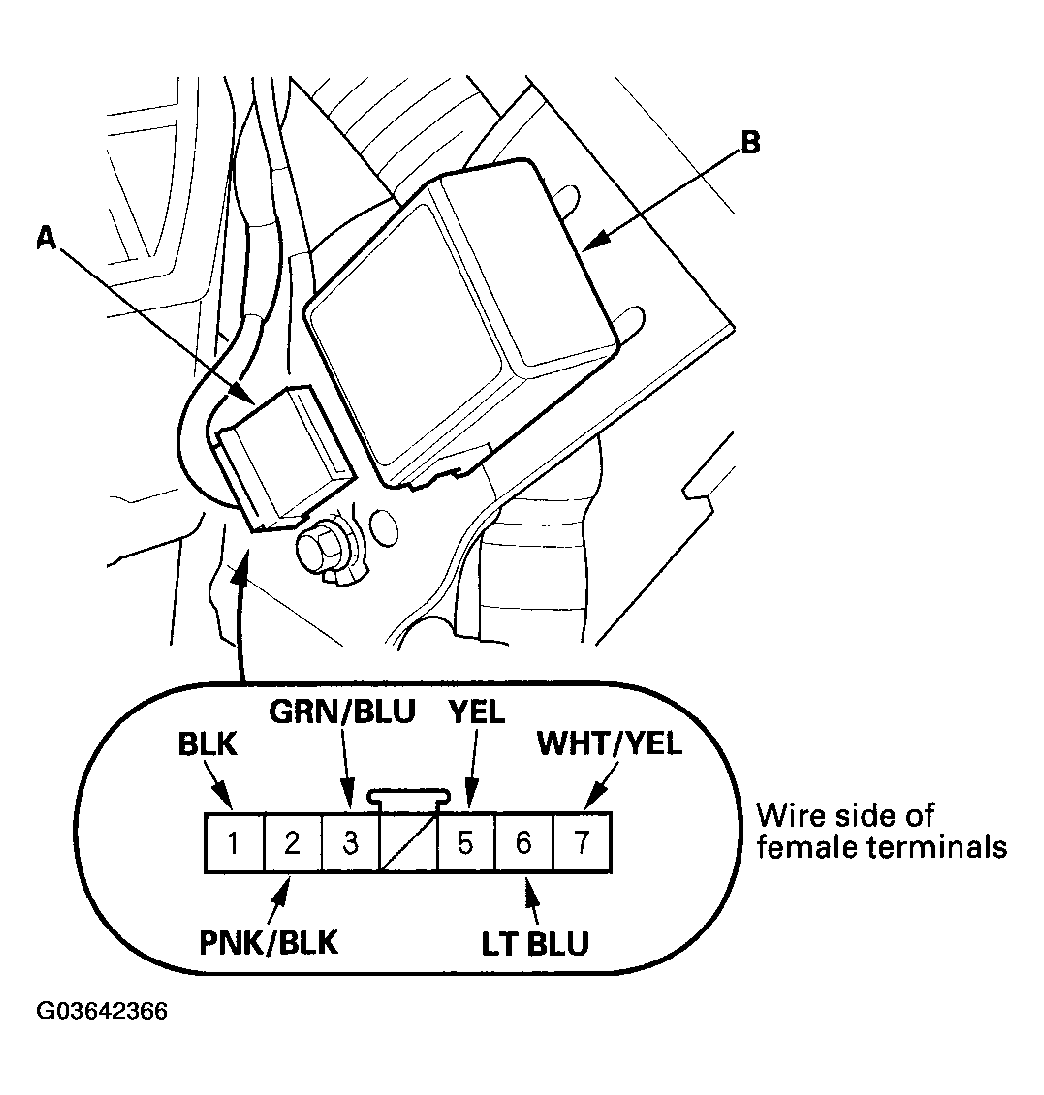

Fig 1: Disconnecting 7P Connector From Keyless Receiver Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.

With the connector still disconnected, make these input tests at the connector.

If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, replace the keyless receiver unit.

KEYLESS RECEIVER UNIT INPUT TEST

Cavity	Wire	Test condition	Test: Desired result	Possible cause if result is not obtained
2	PNK/BLK	Under all conditions	Check for continuity between the No. 2 terminal and driver's multiplex control unit B19 terminal: There should be continuity. There should be no continuity to ground.	An open in the wire Short to ground
3	GRN/BLU	Under all conditions	Check for continuity between the No. 3 terminal and driver's multiplex control unit B18 terminal: There should be continuity. There should be no continuity to ground.	An open in the wire Short to ground
6	LT BLU	Under all conditions	Check for continuity between the No. 6 terminal and driver's multiplex control unit B21 terminal: There should be continuity. There should be no continuity to ground.	An open in the wire Short to ground
1	BLK	Under all conditions	Check for continuity to ground: There should be continuity.	Poor ground (G503) An open in the wire
5	YEL	Ignition switch ON (II)	Check for voltage to ground: There should be battery voltage.	Blown No. 9 (10 A) fuse in the driver's under-dash fuse/relay box An open in the wire
7	WHT/YEL	Under all conditions	Check for voltage to ground: There should be battery voltage.	Blown No. 13 (7.5 A) fuse in the passenger's under-dash fuse/relay box An open in the wire
