Function Diagram

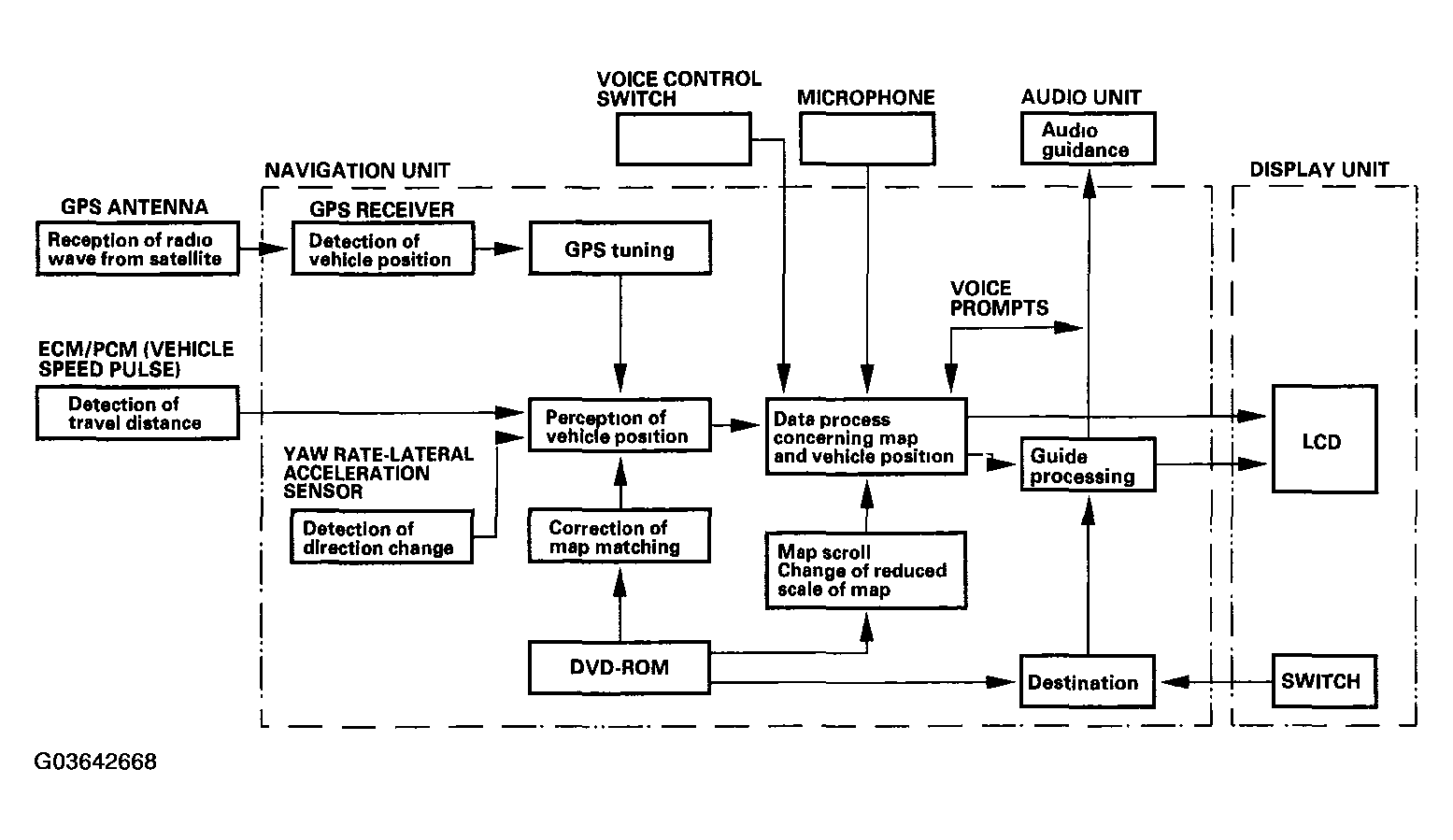

Fig 1: Navigation System Function Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
