LED Indicator Test

Remove the roof console (see FRONT INDIVIDUAL MAP LIGHT TEST ).
Disconnect the 20P connector (A) from the roof console (B).

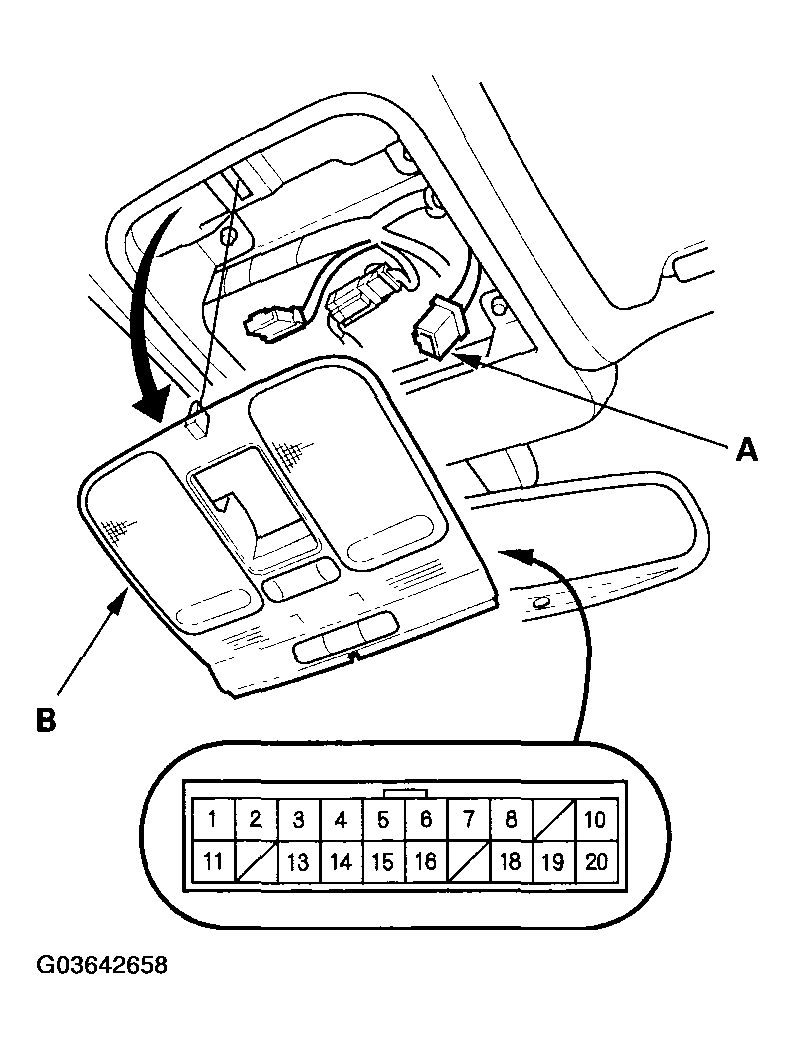

Fig 1: Disconnecting 20P Connector From Roof Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity of the LED between the roof console 20P connector No. 15 (+) and No. 14 (-) terminals, and No. 16 (+) and No. 14 (-) terminals according to Fig 2 .

Fig 2: Checking Continuity Of LED Between Roof Console 20P Connector No. 15 (+) & 14 (-) Terminals And No. 16 (+) & 14 (-) Terminals Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If there is no continuity, replace the roof console.
