System Communication
WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

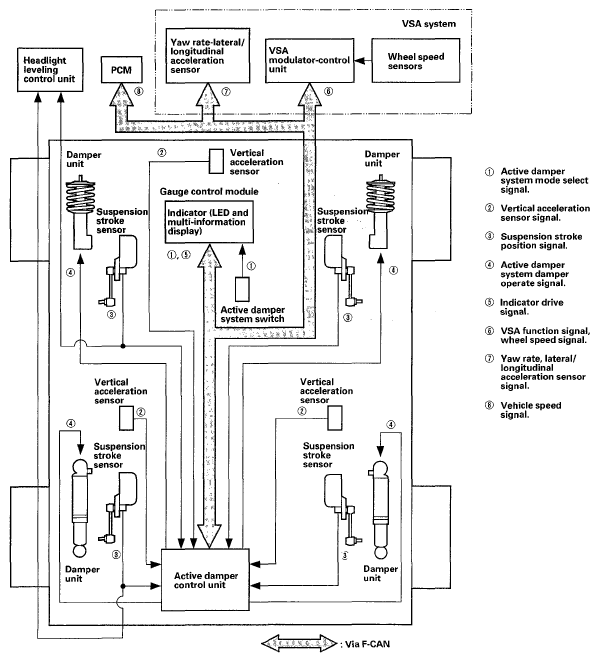

The active damper system has an active damper control unit, four quick-reacting damper units with internal damper coil, three vertical acceleration sensors, four suspension stroke sensors, an active damper system switch, and an active damper system indicator. In addition, the active damper system receives signals from the VSA system, the PCM, and relates information with the headlight leveling control system.
The active damper control unit performs an arithmetical operation from various vehicle conditions pitching, roll, bump, vehicle speed, and driver's mode selection, then selects the most suitable damping characteristics or setting.
