Circuit Diagram
>>
2005-2006 Models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2005-2006 Models

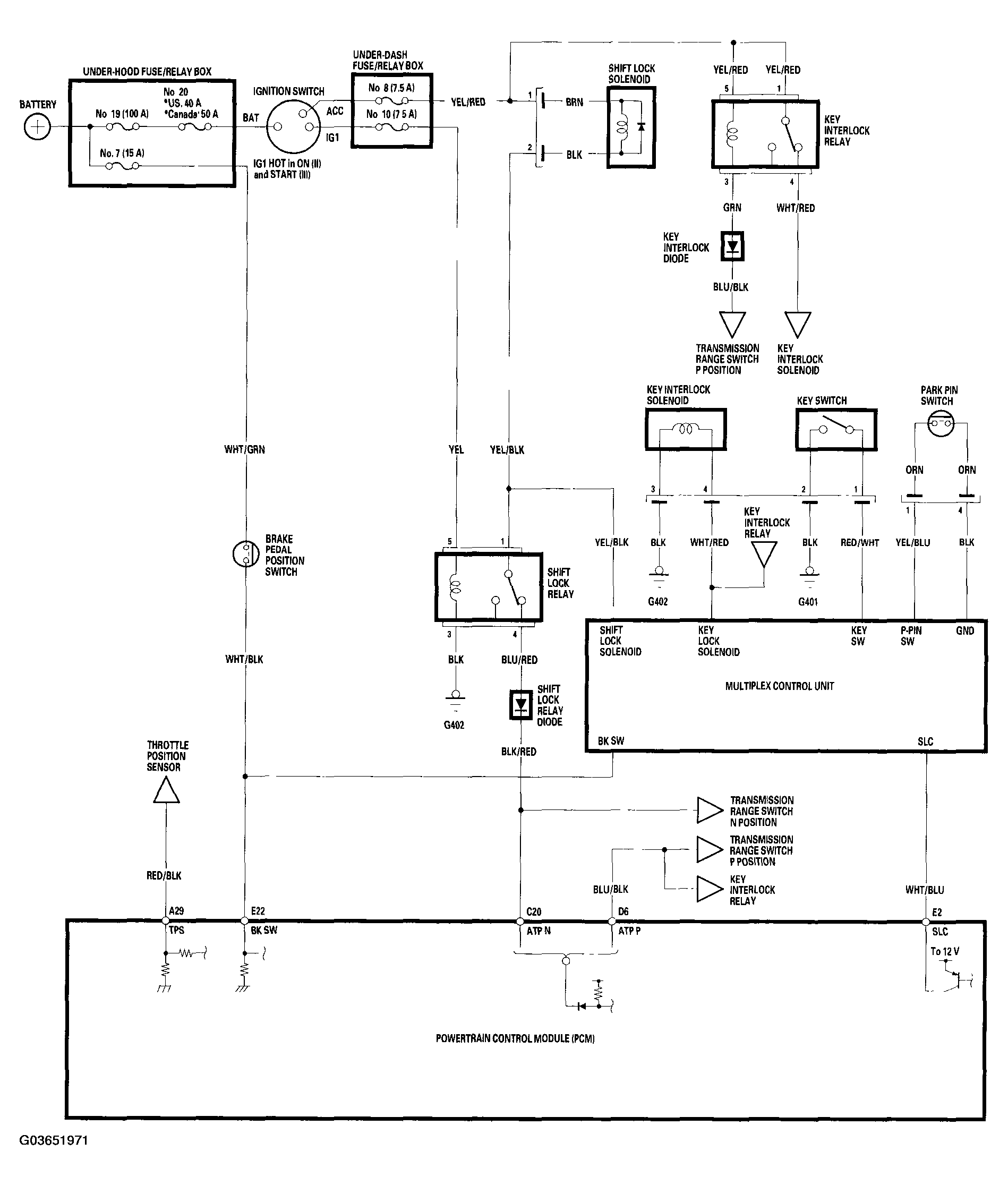

Fig 1: A/T Interlock System Circuit Diagram (2005-2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
